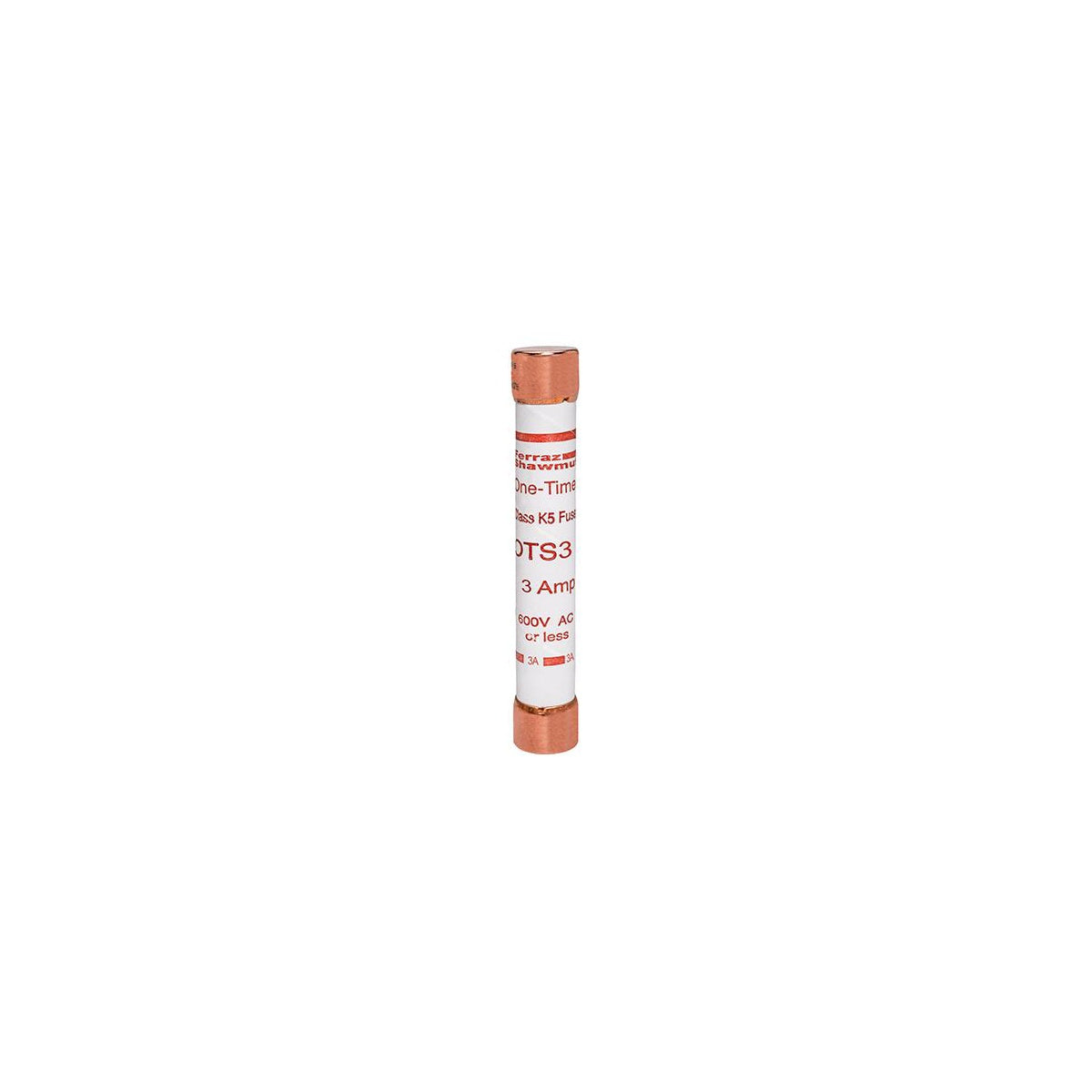

Fuse Amp-Trap® 600V 3A Fast-Acting Class K5 OTS Series
SKU: #196949
Part: #OTS3
UPC: 782001700621
Fuse Amp-Trap® 600V 3A Fast-Acting Class K5 OTS Series
SKU: #196949
Part: #OTS3
UPC: 782001700621
Description
Fuse Amp-Trap® 600V 3A Fast-Acting Class K5 OTS Series Fuse
The Fuse Amp-Trap® 600V 3A Fast-Acting Class K5 OTS Series is designed for low-cost protection of feeders and branch circuits in residential and small commercial electrical installations. Suitable for resistive heating, lighting, and other non-motor loads, this fuse safely interrupts short circuit currents up to 50,000 amperes. It is intended for use by electrical distributors and switchgear suppliers requiring reliable protection components for wire and cable circuits.
Specifications
- Amperage Rating: 3 A
- Voltage Rating: 600 V AC
- Interrupt Rating: 50 kA
- Fuse Class: Class K5
- Dimensions: 5 in length x 0.81 in diameter
- Mounting Type: Clip
- Connection Type: Ferrule
- Insulation Material: Paper
- Product Weight: 0.1100 lbs
Features
- One-time general purpose fuse providing fast-acting protection
- Suitable for feeders and branch circuits serving lighting and resistive heating loads
- Non-rejection fuse; care needed to match interrupting ratings on replacement
- Capable of interrupting short circuit currents up to 50,000 amperes
