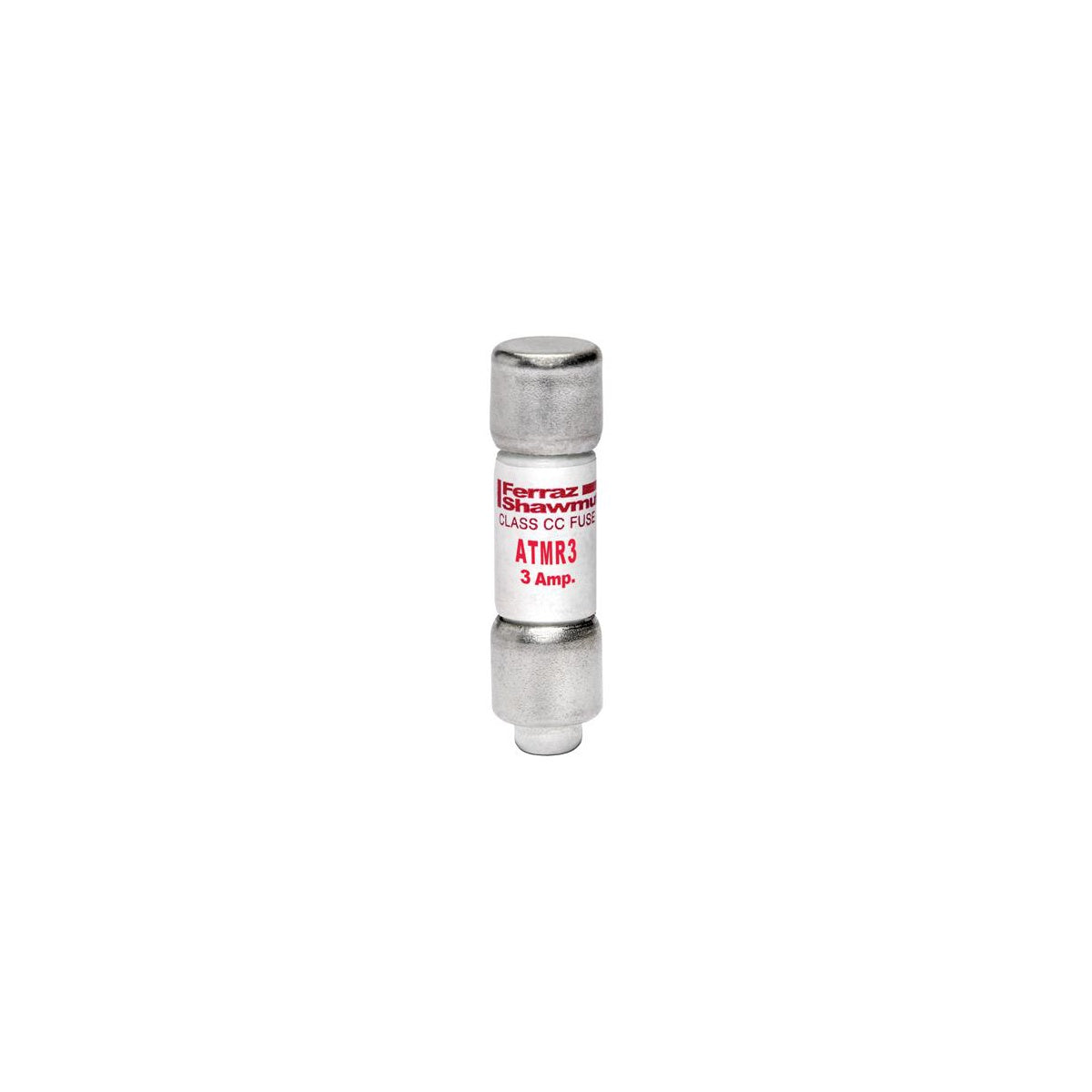

Fuse Amp-Trap® 600V 3A Fast-Acting Class CC ATMR Series
SKU: #195735
Part: #ATMR3
UPC: 782001903862
Fuse Amp-Trap® 600V 3A Fast-Acting Class CC ATMR Series
SKU: #195735
Part: #ATMR3
UPC: 782001903862
Description
Fuse Amp-Trap® 600V 3A Fast-Acting Class CC ATMR Series – Branch Circuit Protection
The Fuse Amp-Trap® 600V 3A Fast-Acting Class CC ATMR Series is designed for economical and reliable protection of control circuits, lighting, general loads, and branch circuit applications. As a product suitable for electrical distributors and switchgear suppliers, this fuse offers current-limiting protection with fast-acting characteristics to safeguard electrical systems where short circuit currents exceed 10,000 amperes. Its compact size and rejection-style design prevent substitution with lower-rated fuses, ensuring correct and safe use in wire and cable installations.
Specifications
- Voltage Rating: 600VAC / DC
- Amperage Rating: 3 A
- Interrupt Rating: 200 kA
- Frequency: 50 hertz
- Fuse Class: Class CC
- Dimensions: Length 1.5 in, Diameter 0.41 in, Width 0.41 in, Height 0.41 in
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: GMG
- Product Weight: 0.0170 lbs
- Manufacturer: Mersen
- Manufacturer Part Number: ATMR3
Features
- Fast-acting fuse providing current-limiting protection
- Smallest dimension 600V fuse suitable for branch circuit protection
- Rejection-style design to prevent replacement errors
- Economical protection for control circuits and control circuit transformers
- Versatile for individual component and branch circuit protection
- UL Listed to Standard 248-4 and CSA Certified to Standard C22.2 No. 248.4
- DC listed to UL Standard 248
