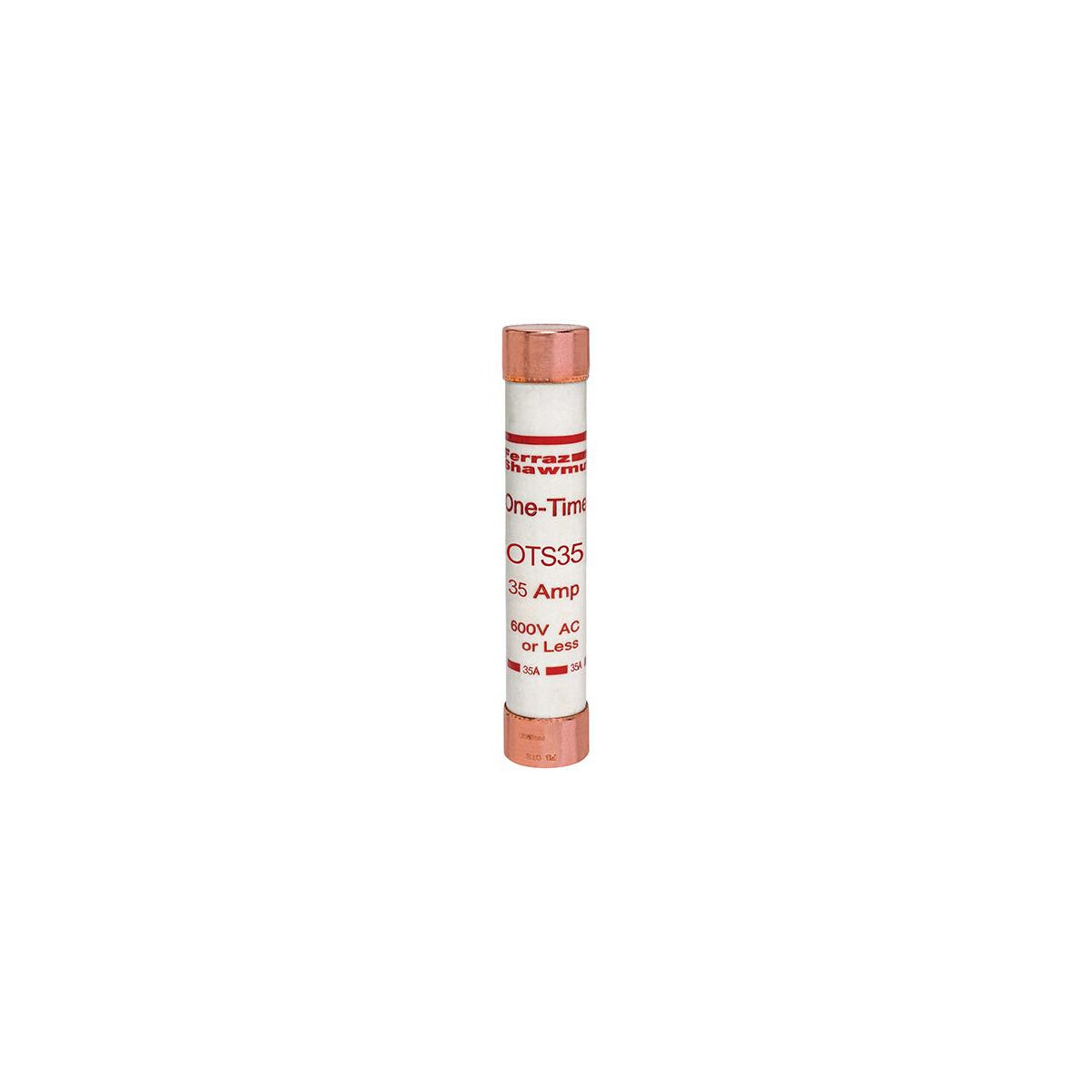

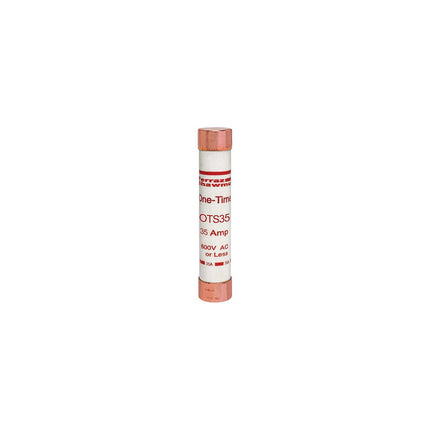

Fuse Amp-Trap® 600V 35A Fast-Acting Class K5 OTS Series Fuse

The Fuse Amp-Trap® 600V 35A Fast-Acting Class K5 OTS Series is designed for low cost, reliable protection of feeders and branch circuits in residential and small commercial installations. This fuse is suitable for use in electrical distribution systems serving lighting, resistive heating, and other non-motor loads. It safely interrupts short circuit currents up to 50,000 amperes, making it a dependable choice for electrical distributors and switchgear suppliers requiring robust wire and cable protection solutions.

Specifications

• Amperage Rating: 35 A
• Voltage Rating: 600 V AC
• Interrupt Rating: 50 kA
• Fuse Class: Class K5
• Dimensions (L x W x H): 5.5 in x 1.06 in x 1.06 in
• Diameter: 1.06 inches
• Weight: 0.2150 lbs
• Connection: Ferrule
• Mounting Type: Clip
• Insulation Material: PolyTube
• Manufacturer Part #: OTS35
• Manufacturer: Mersen
• Application: Feeders, Branch circuits, Resistive heating, Residential and small commercial installations

Features

• One-time OTS general purpose fuse for cost-effective circuit protection
• Fast-acting design for quick interruption of fault currents
• Capable of interrupting available short circuit currents up to 50,000 amperes
• Non-rejection fuse; replacement fuses must have equal or higher interrupting ratings
• Clip mounting for easy installation
• PolyTube insulation for enhanced safety and durability
