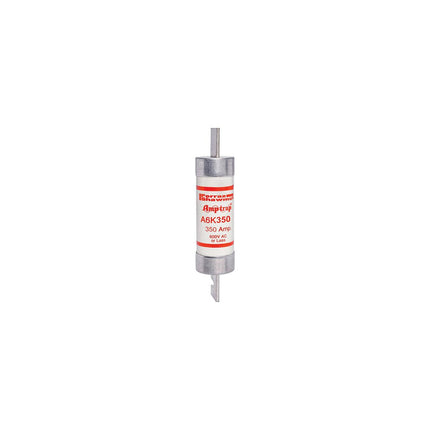

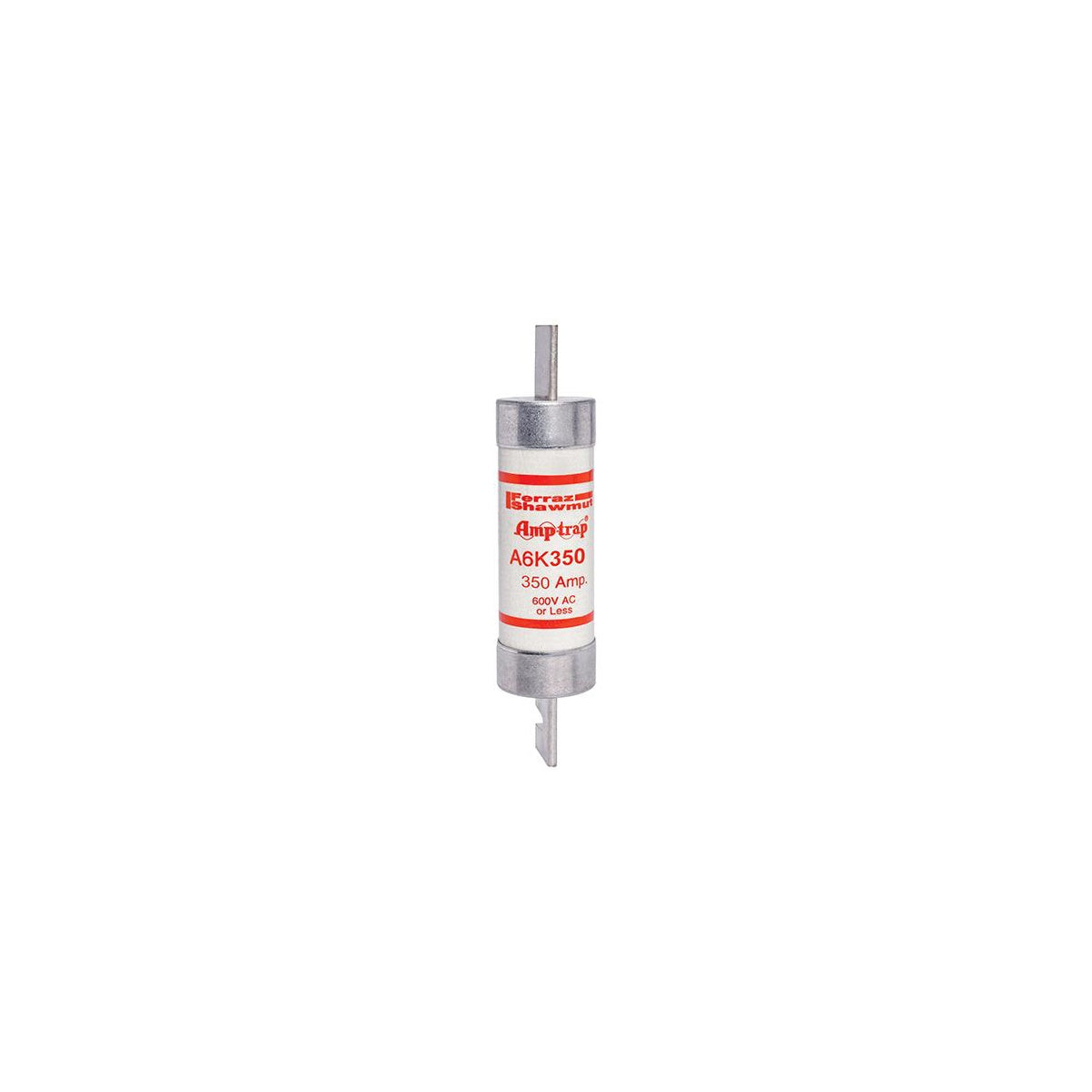

Description
Features
- Rejection style design prevents replacement by other fuse classes
- Fiberglass body provides dimensional stability in harsh industrial environments
- Easy-to-read imprint label for quick recognition and replacement
- High degree of current limitation for low peak let-thru current
Applications
- Load centers
- Panelboards
- Switchboards
- Bus duct
- Feeder circuits
- Non-inductive loads
- Lighting circuits
Approvals & Standards
- UL listed to standard 248-12 File E2137
- CSA certified to standard C22.2 No. 248.12
- Self-certified for DC per UL248
Specifications
- Rated voltage AC UL: 600 V
- Rated voltage DC UL: 300 V
- Ampere Rating: 350 A
- ROHS Compliant: Yes
- Fuse Class: Class RK1
- Speed/Characteristic: Fast-Acting
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 200 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Blade
- Body/Insulating Material: PolyTube
Product Dimensions
- Product Weight: 4.05 lb
- Product Diameter: 2.56 in
- Product Length: 11.63 in
Packaging Dimensions
- Sell Pack Quantity: 1 Each
- Sell Pack Weight: 4.25 lb
- Sell Pack Width: 2.62 in
- Sell Pack Length: 2.62 in
- Sell Pack Height: 11.75 in
Downloads
Spec SheetSpec Sheet FR
Drawings
Curves 1
Curves 2
More Information
Manufacturer Catalog Number
A6K350R
Weight
3.22
Length
11.63
Width
2.56
Height
2.56
Diameter
2.56 inches
Interrupt Rating
200 kA
Mounting Type
Clip
Product Size
11.63 x 2.56 in
Terminal Type
Blade
Type
Class RK1
