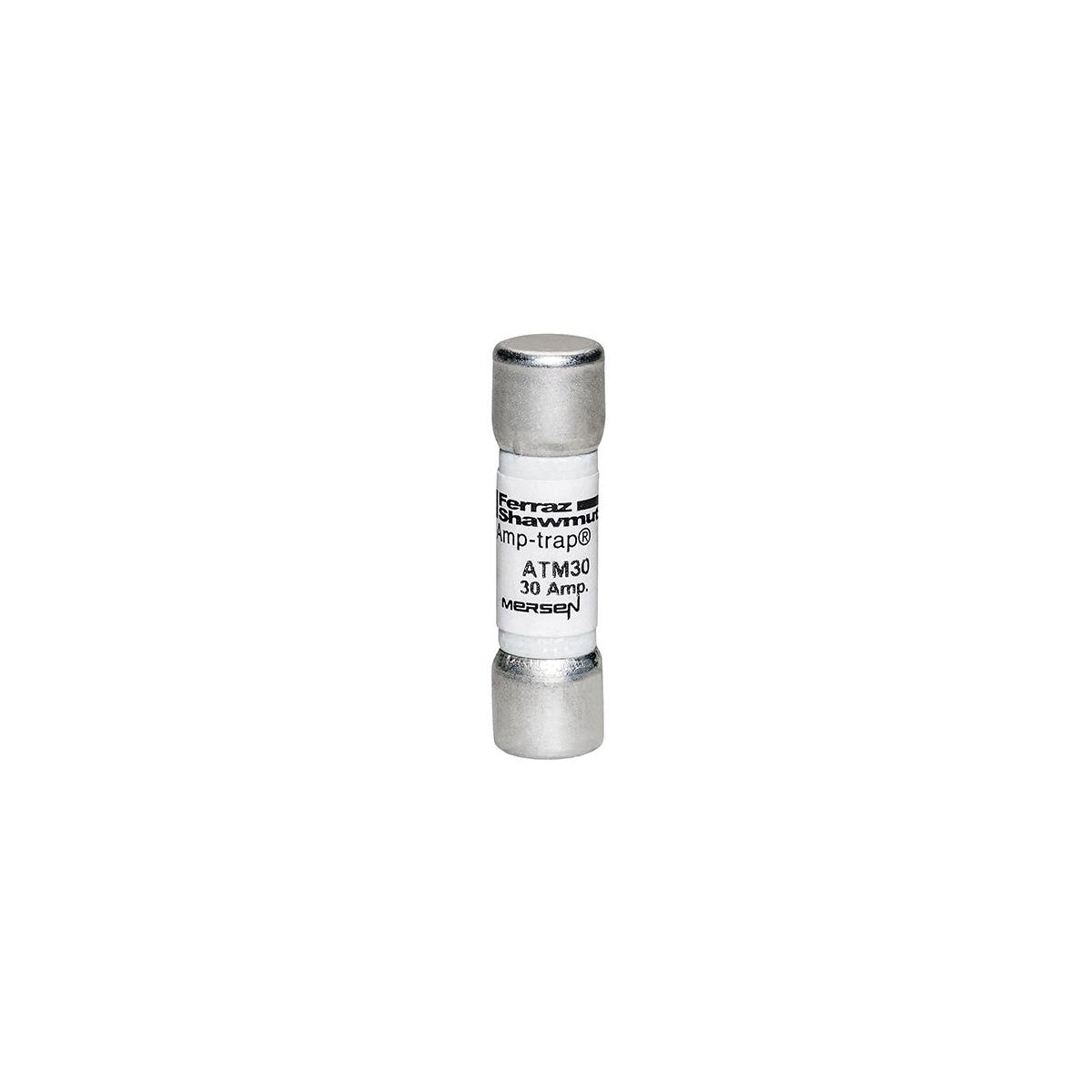

Fuse Amp-Trap® 600V 30A Fast-Acting Midget ATM Series – Electrical Protection Fuse

The Amp-Trap® 600V 30A Fast-Acting Midget ATM Series fuse is designed for supplemental protection of circuits up to 600VAC and 600VDC with a 100kA interrupting rating. This fuse is suitable for applications requiring fast-acting protection such as small motors, transformers, and capacitor circuits with high inrush currents. It is commonly used by electrical distributors and switchgear suppliers as a reliable component in lighting solutions, wire and cable systems, and industrial electrical protection.

Specifications

• Voltage Rating: 600 VAC / DC
• Amperage Rating: 30 A
• Interrupt Rating: 100 kA
• Fuse Class: Midget
• Dimensions: Length 1.5 in, Diameter 0.41 in
• Mounting Type: Clip
• Connection: Ferrule
• Insulation Material: GMG
• Product Weight: 0.0170 lbs
• Manufacturer: Mersen
• Manufacturer Part Number: ATM30

Features

• Fast-acting fuse with high interrupting rating
• Extended ratings for capacitor protection and circuits with high inrush currents
• 600VDC rating suitable for photovoltaic and solar applications
• Compact 1 1/2" x 13/32" (38mm x 10mm) dimensions for space-saving installation
• Compatible with UltraSafe™ fuse holders
