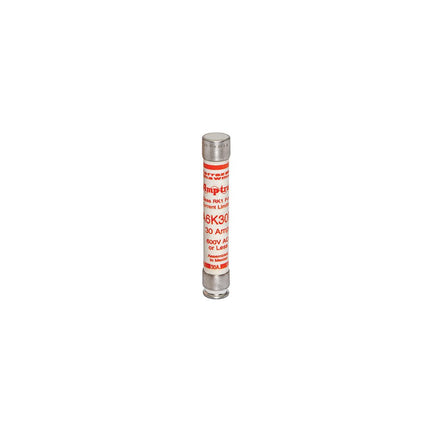

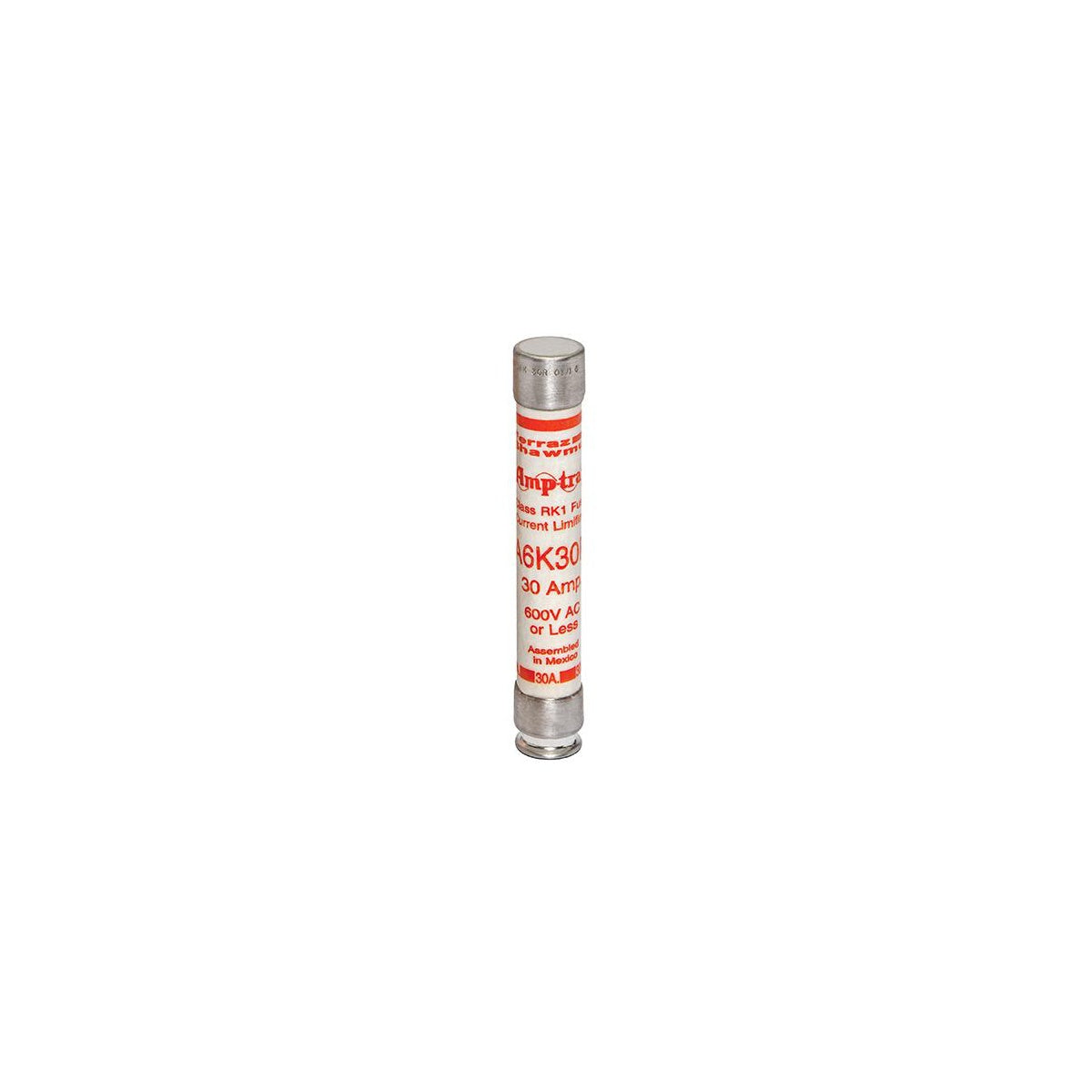

Fuse Amp-Trap® 600V 30A Fast-Acting Class RK1 A6K Series
SKU: #195251
Part: #A6K30R
UPC: 782001915605
Fuse Amp-Trap® 600V 30A Fast-Acting Class RK1 A6K Series
SKU: #195251
Part: #A6K30R
UPC: 782001915605
Description
Fuse Amp-Trap® 600V 30A Fast-Acting Class RK1 A6K Series - Electrical Protection Fuse
The Fuse Amp-Trap® 600V 30A Fast-Acting Class RK1 A6K Series by Mersen is a current-limiting fuse designed for high available short-circuit current protection. Ideal for electrical distributors and switchgear suppliers, it provides fast-acting protection suitable for branch and feeder circuits, load centers, panelboards, switchboards, bus ducts, and lighting circuits. This fuse ensures reliable backup protection for non-inductive loads and lighting circuits within industrial and commercial electrical systems.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: A6K30R
- Amperage Rating: 30 A
- Voltage Rating: 600V AC
- Interrupt Rating: 200 kA
- Fuse Class: Class RK1
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: PolyTube
- Dimensions (L x W x H): 5 in x 0.81 in x 0.81 in
- Diameter: 0.81 inches
- Product Weight: 0.1360 lbs
- Application: Load centers, panelboards, switchboards, bus duct, feeder circuits, non-inductive loads, lighting circuits
Features
- Highly current-limiting for low peak let-thru current
- Fast-acting fuse for quick circuit interruption
- Rejection style design prevents replacement by other fuse classes
- Fiberglass body provides dimensional stability in harsh industrial environments
- Easy-to-read imprint label for quick recognition and replacement
