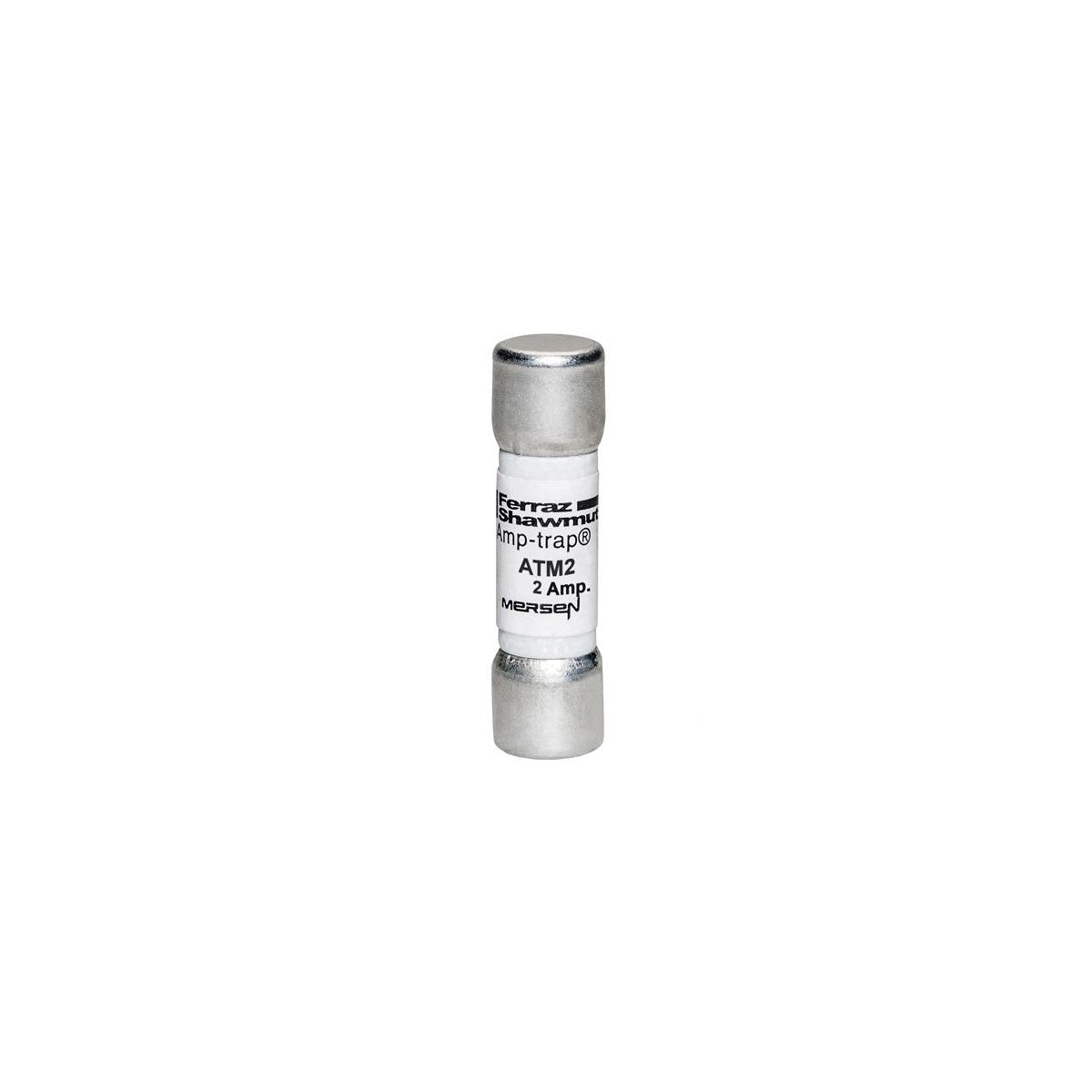

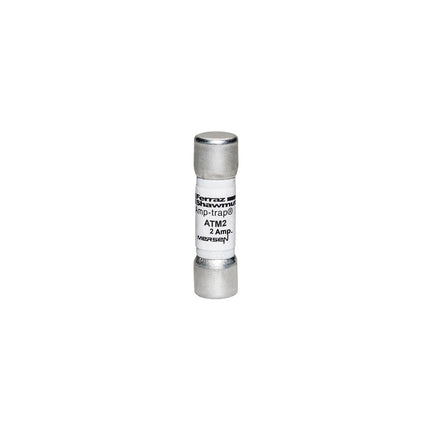

Fuse Amp-Trap® 600V 2A Fast-Acting Midget ATM Series – Electrical Fuse

The Fuse Amp-Trap® 600V 2A Fast-Acting Midget ATM Series is designed for supplemental protection of circuits up to 600VAC and 600VDC, with a 100kA interrupting rating. This fast-acting fuse is suitable for applications requiring high interrupting capacity and reliable protection, commonly used by electrical distributors and switchgear suppliers in lighting solutions, wire and cable systems, and other electrical installations.

Specifications

• Voltage Rating: 600 volts AC/DC
• Amperage Rating: 2 A
• Interrupt Rating: 100 kA
• Fuse Class: Midget
• Dimensions: 1.5 in length × 0.41 in diameter
• Mounting Type: Clip
• Connection Type: Ferrule
• Insulation Material: GMG
• Product Weight: 0.0170 lbs
• Manufacturer Part #: ATM2
• UPC: 782001900786

Features

• Fast-acting fuse with high interrupting rating of 100kA for enhanced circuit protection
• Rated for both AC and DC voltage applications up to 600 volts
• Compact midget size suitable for applications requiring space-saving fuse solutions
• Capable of withstanding higher inrush currents and tougher duty cycles compared to standard 30A midget fuses
• Designed specifically for supplemental protection, not intended for branch circuit protection
