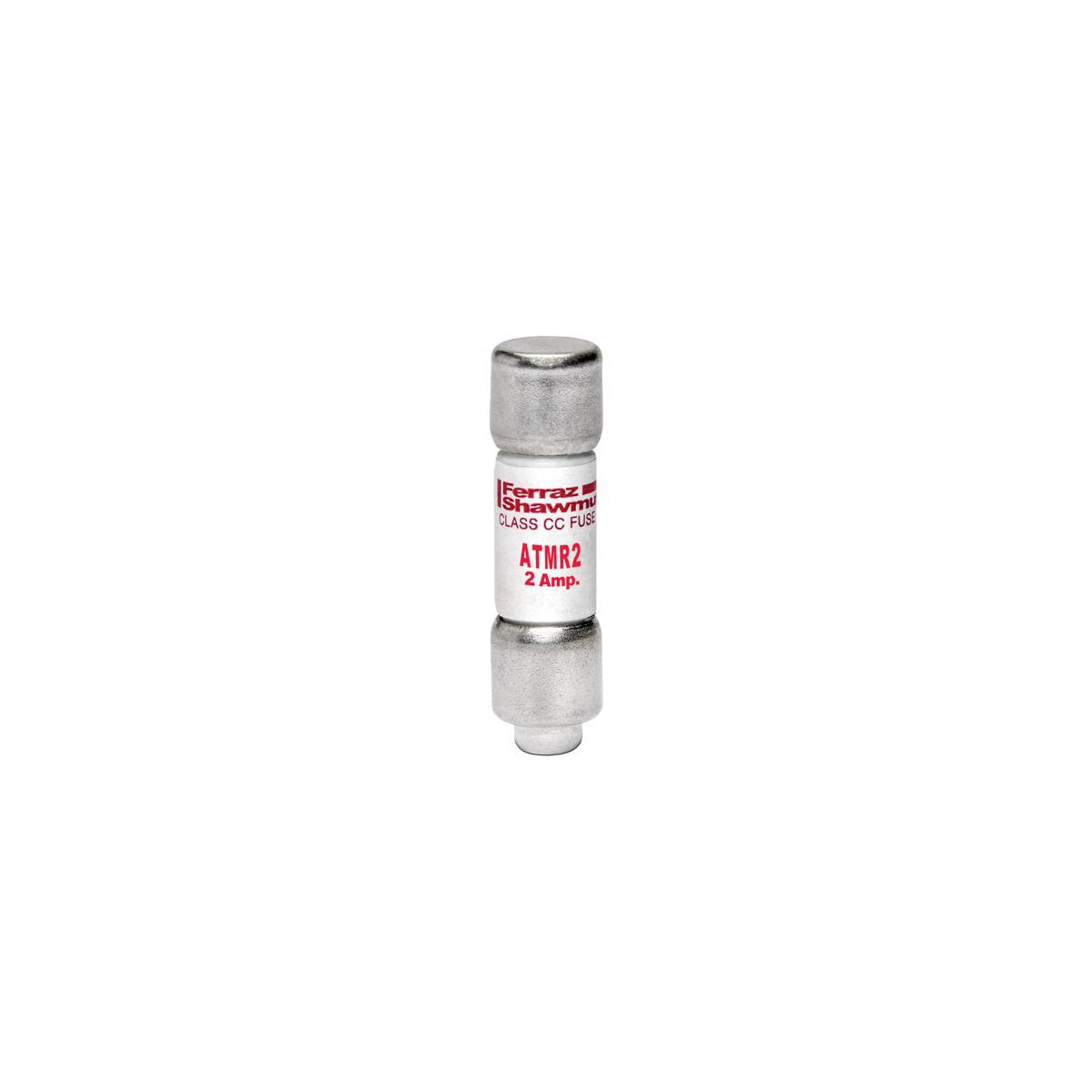

Fuse Amp-Trap® 600V 2A Fast-Acting Class CC ATMR Series

The Fuse Amp-Trap® 600V 2A Fast-Acting Class CC ATMR Series is designed for branch circuit protection in control circuits, lighting, and general loads. This fuse provides current-limiting protection and is suitable for use in electrical distribution and lighting solutions where short circuit currents exceed 10,000 amperes. Manufactured by Mersen, it features a compact size and rejection-style design to prevent substitution with lower-rated fuses, making it a reliable component for wire and cable protection in switchgear applications.

Specifications

• Voltage Rating: 600 VAC/DC
• Amperage Rating: 2 A
• Interrupt Rating: 200 kA
• Frequency: 50 hertz
• Fuse Class: Class CC
• Dimensions: Length 1.5 in, Diameter 0.41 in, Width 0.41 in, Height 0.41 in
• Mounting Type: Clip
• Connection Type: Ferrule
• Insulation Material: GMG
• Product Weight: 0.0170 lbs

Features

• Fast-acting fuse providing quick response to overcurrent conditions
• Very current-limiting to reduce damage to electrical equipment
• Smallest dimension 600V fuse suitable for branch circuit protection
• Rejection-style design prevents substitution by lesser rated fuses
• Economical protection for control circuits and control circuit transformers
• UL Listed to Standard 248-4 and CSA Certified to Standard C22.2 No. 248.4
