Description

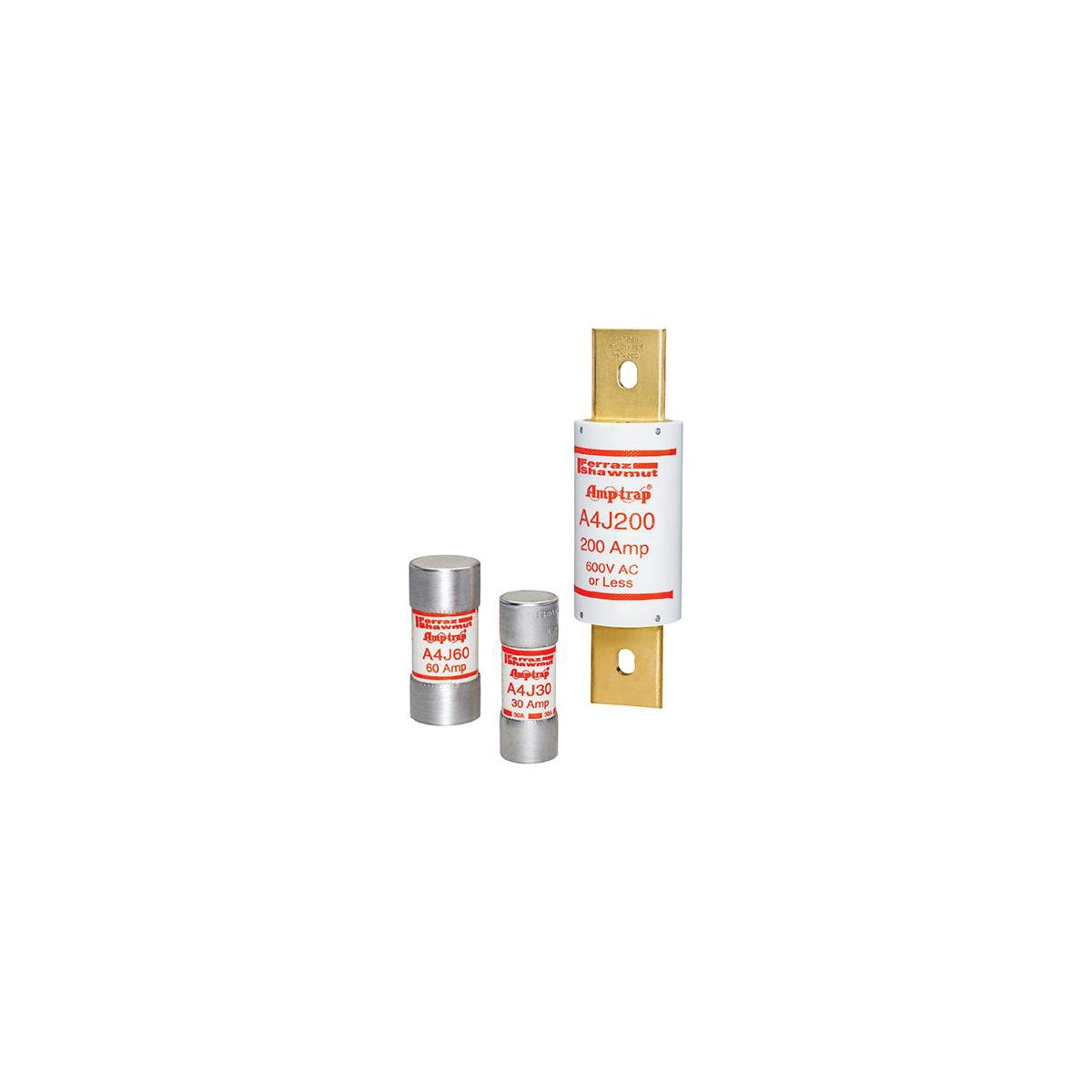

Fuse Amp-Trap® 600V 25A Fast-Acting Class J A4J Series
The Amp-Trap® A4J Series fast-acting Class J fuses provide excellent current-limiting protection for a broad range of electrical applications. Designed specifically for use in capacitors, load centers, panelboards, switchboards, bus ducts, feeder circuits, circuit breakers, and lighting, heating, and general loads, these fuses ensure reliable performance in industrial and commercial electrical distribution systems. As a product offered by a trusted electrical distributor and switchgear supplier, the A4J fuses are engineered to prevent substitution with lower-rated fuses, maintaining system safety and integrity.
Specifications
- Voltage Rating: 600 VAC, 300 VDC
- Amperage Rating: 25 A
- Interrupt Rating: 200 kA
- Fuse Class: Class J
- Dimensions: Length 2.25 in, Diameter 0.81 in, Width 0.81 in, Height 0.81 in
- Connection: Ferrule
- Mounting Type: Clip
- Insulation Material: PolyTube
- Product Weight: 0.0970 lbs
- Manufacturer: Mersen
- Manufacturer Part Number: A4J25
Features
- High current limitation for low peak let-thru current
- Unique dimensions prevent replacement by other fuse classes
- Fiberglass body provides dimensional stability in harsh industrial environments
- Easy-to-read imprint label for quick recognition and replacement
- Fast-acting and very current-limiting
- UL and CSA listed for safety and compliance
