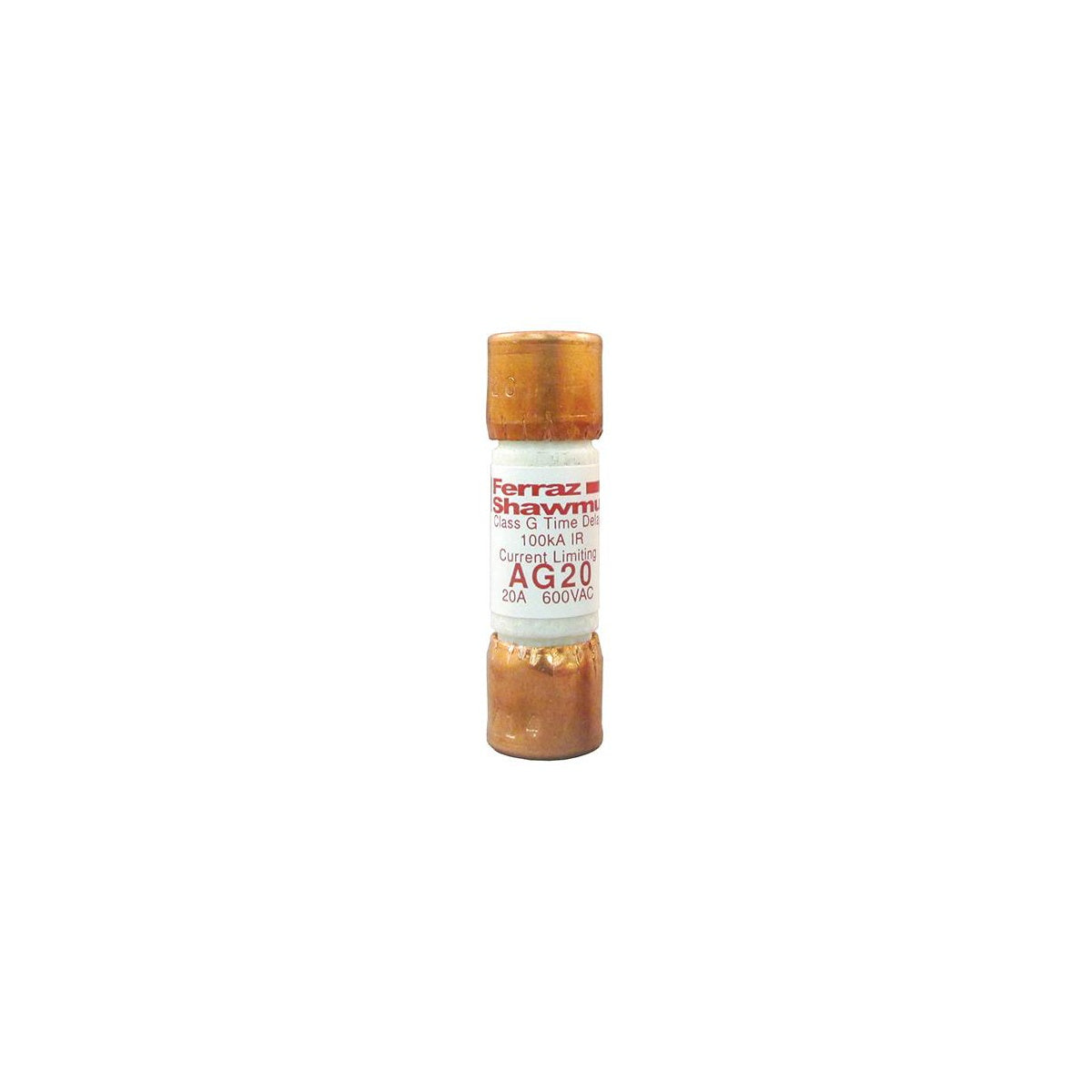

Fuse Amp-Trap® 600V 20A Time-Delay Class G AG Series
SKU: #195366
Part: #AG20
UPC: 782001905156
Fuse Amp-Trap® 600V 20A Time-Delay Class G AG Series
SKU: #195366
Part: #AG20
UPC: 782001905156
Description
Fuse Amp-Trap® 600V 20A Time-Delay Class G AG Series
The Mersen Amp-Trap AG fuse series offers UL Listed Class G time-delay fuses designed for branch-circuit protection in lighting, heating, and appliance applications. This 20A, 600V fuse is suitable for electrical distributors and switchgear suppliers requiring reliable current-limiting protection with a high interrupt rating. Its clip mounting and ferrule connection facilitate secure installation in industrial and commercial settings.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: AG20
- Fuse Class: Class G
- Amperage Rating: 20 A
- Voltage Rating: 600 VAC
- Interrupt Rating: 100 kA
- Dimensions (L x W x H): 1.41 in x 0.41 in x 0.41 in
- Diameter: 0.41 inches
- Mounting Type: Clip
- Connection Type: Ferrule
- Insulation Material: GMG
- Product Weight: 0.0160 lbs
Features
- Time-delay characteristic for currents above 5A
- Current-limiting design to reduce electrical stress
- Fiberglass body for dimensional stability in harsh industrial environments
- Four unique sizes from ½ to 60 amperes to prevent interchangeability with other fuse classes
- UL Listed to standard 248-5 and CSA certified to C22.2 No. 248.5
