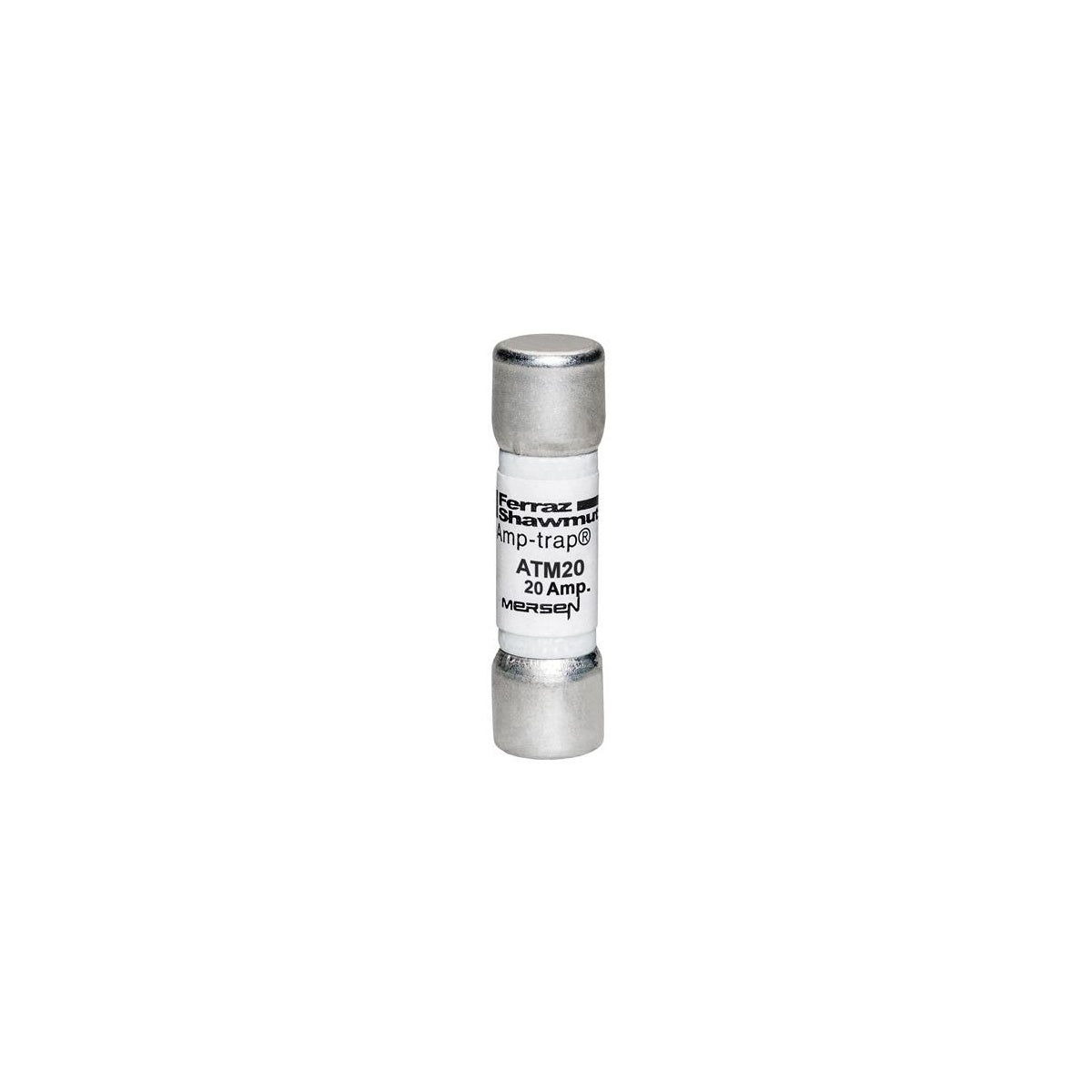

Fuse Amp-Trap® 600V 20A Fast-Acting Midget ATM Series - Electrical Fuse

The Fuse Amp-Trap® 600V 20A Fast-Acting Midget ATM Series is designed for supplemental protection of circuits up to 600VAC and 600VDC with a 100kA interrupting rating. This fast-acting fuse is suitable for a variety of applications including small motors, transformers, and circuits with high inrush currents. It is a reliable component for electrical distributors, lighting solutions, wire and cable systems, and switchgear suppliers requiring robust circuit protection.

Specifications

• Voltage Rating: 600 volts AC/DC
• Amperage Rating: 20 A
• Interrupt Rating: 100 kA
• Fuse Class: Midget
• Dimensions: Length 1.5 in, Diameter 0.41 in, Width 0.41 in, Height 0.41 in
• Connection Type: Ferrule
• Mounting Type: Clip
• Insulation Material: GMG
• Product Weight: 0.0170 lbs
• Manufacturer Part Number: ATM20
• Manufacturer: Mersen

Features

• Fast-acting fuse for rapid circuit protection
• Rated for supplemental protection of small motors and transformers
• Extended ratings for capacitor protection and circuits with high inrush currents
• 600VDC rating suitable for photovoltaic and solar applications
• Compatible with UltraSafe™ fuse holders
• Compact 1 1/2" x 13/32" (38mm x 10mm) dimensions
