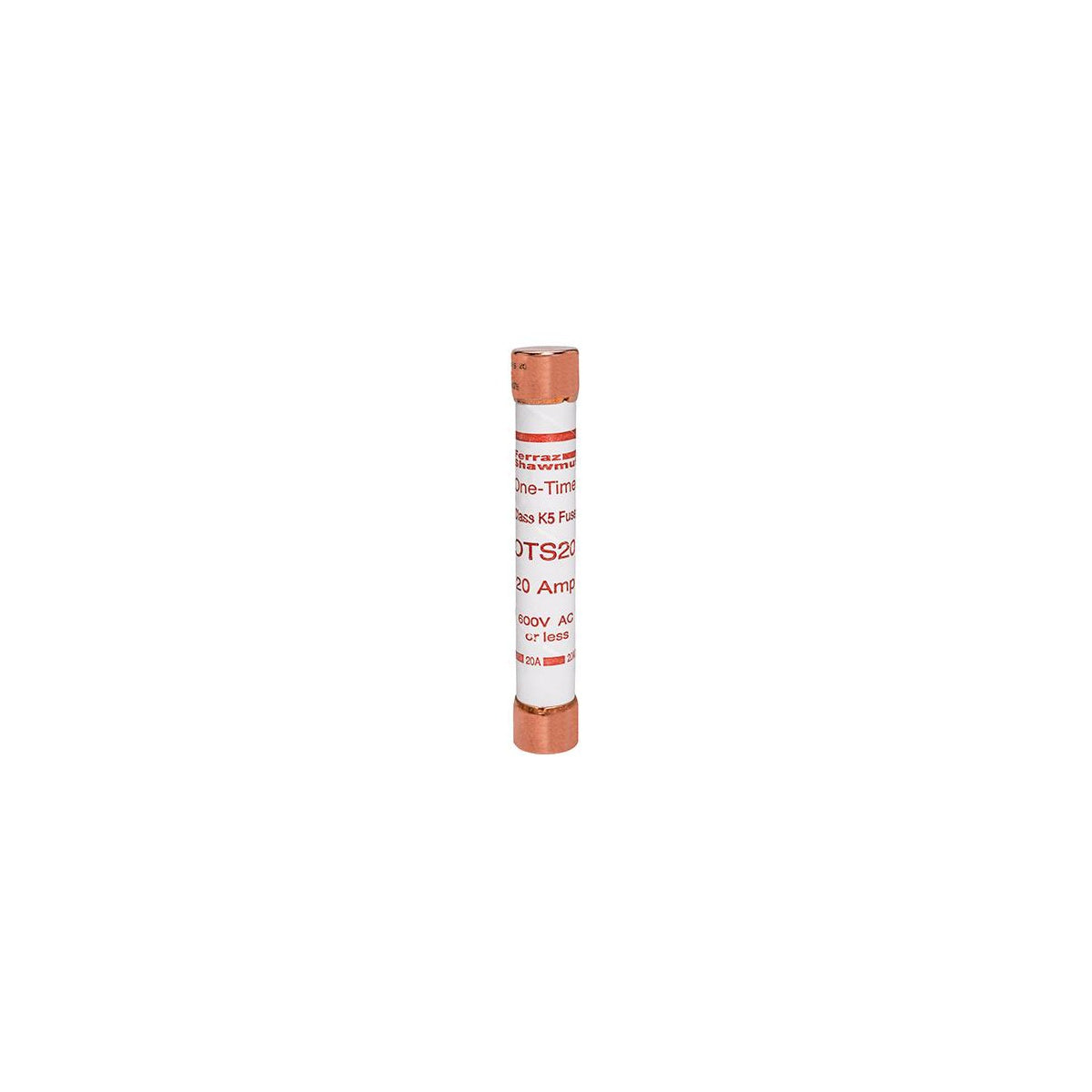

Fuse Amp-Trap® 600V 20A Fast-Acting Class K5 OTS Series
SKU: #196929
Part: #OTS20
UPC: 782001700720
Fuse Amp-Trap® 600V 20A Fast-Acting Class K5 OTS Series
SKU: #196929
Part: #OTS20
UPC: 782001700720
Description
Fuse Amp-Trap® 600V 20A Fast-Acting Class K5 OTS Series Fuse
The Fuse Amp-Trap® 600V 20A Fast-Acting Class K5 OTS Series is designed for low-cost protection of feeder and branch circuits in residential and small commercial installations. It is suitable for electrical distributors and lighting solutions requiring reliable interruption of short circuit currents in wire and cable systems. This fuse is intended for use with resistive heating, lighting, and other non-motor loads, providing fast-acting protection with a high interrupt rating.
Specifications
- Amperage Rating: 20 A
- Voltage Rating: 600 V AC
- Interrupt Rating: 50 kA
- Fuse Class: Class K5
- Dimensions: 5 in length, 0.81 in diameter (height and width 0.81 in)
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: Paper
- Product Weight: 0.11 lb
- Manufacturer: Mersen
- Manufacturer Part Number: OTS20
- Application: Feeders, branch circuits, resistive heating, residential and small commercial installations
Features
- One-time general purpose fuse for cost-effective circuit protection
- Fast-acting fuse design for rapid interruption of faults
- Safe interruption of short circuit currents up to 50,000 amperes
- Non-rejection fuse; replacement fuses must match or exceed original interrupt rating
- Clip mounting for easy installation
