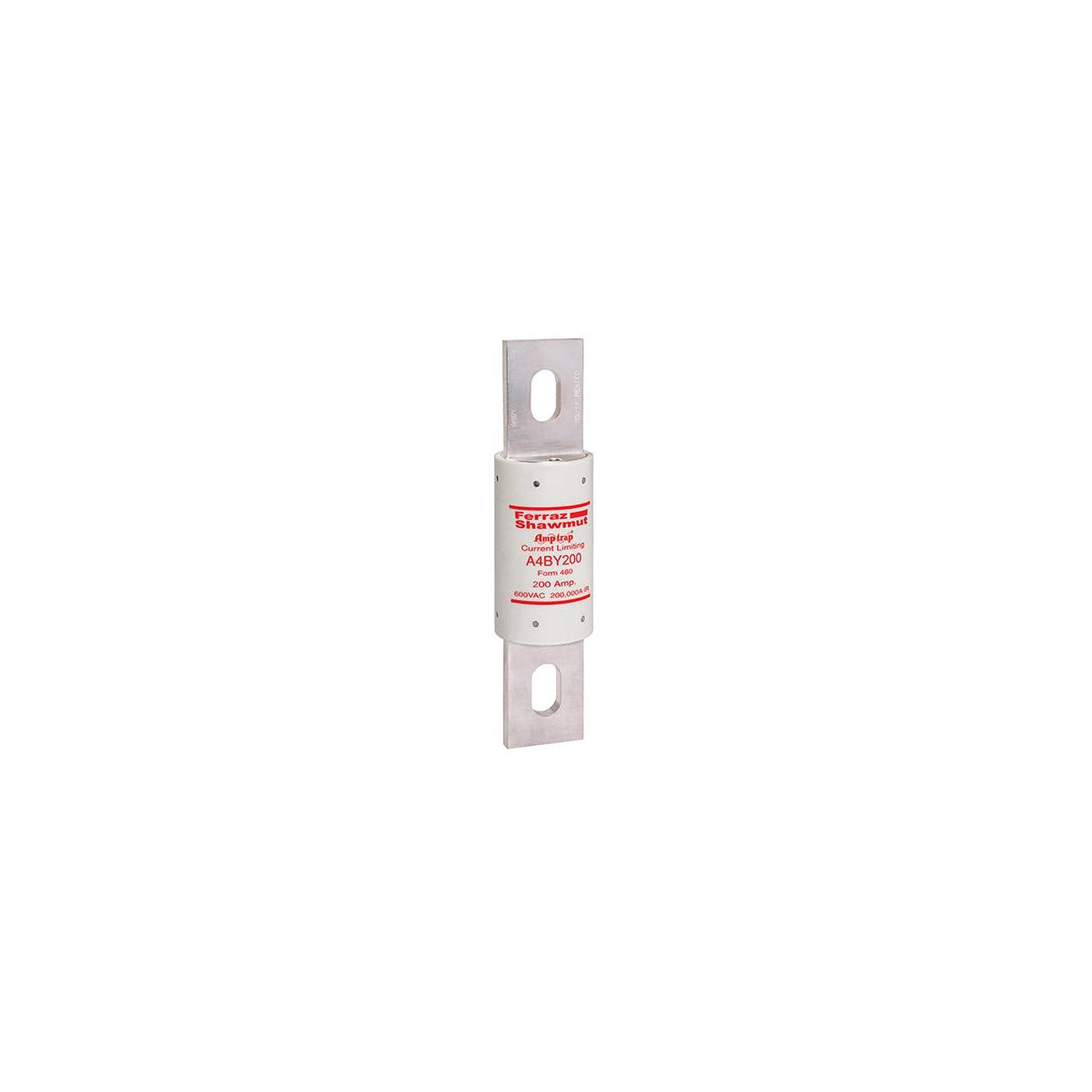

Fuse Amp-Trap® 600V 200A Time-Delay Class L A4BY Series

The Fuse Amp-Trap® A4BY Series is a Class L time-delay fuse designed for protecting service entrance equipment, feeder circuits, circuit breakers, load centers, panelboards, switchboards, and metering centers. It is a 100% rated device suitable for continuous currents up to its ampere rating and features a 4-second minimum time delay at 500% rating to allow normal current surges and coordination with ground fault relays. This fuse is commonly supplied by electrical distributors and switchgear suppliers as part of lighting solutions and wire and cable protection systems.

Specifications

• Amperage Rating: 200 A
• Voltage Rating: 600 VAC, 300 VDC
• Interrupt Rating: 200 kA AC, 100 kA DC
• Fuse Class: Class L
• Mounting Type: Bolted
• Connection: Blade
• Dimensions: Length 8.63 in, Width 2 in, Height 2 in, Diameter 2 in
• Insulation Material: GMG (Glass Melamine)
• Product Weight: 2.38 lbs
• Manufacturer Part Number: A4BY200
• Manufacturer: Mersen

Features

• Current-limiting design reduces fault current
• 4-second time-delay at 500% rating to pass normal surges
• Unique dimensions prevent replacement by other fuse classes
• Blade stamped catalog numbers for permanent identification
• Glass melamine body and plated terminals ensure reliability in harsh environments
• Uniform characteristics across all ampere ratings
• UL/CSA listed and self-certified for DC applications
