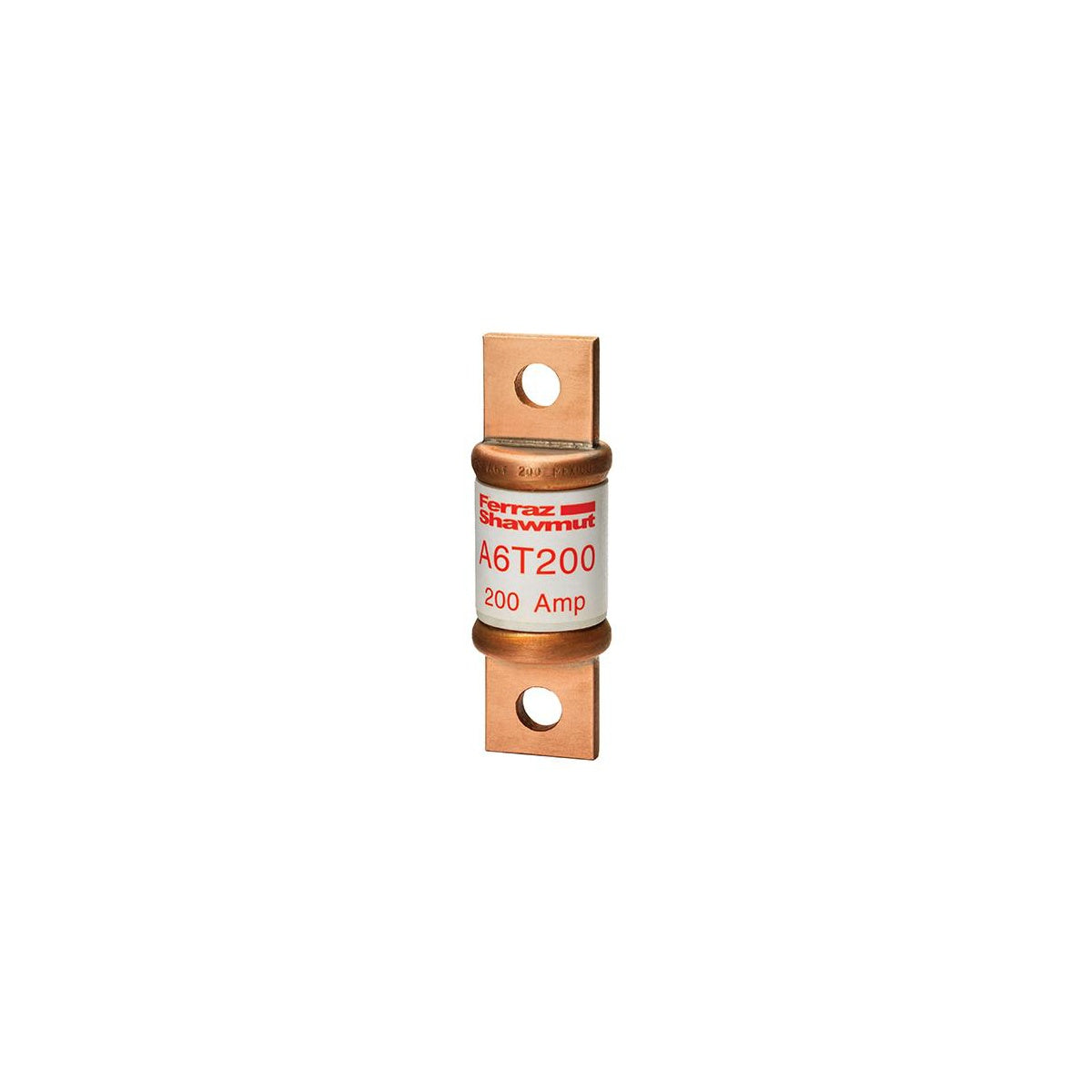

Fuse Amp-Trap® 600V 200A Fast-Acting Class T A6T Series

The Fuse Amp-Trap® 600V 200A Fast-Acting Class T A6T Series fuse is designed for precise current interruption in electrical distribution systems. It is suitable for use in load centers, panelboards, switchboards, circuit breakers, and metering centers. This fuse combines high current-limitation with a compact size, making it ideal for electrical distributors and switchgear suppliers requiring reliable protection in limited space environments.

Specifications

• Amperage Rating: 200 A
• Interrupt Rating: 200 kA
• Voltage Rating: 600 V
• Fuse Class: Class T
• Connection: Blade
• Mounting Type: Bolted
• Dimensions (L x W x H): 3.26 in x 1.07 in x 1.07 in
• Product Weight: 0.2130 lb
• Insulation Material: GMG (Glass Melamine)
• Manufacturer Part Number: A6T200

Features

• Fast-acting fuse for rapid response to overcurrent conditions
• High current-limitation to reduce damage and improve system protection
• Compact physical size prevents substitution with lower voltage or current-limiting fuses
• Glass melamine body ensures superior dimensional stability
• Catalog numbers stamped into blades for permanent identification
