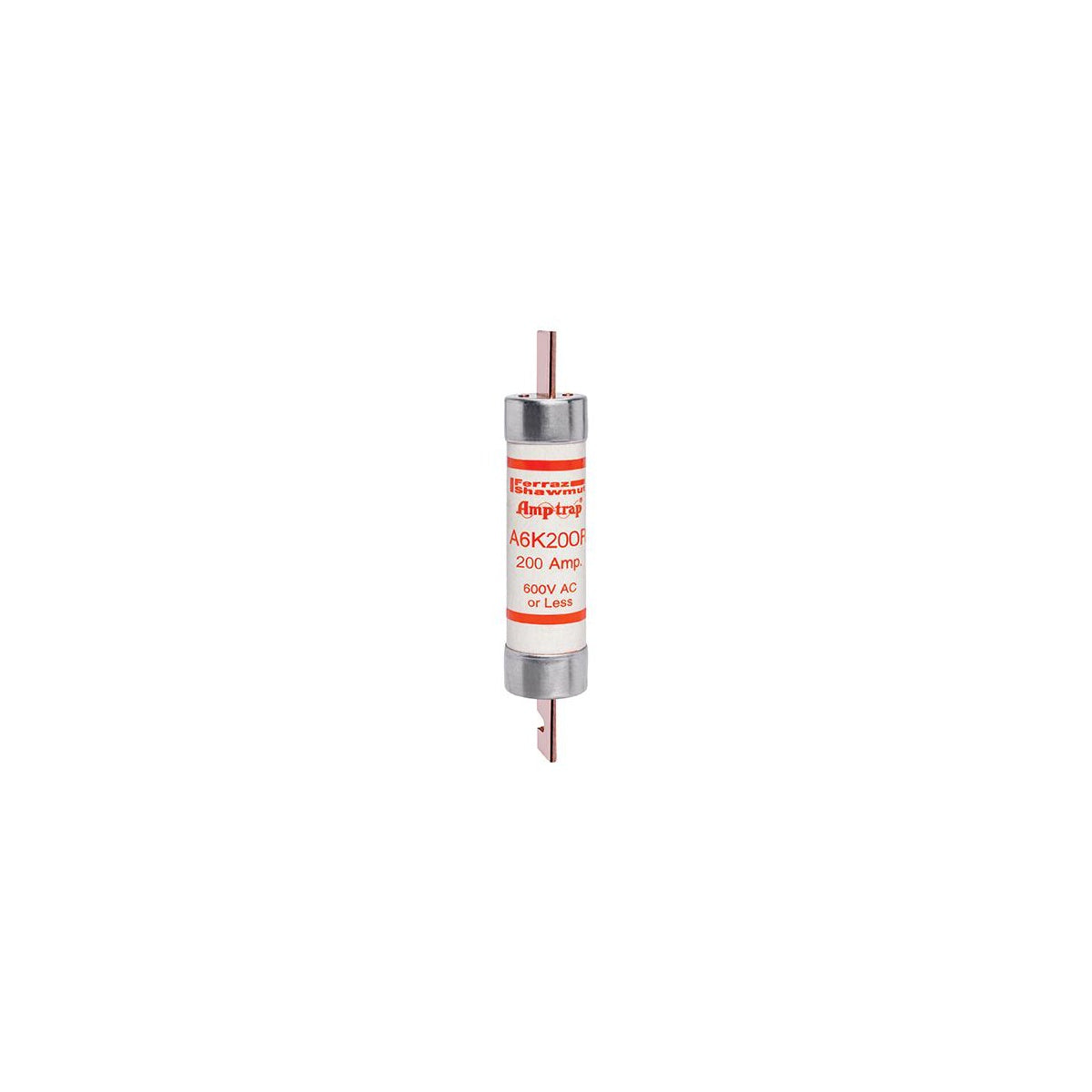

Fuse Amp-Trap® 600V 200A Fast-Acting Class RK1 A6K Series
SKU: #195241
Part: #A6K200R
UPC: 782001915803
Fuse Amp-Trap® 600V 200A Fast-Acting Class RK1 A6K Series
SKU: #195241
Part: #A6K200R
UPC: 782001915803
Description
Fuse Amp-Trap® 600V 200A Fast-Acting Class RK1 A6K Series
The Fuse Amp-Trap® A6K Series is a fast-acting, current-limiting fuse designed for protection in electrical distribution systems where high available short-circuit currents exist. It is suitable for use in load centers, panelboards, switchboards, bus ducts, feeder circuits, non-inductive loads, and lighting circuits. As a reliable component for electrical distributors and switchgear suppliers, this fuse offers excellent branch and feeder circuit protection with a high interrupt rating and fast response.
Specifications
- Amperage Rating: 200 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupt Rating: 200 kA
- Fuse Class: Class RK1
- Dimensions: Length 9.63 in, Diameter 1.81 in
- Connection Type: Blade
- Mounting Type: Clip
- Insulation Material: PolyTube
- Product Weight: 1.46 lbs
- Manufacturer: Mersen
- Manufacturer Part Number: A6K200R
Features
- Fast-acting for rapid circuit interruption
- Current-limiting design reduces peak let-thru current
- Rejection style prevents replacement by incompatible fuse classes
- Fiberglass body ensures dimensional stability in industrial environments
- Easy-to-read imprint label for quick recognition and replacement
