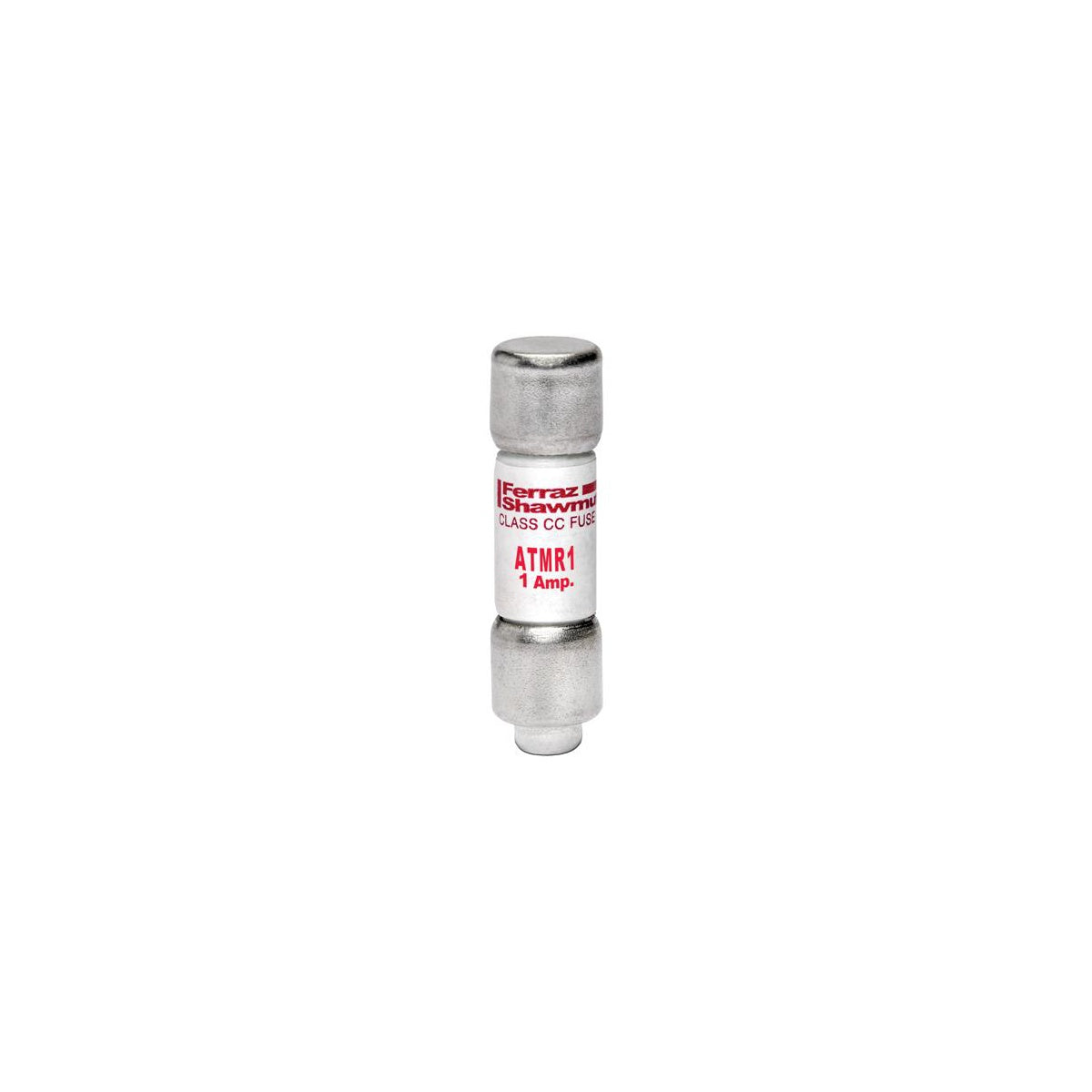

Fuse Amp-Trap® 600V 1A Fast-Acting Class CC ATMR Series
Fuse Amp-Trap® 600V 1A Fast-Acting Class CC ATMR Series
Total Price: $12.59 per each Sold in increments of 1 each
Description
Features
- Rejection-style design prevents replacement errors when used with recommended fuse blocks
- Versatile design for individual component and branch circuit protection
Applications
- Control circuits
- Lighting
- General loads
- Branch circuit protection
Approvals & Standards
- UL Listed to Standard 248-4 File E2137
- CSA Certified to Standard C22.2 No. 248.4
- DC listed to UL Standard 248
Specifications
- Rated voltage AC UL: 600 V
- Rated voltage DC UL: 600 V
- Frequency: 50/60 Hz
- Ampere Rating: 1 A
- ROHS Compliant: Yes
- Fuse Class: Class CC
- Speed/Characteristic: Fast-Acting
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 200 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Ferrule
- Body/Insulating Material: GMG
Product Dimensions
- Product Weight: 0.02 lb
- Product Diameter: 0.41 in
- Product Length: 1.5 in
Packaging Dimensions
- Sell Pack Quantity: 10 Each
- Sell Pack Weight: 0.21 lb
- Sell Pack Width: 0.88 in
- Sell Pack Length: 1.62 in
- Sell Pack Height: 2.12 in
Downloads
Spec SheetSpec Sheet FR
Curves 1
Curves 2
More Information
Manufacturer Catalog Number
ATMR1
Weight
0.017
Length
1.5
Width
0.41
Height
0.41
Diameter
0.41 inches
Frequency
50 hertz
Interrupt Rating
200 kA
Mounting Type
Clip
Product Size
1.5 x 0.41 in
Terminal Type
Ferrule
Type
Class CC
