Fuse Amp-Trap® 600V 175A Fast-Acting Class T A6T Series
SKU: #195299
Part: #A6T175
UPC: 782001891473
Fuse Amp-Trap® 600V 175A Fast-Acting Class T A6T Series
SKU: #195299
Part: #A6T175
UPC: 782001891473
Description

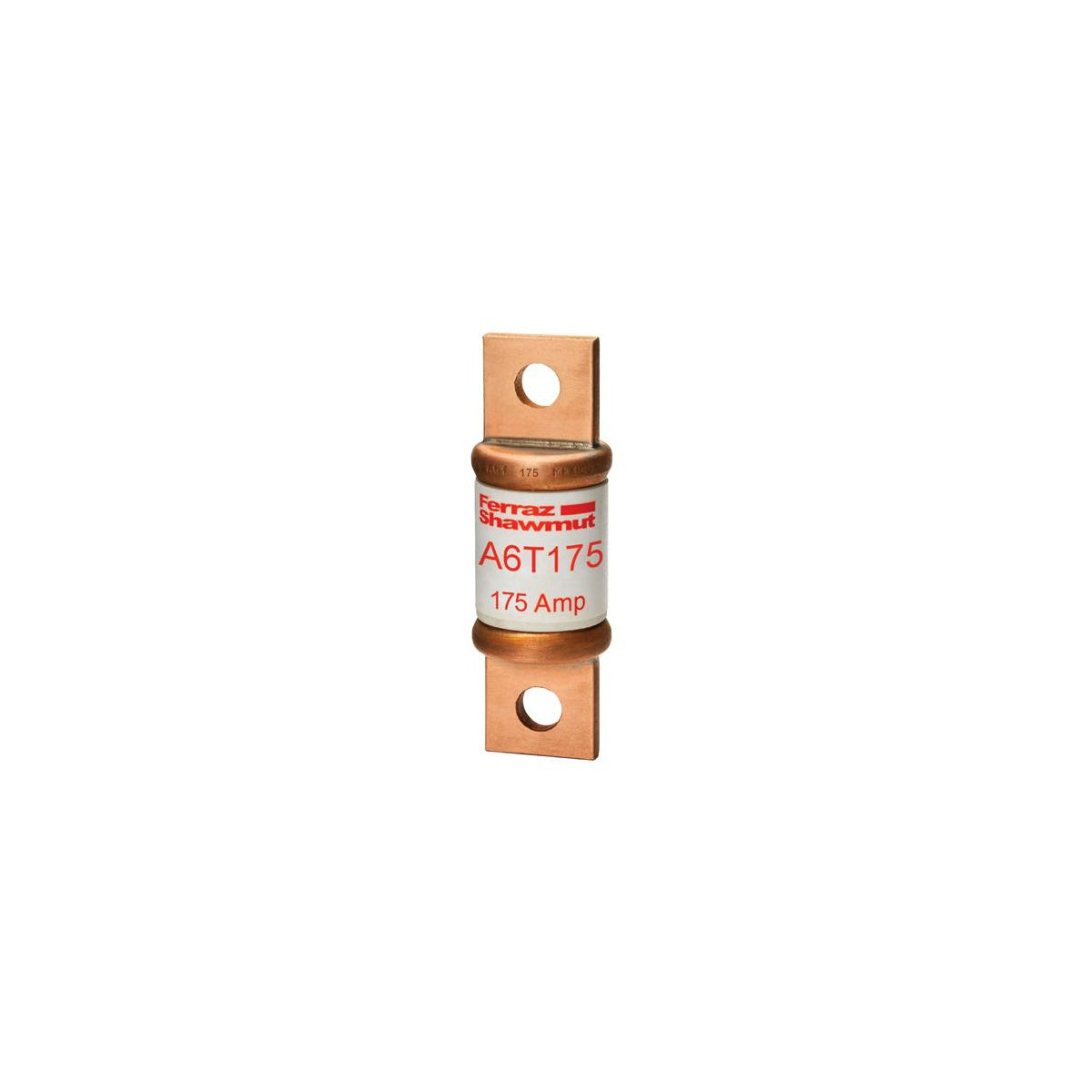

Fuse Amp-Trap® 600V 175A Fast-Acting Class T A6T Series Fuse
The Mersen Fuse Amp-Trap® 600V 175A Fast-Acting Class T A6T Series fuse is designed for electrical distribution and protection in load centers, panelboards, switchboards, circuit breakers, and metering centers. This fuse offers high current-limitation within a compact size, making it suitable for use by electrical distributors and switchgear suppliers requiring reliable and precise overcurrent protection.
Specifications
- Voltage Rating: 600 V
- Amperage Rating: 175 A
- Interrupt Rating: 200 kA
- Fuse Class: Class T
- Dimensions (L x W x H): 3.26 in x 1.07 in x 1.07 in
- Diameter: 1.07 inches
- Weight: 0.2130 lbs
- Connection Type: Blade
- Mounting Type: Bolted
- Insulation Material: Glass Melamine (GMG)
- Manufacturer Part Number: A6T175
Features
- Fast-acting fuse providing high current-limitation
- Compact physical size prevents substitution with lower-rated fuses
- Glass melamine body ensures superior dimensional stability
- Catalog numbers stamped into blades for permanent identification
