Fuse Amp-Trap® 600V 175A Fast-Acting Class J A4J Series
SKU: #194944
Part: #A4J175
UPC: 782001960360
Fuse Amp-Trap® 600V 175A Fast-Acting Class J A4J Series
SKU: #194944
Part: #A4J175
UPC: 782001960360
Description

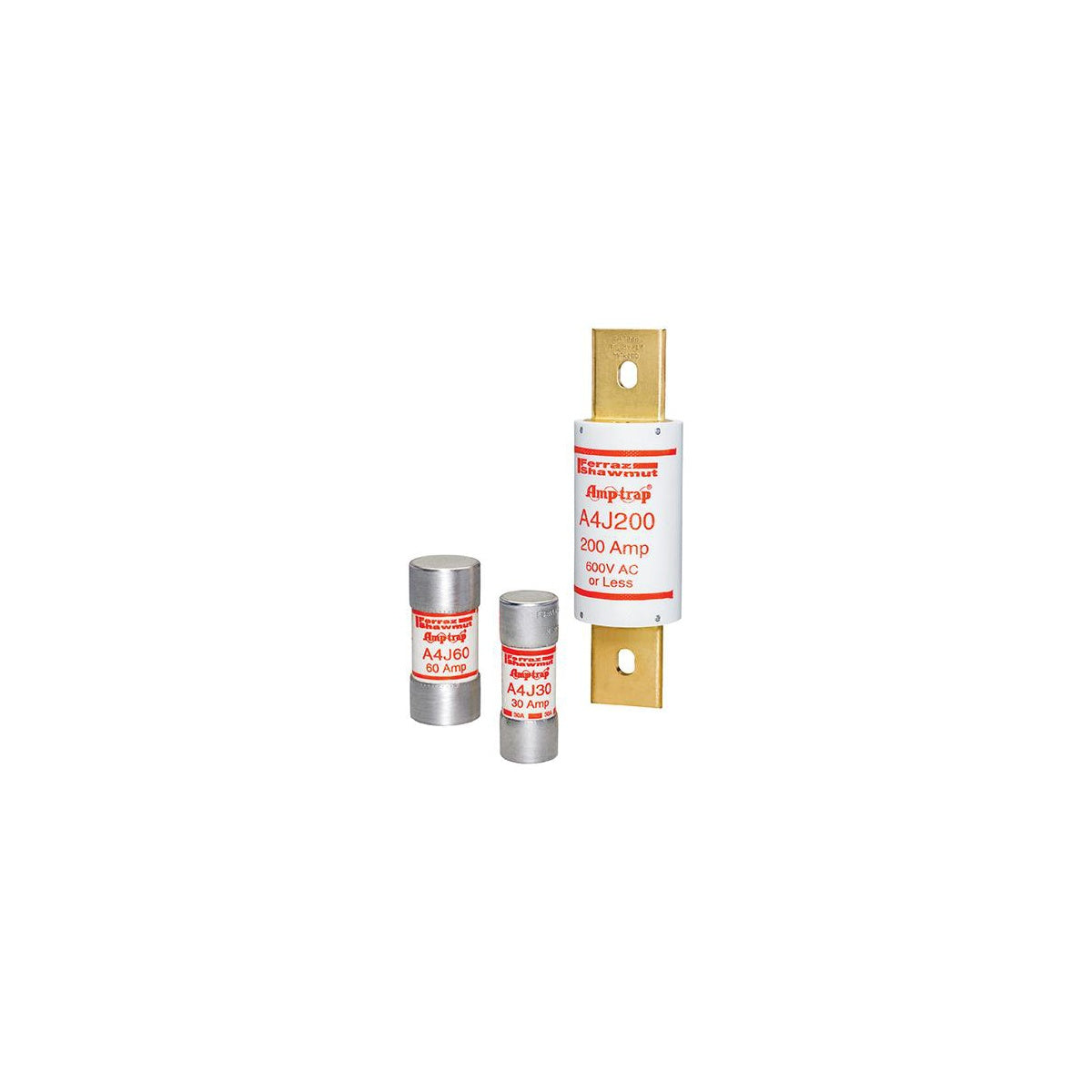

Fuse Amp-Trap® 600V 175A Fast-Acting Class J A4J Series
The Fuse Amp-Trap® A4J Series is a fast-acting Class J fuse designed to provide excellent current-limiting protection for a wide range of electrical applications. It is suitable for use in capacitors, load centers, panelboards, switchboards, bus duct, feeder circuits, circuit breakers, as well as lighting, heating, and general loads. This fuse is engineered to prevent substitution with lower-rated fuses, ensuring safety and reliability in electrical distribution and lighting solutions.
Specifications
- Amperage Rating: 175 A
- Voltage Rating: 600 VAC
- Interrupt Rating: 200 kA
- Fuse Class: Class J
- Dimensions (L x W x H): 5.75 in x 1.62 in x 1.62 in
- Mounting Type: Clip
- Connection Type: Blade
- Insulation Material: GMG
- Product Weight: 0.7540 lbs
Features
- High current limitation for low peak let-thru current
- Unique dimensions prevent replacement by other fuse classes
- Fiberglass body provides dimensional stability in harsh industrial environments
- Easy-to-read imprint label for quick recognition and replacement
- Fast-acting and very current-limiting
- DC ratings available
