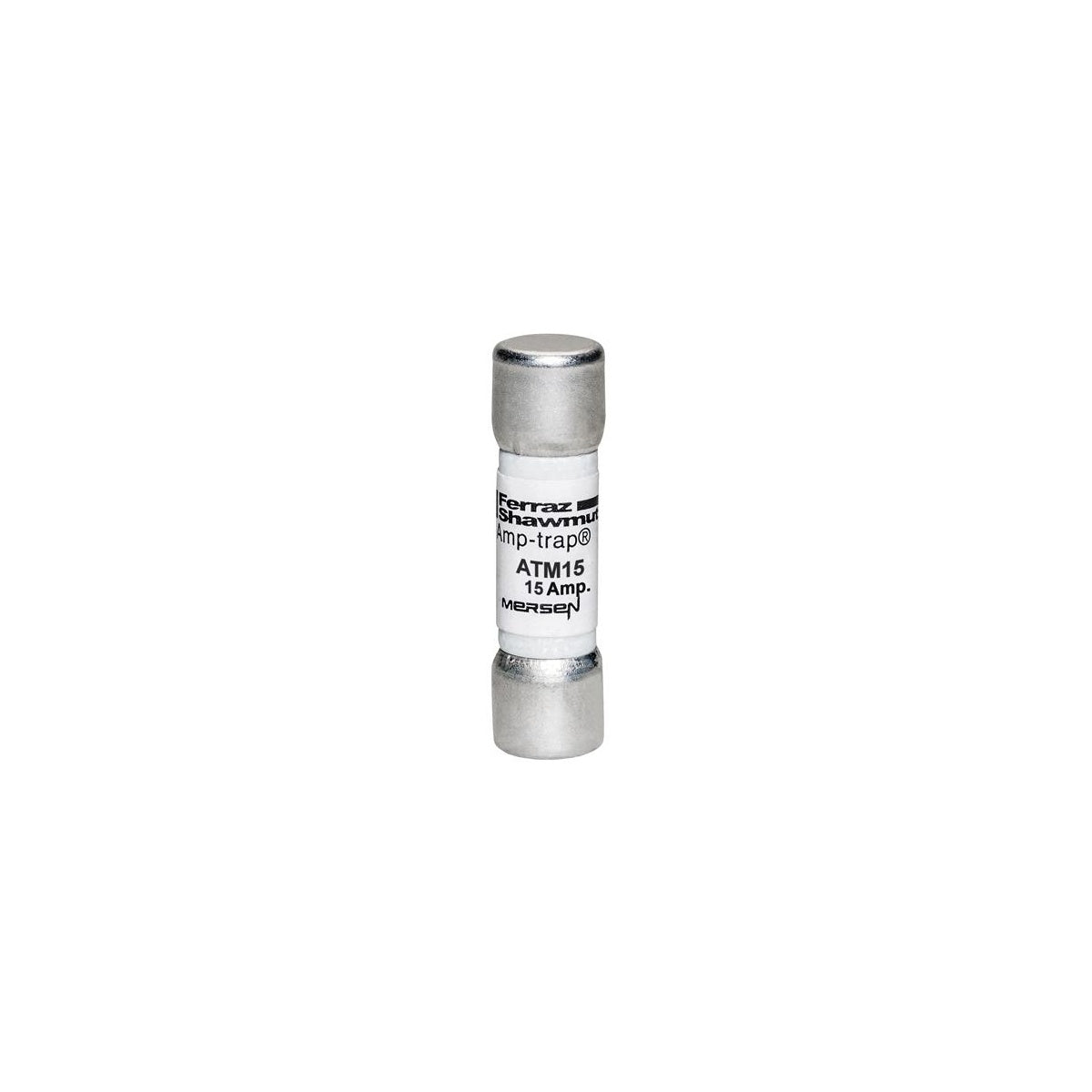

Fuse Amp-Trap® 600V 15A Fast-Acting Midget ATM Series
SKU: #195644
Part: #ATM15
UPC: 782001900694
Fuse Amp-Trap® 600V 15A Fast-Acting Midget ATM Series
SKU: #195644
Part: #ATM15
UPC: 782001900694
Description
Fuse Amp-Trap® 600V 15A Fast-Acting Midget ATM Series
The Fuse Amp-Trap® 600V 15A Fast-Acting Midget ATM Series by Mersen is designed for supplemental protection of circuits up to 600VAC and 600VDC with a 100kA interrupting rating. This fast-acting fuse is suitable for applications requiring reliable protection of small motors, transformers, and circuits with high inrush currents. It is ideal for electrical distributors and switchgear suppliers seeking robust and compact fuse solutions compatible with wire and cable systems and lighting solutions.
Specifications
- Voltage Rating: 600 VAC / DC
- Amperage Rating: 15 A
- Interrupt Rating: 100 kA
- Fuse Class: Midget
- Dimensions: 1.5 in (Length) x 0.41 in (Diameter)
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: GMG
- Product Weight: 0.0170 lbs
Features
- Fast-acting fuse for quick circuit interruption
- Rated for supplemental protection of small motors and transformers
- Extended ratings for special protection of capacitors and circuits with high inrush currents
- 600VDC rating suitable for photovoltaic and solar applications
- Compatible with UltraSafe™ fuse holders
- Compact 1 1/2" x 13/32" (38mm x 10mm) dimensions for easy installation
