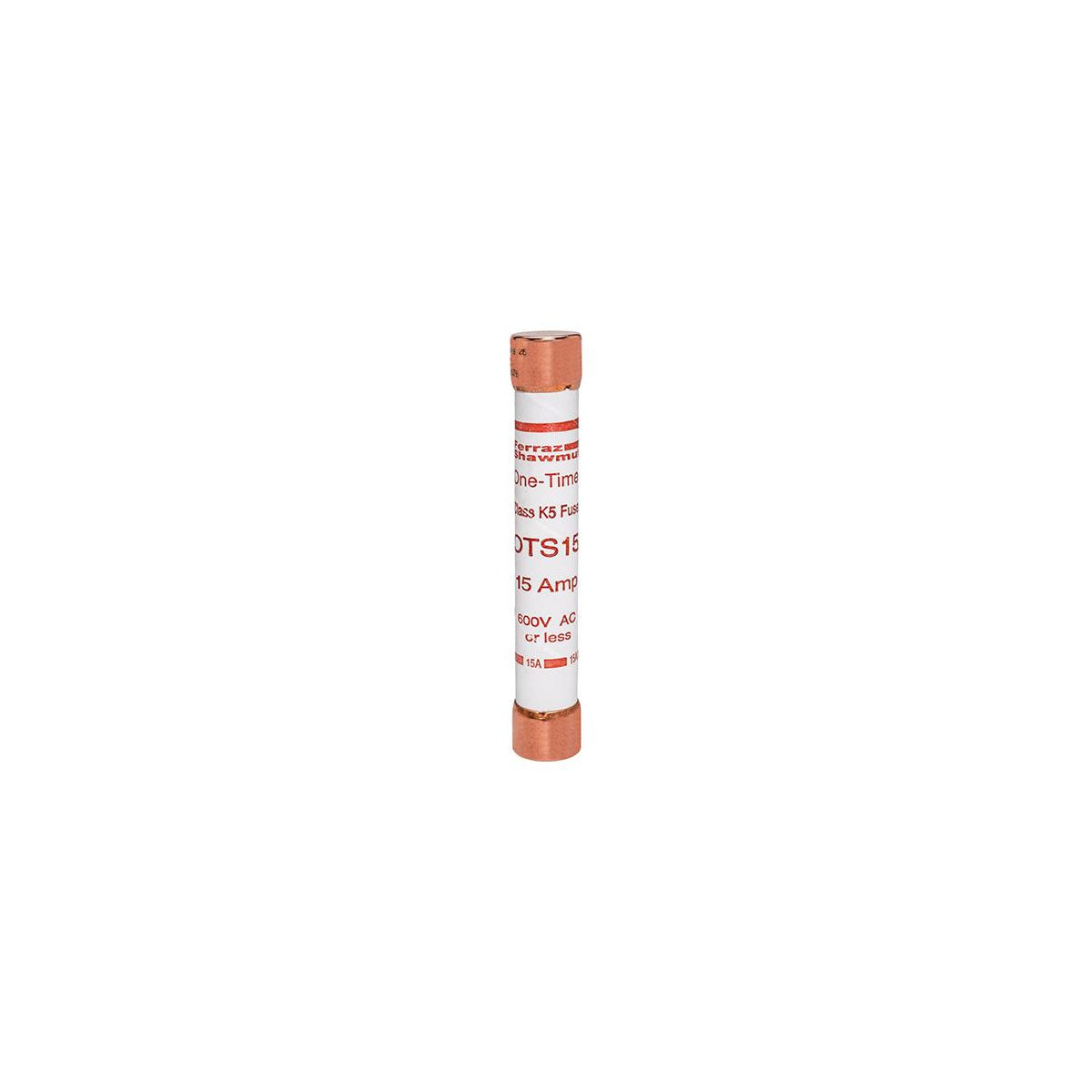

Fuse Amp-Trap® 600V 15A Fast-Acting Class K5 OTS Series
Fuse Amp-Trap® 600V 15A Fast-Acting Class K5 OTS Series
Total Price: $9.34 per each Sold in increments of 1 each
Description
Features
- Easy to read imprint label for quick recognition and replacement
- Low cost for high protection value
Applications
- Feeders
- Branch circuits
- Resistive heating
- Residential and small commercial installations
Approvals & Standards
- UL Listed to Standard 248-9 File E2137
- CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.)
- Self-certified for DC per UL248
Specifications
- Rated voltage AC UL: 600 V
- Rated voltage DC UL: 300 V
- Ampere Rating: 15 A
- ROHS Compliant: Yes
- Fuse Class: Class K5
- Speed/Characteristic: Fast-Acting
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 50 kA
- Connection/Terminal Material: Copper
- Connection/Terminal Type: Ferrule
- Body/Insulating Material: Paper
Product Dimensions
- Product Weight: 0.11 lb
- Product Diameter: 0.81 in
- Product Length: 5 in
Packaging Dimensions
- Sell Pack Quantity: 10 Each
- Sell Pack Weight: 1.16 lb
- Sell Pack Width: 4.12 in
- Sell Pack Length: 5.12 in
- Sell Pack Height: 1.75 in
Downloads
Spec SheetSpec Sheet FR
Drawings
Curves 1
Curves 2
More Information
Manufacturer Catalog Number
OTS15
Weight
0.11
Length
5
Width
0.81
Height
0.81
Diameter
0.81 inches
Interrupt Rating
50 kA
Mounting Type
Clip
Product Size
5 x 0.81 in
Terminal Type
Ferrule
Type
Class K5
