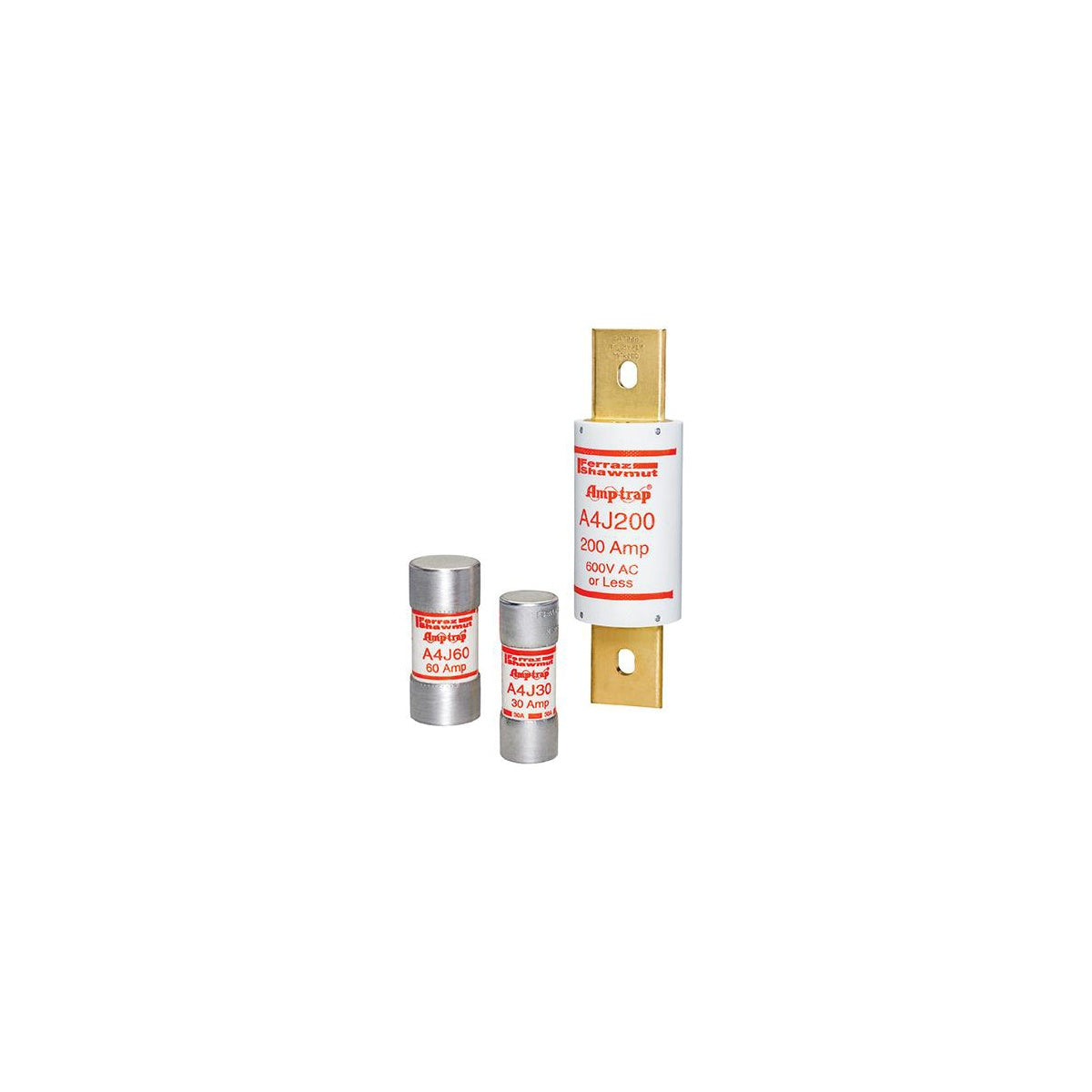

Fuse Amp-Trap® 600V 15A Fast-Acting Class J A4J Series

The Fuse Amp-Trap® A4J Series is a fast-acting, Class J fuse designed to provide excellent current-limiting protection for a broad range of electrical applications. Ideal for use in capacitors, load centers, panelboards, switchboards, bus ducts, feeder circuits, circuit breakers, and lighting, heating, and general loads, this fuse is a reliable component for electrical distributors and switchgear suppliers seeking robust protection solutions.

Specifications

• Amperage Rating: 15 A
• Voltage Rating: 600 VAC, 300 VDC
• Interrupt Rating: 200 kA AC
• Fuse Class: Class J
• Dimensions: 2.25 in (Length) x 0.81 in (Width) x 0.81 in (Height)
• Diameter: 0.81 inches
• Mounting Type: Clip
• Connection: Ferrule
• Insulation Material: PolyTube
• Product Weight: 0.0970 lbs
• Manufacturer: Mersen
• Manufacturer Part #: A4J15

Features

• High current limitation for low peak let-thru current
• Unique dimensions prevent substitution with lower voltage or interrupt rating fuses
• Fiberglass body ensures dimensional stability in harsh industrial environments
• Easy-to-read imprint label for quick recognition and replacement
• Fast-acting and very current-limiting performance
• UL and CSA listed for safety and reliability
• Suitable for DC and AC applications
