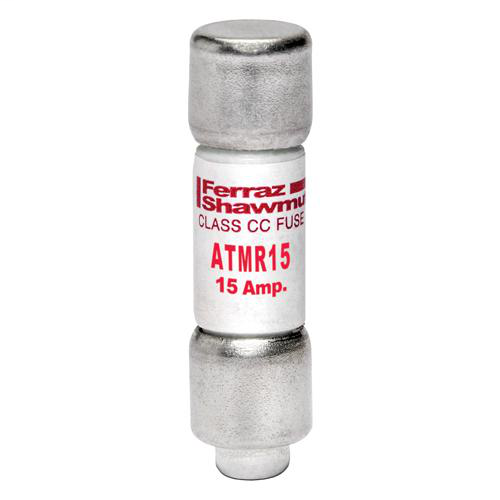

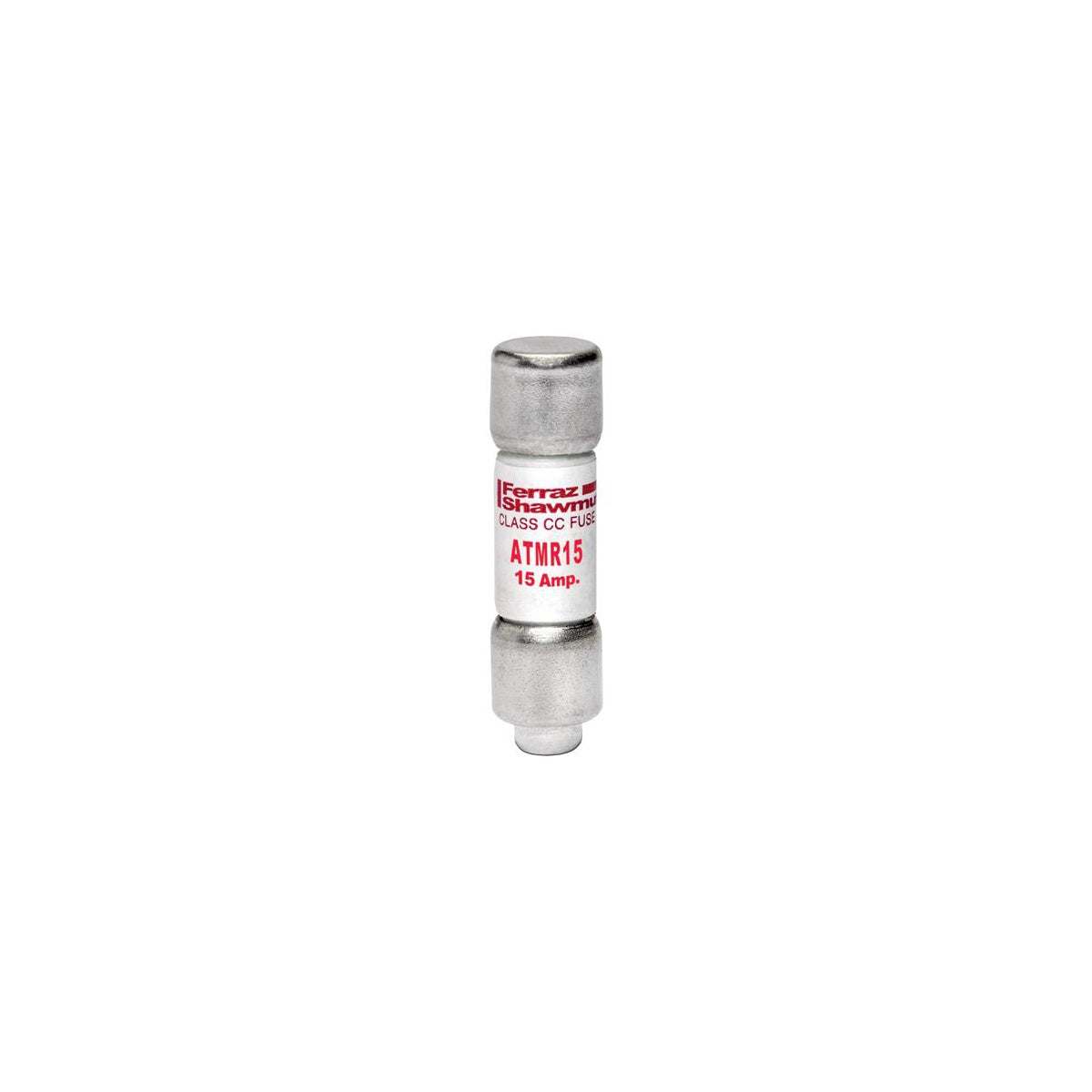

Fuse Amp-Trap® 600V 15A Fast-Acting Class CC ATMR Series
SKU: #195710
Part: #ATMR15
UPC: 782001904814
Fuse Amp-Trap® 600V 15A Fast-Acting Class CC ATMR Series
SKU: #195710
Part: #ATMR15
UPC: 782001904814
Description
Fuse Amp-Trap® 600V 15A Fast-Acting Class CC ATMR Series
The Amp-Trap® ATMR fuse is a fast-acting, current-limiting fuse designed for branch circuit protection in electrical distribution and lighting solutions. It is suitable for control circuits, lighting, general loads, and branch circuit protection where short circuit currents exceed 10,000 amperes. As a compact Class CC fuse rated for 600V, it offers economical and reliable protection for control circuit transformers and general circuits, making it a practical choice for wire and cable safety and switchgear applications.
Specifications
- Voltage Rating: 600 VAC/DC
- Amperage Rating: 15 A
- Interrupt Rating: 200 kA AC, 100 kA DC
- Frequency: 50 hertz
- Fuse Class: Class CC
- Dimensions: Length 1.5 in, Diameter 0.41 in, Width 0.41 in, Height 0.41 in
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: GMG
- Product Weight: 0.0170 lbs
- Manufacturer: Mersen
- Manufacturer Part Number: ATMR15
Features
- Fast-acting and very current-limiting for effective circuit protection
- Smallest dimension 600V fuse suitable for branch circuit protection
- Rejection-style design to prevent substitution by lower rated fuses
- Versatile for individual component and branch circuit protection
- UL Listed to Standard 248-4 and CSA Certified to Standard C22.2 No. 248.4
- DC listed to UL Standard 248
