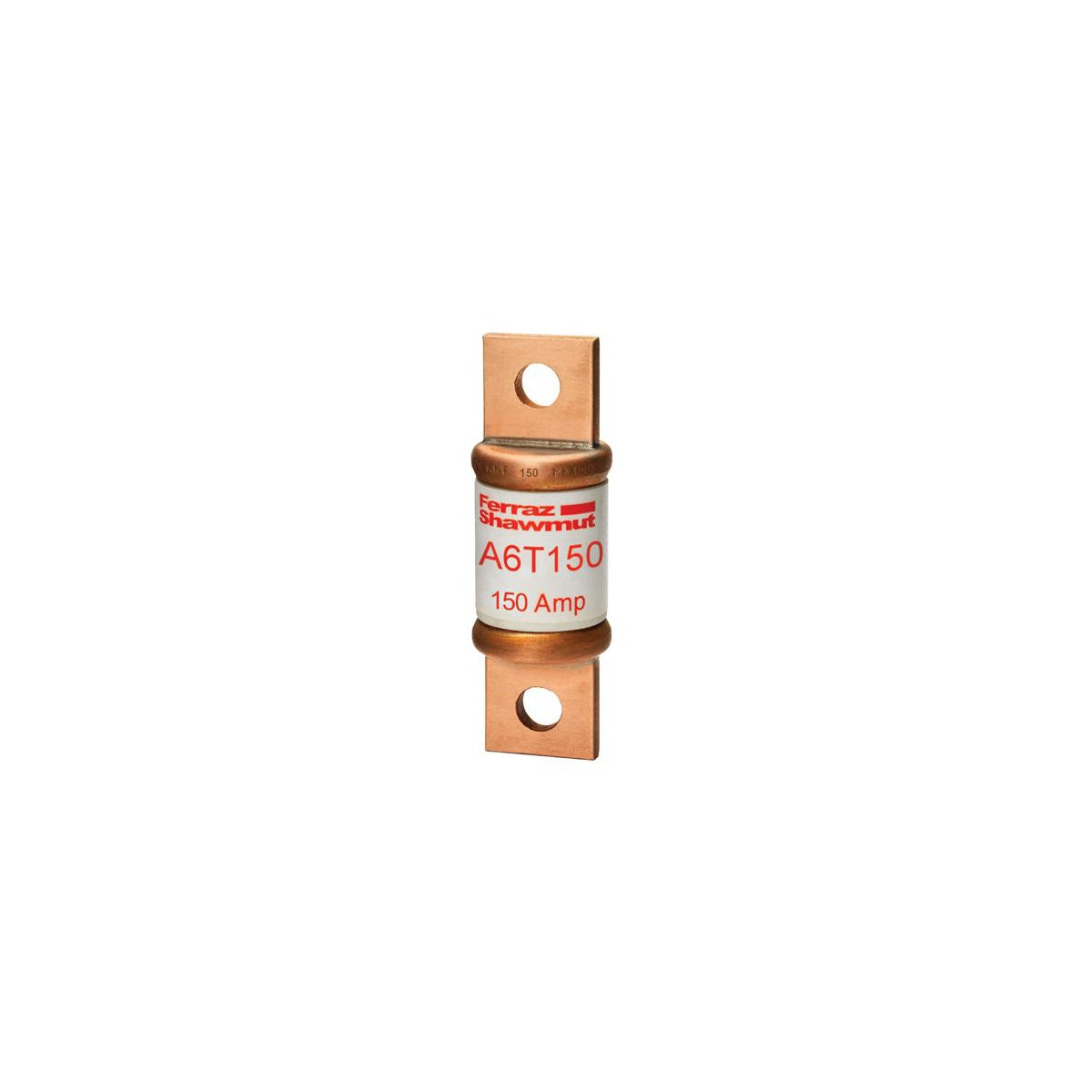

Fuse Amp-Trap® 600V 150A Fast-Acting Class T A6T Series
SKU: #195286
Part: #A6T150
UPC: 782001891466
Fuse Amp-Trap® 600V 150A Fast-Acting Class T A6T Series
SKU: #195286
Part: #A6T150
UPC: 782001891466
Description
Fuse Amp-Trap® 600V 150A Fast-Acting Class T A6T Series
The Fuse Amp-Trap® 600V 150A Fast-Acting Class T A6T Series fuse is engineered for high current-limitation in a compact form factor. Designed for use in electrical distribution systems, it is suitable for load centers, panelboards, switchboards, circuit breakers, and metering centers. This fuse provides reliable protection and precise current interruption, making it an essential component for electrical distributors and switchgear suppliers focused on safety and performance in wire and cable applications.
Specifications
- Amperage Rating: 150 A
- Voltage Rating: 600 V
- Interrupt Rating: 200 kA
- Class: Class T
- Fuse Class: Class T
- Connection: Blade
- Mounting Type: Bolted
- Dimensions (L x W x H): 3.26 in x 1.07 in x 1.07 in
- Diameter: 1.07 inches
- Product Weight: 0.2130 lbs
- Insulation Material: GMG (Glass Melamine)
- Manufacturer Part #: A6T150
- Manufacturer: Mersen
Features
- Fast-acting fuse with high current-limitation capability
- Compact size prevents substitution with lower voltage or current-limiting fuses
- Glass melamine body ensures superior dimensional stability
- Catalog numbers permanently stamped on blades for easy identification
