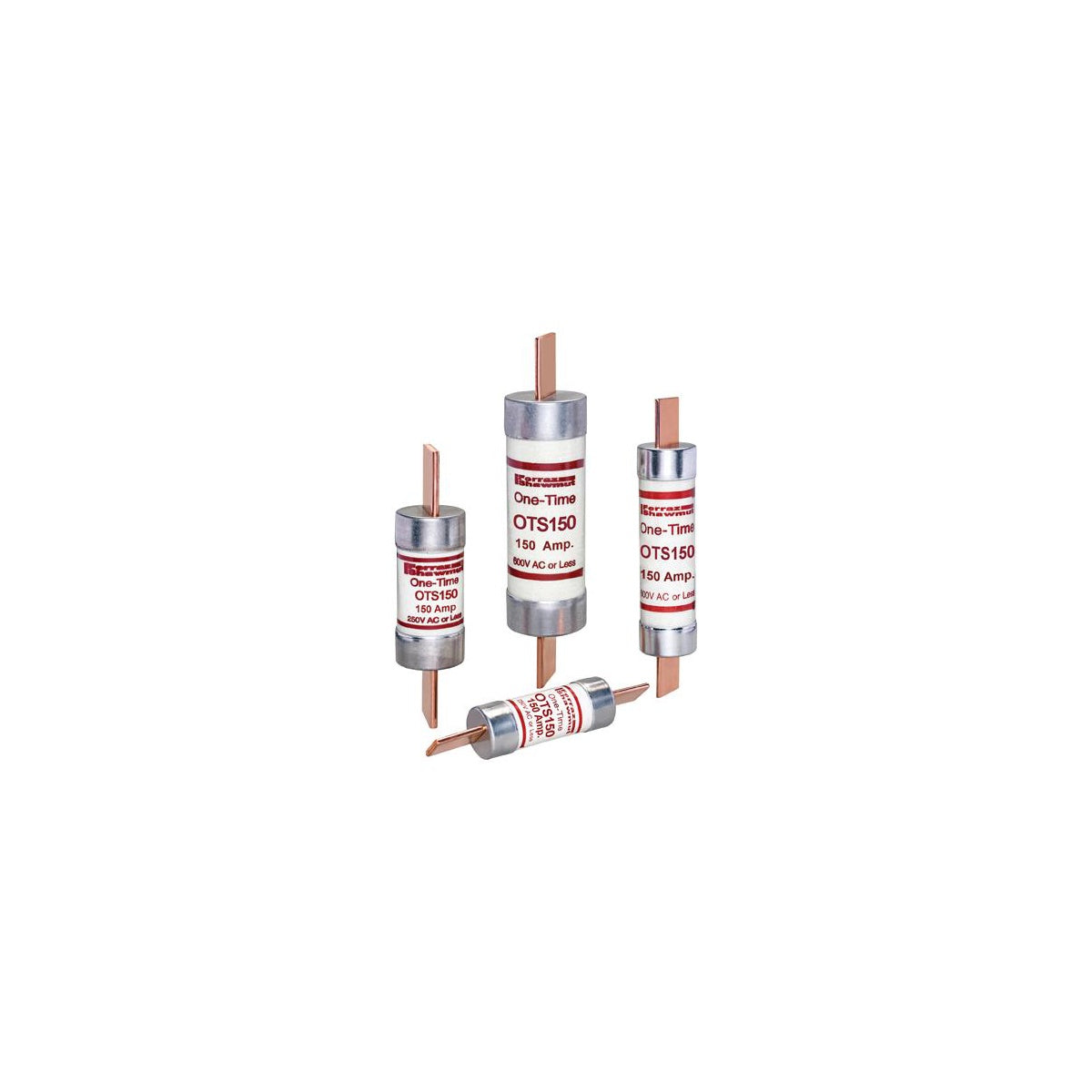

Fuse Amp-Trap® 600V 150A Fast-Acting Class K5 OTS Series Fuse

The Fuse Amp-Trap® 600V 150A Fast-Acting Class K5 OTS Series provides reliable overcurrent protection for feeders and branch circuits in residential and small commercial electrical installations. Designed for use in lighting, resistive heating, and other non-motor loads, this fuse is suitable for electrical distributors and switchgear suppliers requiring a fast-acting fuse with a high interrupt rating. Its PolyTube insulation and blade connection make it compatible with standard clip mounting systems.

Specifications

• Amperage Rating: 150 A
• Voltage Rating: 600 V AC
• Interrupt Rating: 50 kA
• Fuse Class: Class K5
• Dimensions (L x W x H): 9.63 in x 1.81 in x 1.81 in
• Diameter: 1.81 inches
• Mounting Type: Clip
• Connection Type: Blade
• Insulation Material: PolyTube
• Product Weight: 1.46 lbs
• Manufacturer: Mersen
• Manufacturer Part #: OTS150

Features

• One-Time general purpose fuse providing low cost protection for feeder and branch circuits
• Fast-acting design suitable for resistive heating and lighting applications
• Capable of safely interrupting short circuit currents up to 50,000 amperes
• Not a rejection fuse; replacement fuses should match or exceed original interrupt ratings
• PolyTube insulation enhances durability and electrical safety
