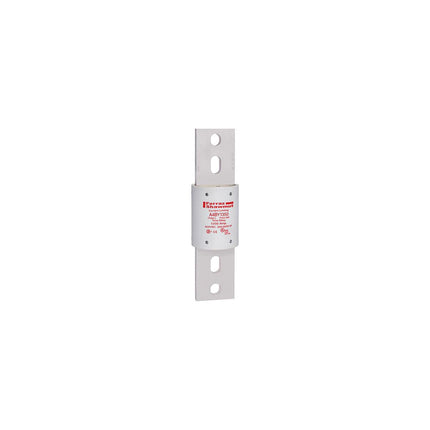

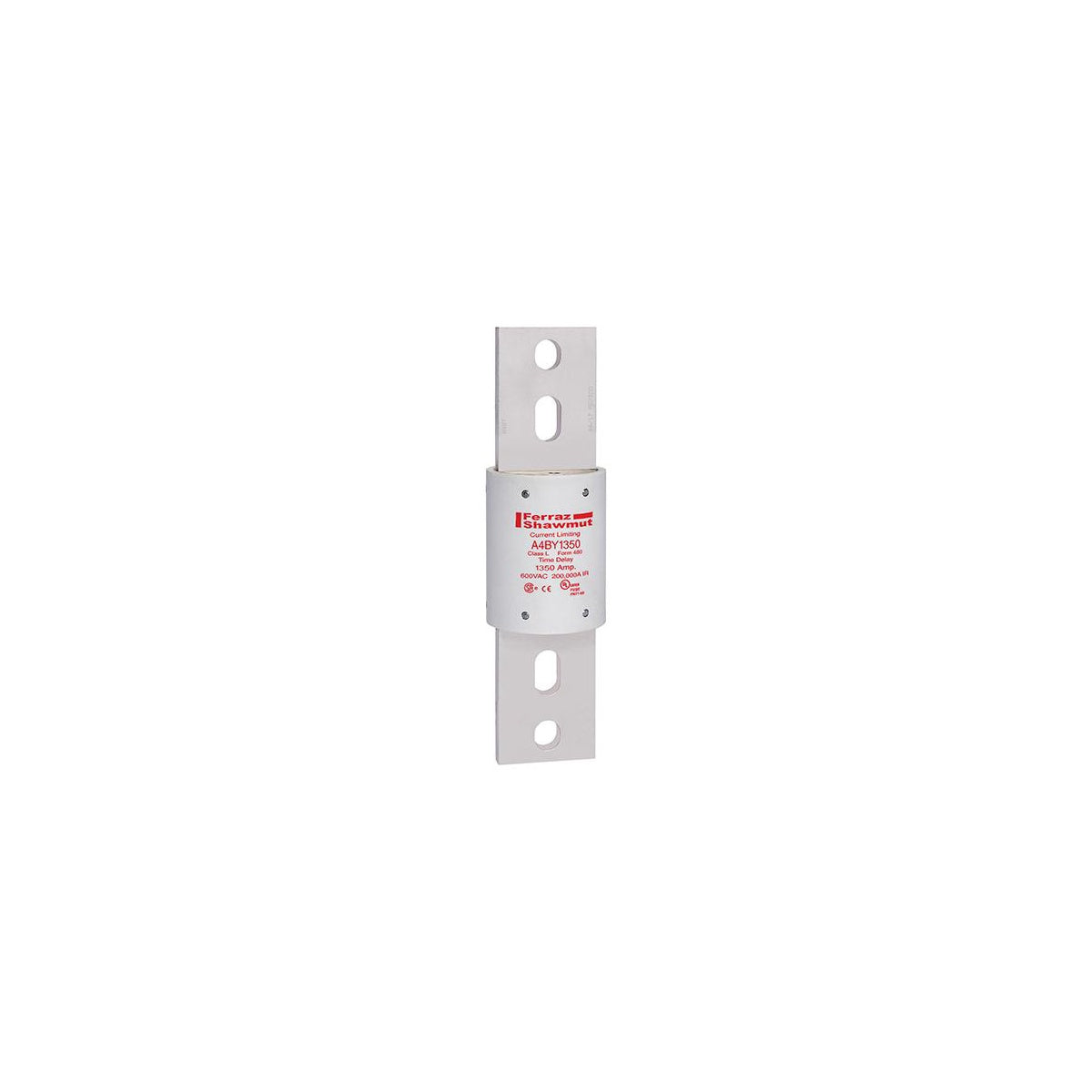

Fuse Amp-Trap® 600V 1350A Time-Delay Class L A4BY Series
SKU: #194717
Part: #A4BY1350
UPC: 782001939342
Fuse Amp-Trap® 600V 1350A Time-Delay Class L A4BY Series
SKU: #194717
Part: #A4BY1350
UPC: 782001939342
Description
Fuse Amp-Trap® 600V 1350A Time-Delay Class L A4BY Series
The Fuse Amp-Trap® A4BY Series is a Class L time-delay fuse designed for reliable protection of service entrance equipment, feeder circuits, and circuit breakers. Rated for 600 volts and 1350 amperes, this fuse is suitable for use in mains feeders, load centers, panelboards, switchboards, and metering centers. It is engineered to coordinate with ground fault relays and pass normal current surges thanks to its 4-second minimum time delay at 500% rating. Ideal for electrical distributors and switchgear suppliers requiring robust, high-interrupting rating fuses.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: A4BY1350
- Amperage Rating: 1350 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupt Rating: 200 kA
- Fuse Class: Class L
- Connection Type: Blade
- Mounting Type: Bolted
- Insulation Material: GMG
- Dimensions (L x W x H): 10.75 in x 3 in x 3 in
- Product Weight: 5.97 lbs
Features
- 100% rated device for continuous currents up to ampere rating
- 4-second minimum time delay at 500% rating to allow current surges
- Unique dimensions prevent replacement by other fuse classes
- Blade-stamped catalog numbers for permanent identification
- Glass melamine body and plated terminals for superior reliability in harsh environments
- Current-limiting characteristics
- Uniform characteristics across all ampere ratings
- UL listed to standard 248-10 and CSA certified
