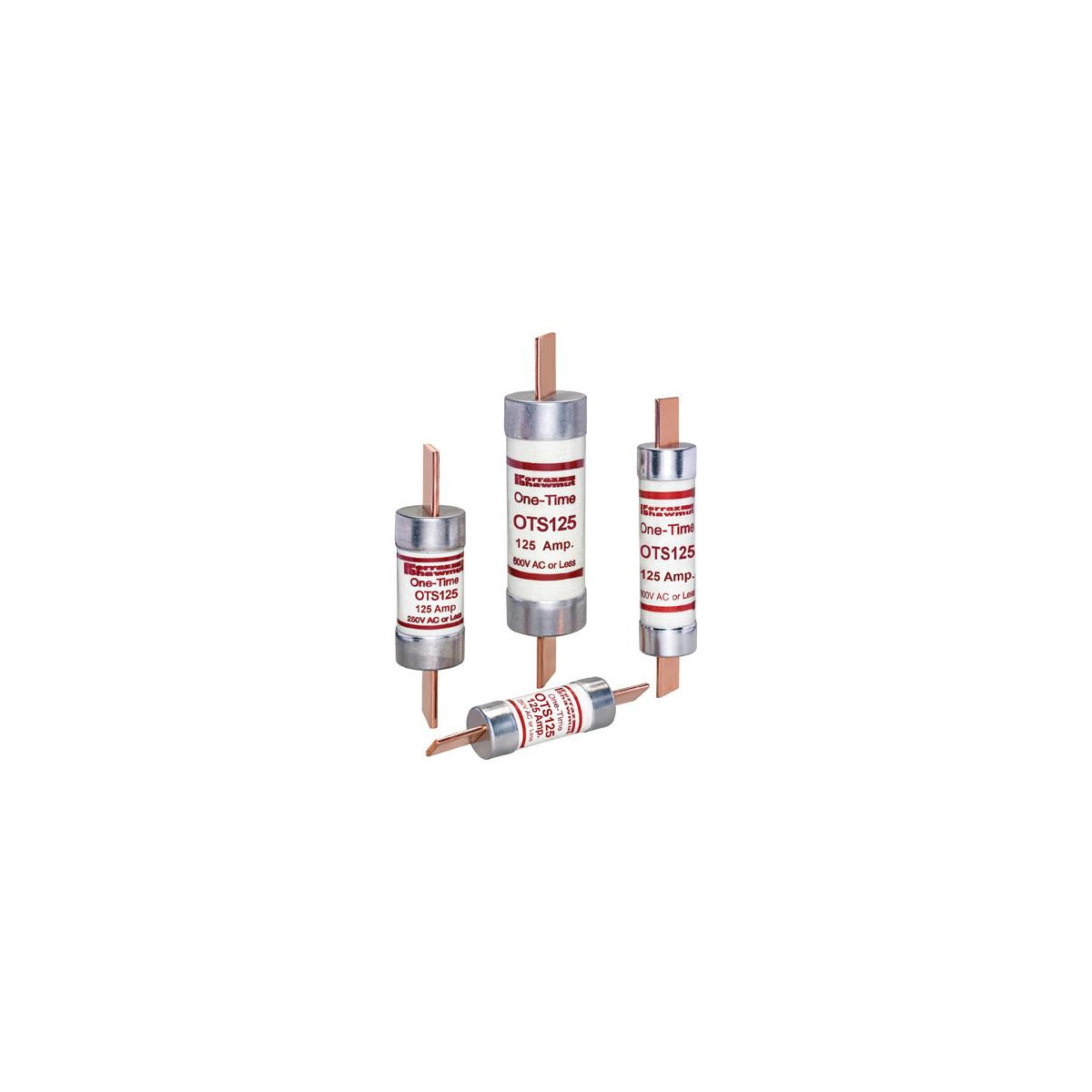

Fuse Amp-Trap® 600V 125A Fast-Acting Class K5 OTS Series
SKU: #196914
Part: #OTS125
UPC: 782001700911
Fuse Amp-Trap® 600V 125A Fast-Acting Class K5 OTS Series
SKU: #196914
Part: #OTS125
UPC: 782001700911
Description
Fuse Amp-Trap® 600V 125A Fast-Acting Class K5 OTS Series Fuse
The Fuse Amp-Trap® 600V 125A Fast-Acting Class K5 OTS Series is designed for low-cost protection of feeders and branch circuits in residential and small commercial installations. It is suitable for applications including resistive heating and lighting loads. This fuse safely interrupts short circuit currents up to 50,000 amperes, making it a reliable component for electrical distributors and switchgear suppliers managing wire and cable protection.
Specifications
- Amperage Rating: 125 A
- Voltage Rating: 600 V AC
- Interrupt Rating: 50 kA
- Fuse Class: Class K5
- Dimensions (L x W x H): 9.63 in x 1.81 in x 1.81 in
- Diameter: 1.81 inches
- Weight: 1.46 lbs
- Connection Type: Blade
- Mounting Type: Clip
- Insulation Material: PolyTube
- Manufacturer Part Number: OTS125
Features
- One-Time OTS general purpose fuse for cost-effective protection
- Fast-acting fuse characteristics suitable for non-motor loads such as lighting and heating
- Not a rejection fuse; replacement fuses must match or exceed original interrupting ratings
- PolyTube insulation for reliable electrical isolation
- Clip mounting and blade connection for straightforward installation
