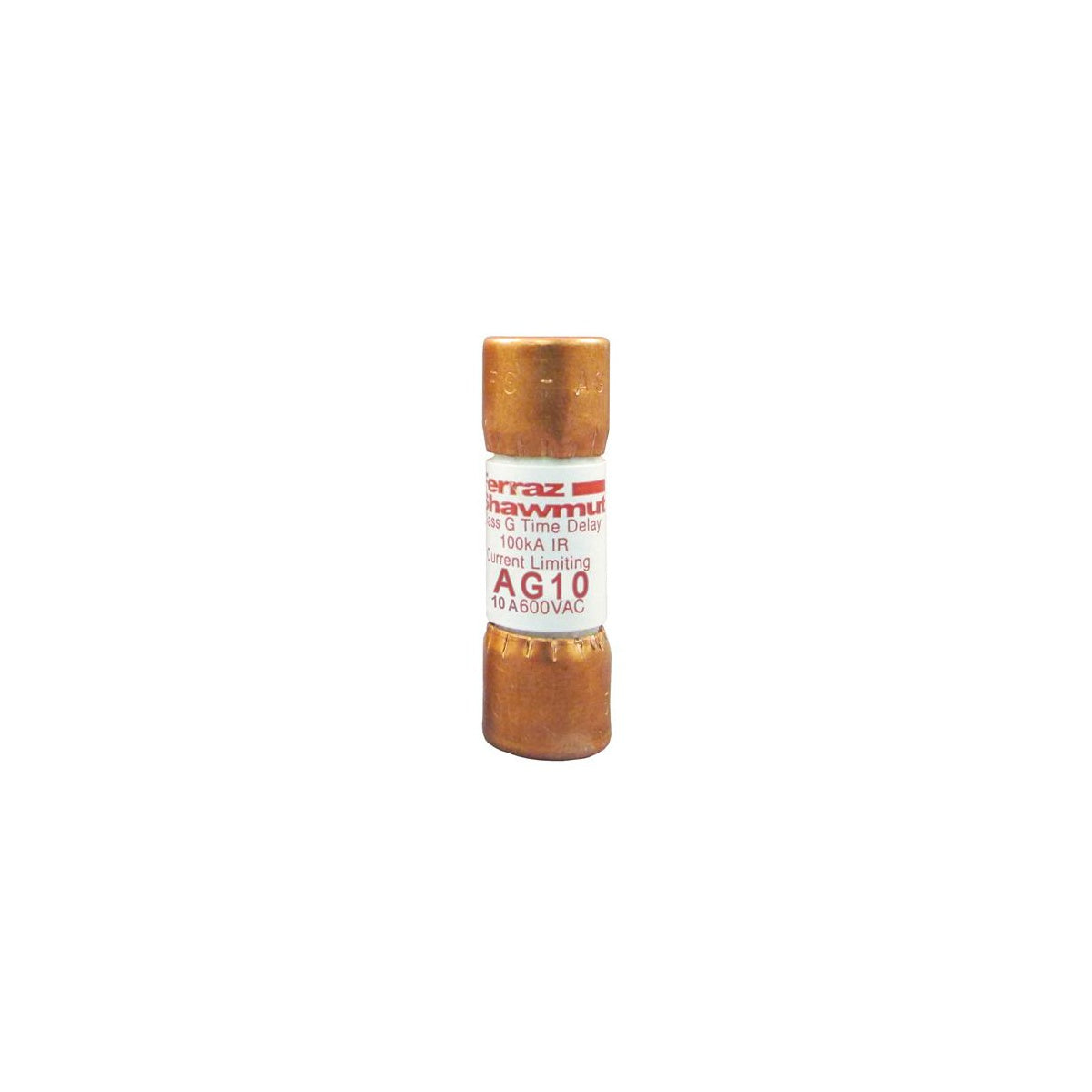

Fuse Amp-Trap® 600V 10A Time-Delay Class G AG Series
SKU: #195361
Part: #AG10
UPC: 782001905132

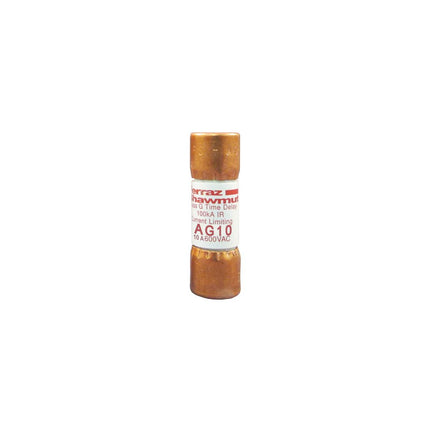

Fuse Amp-Trap® 600V 10A Time-Delay Class G AG Series
SKU: #195361
Part: #AG10
UPC: 782001905132
Description
Fuse Amp-Trap® 600V 10A Time-Delay Class G AG Series
The Mersen Fuse Amp-Trap® AG Series is a UL Listed Class G time-delay fuse designed for branch-circuit protection in lighting, heating, and appliance applications. This 10A, 600V fuse is suitable for electrical distributors and switchgear suppliers requiring reliable current-limiting protection. It features a fiberglass body for dimensional stability in industrial environments and is compatible with ferrule connections and clip mounting.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: AG10
- Fuse Class: Class G
- Amperage Rating: 10 A
- Voltage Rating: 600 VAC
- Interrupt Rating: 100 kA
- Dimensions (L x W x H): 1.31 in x 0.41 in x 0.41 in
- Diameter: 0.41 inches
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: GMG
- Product Weight: 0.0160 lbs
Features
- Time-delay functionality for currents above 5A
- Current-limiting design to protect branch circuits
- Fiberglass body ensures dimensional stability in harsh industrial settings
- Four physical sizes available in the AG series to prevent interchangeability with other fuse classes
- UL listed to standard 248-5 and CSA certified to C22.2 No. 248.5
