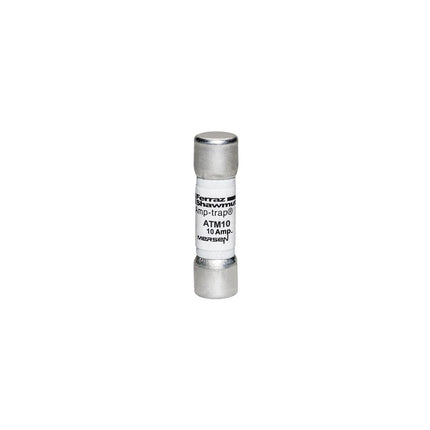

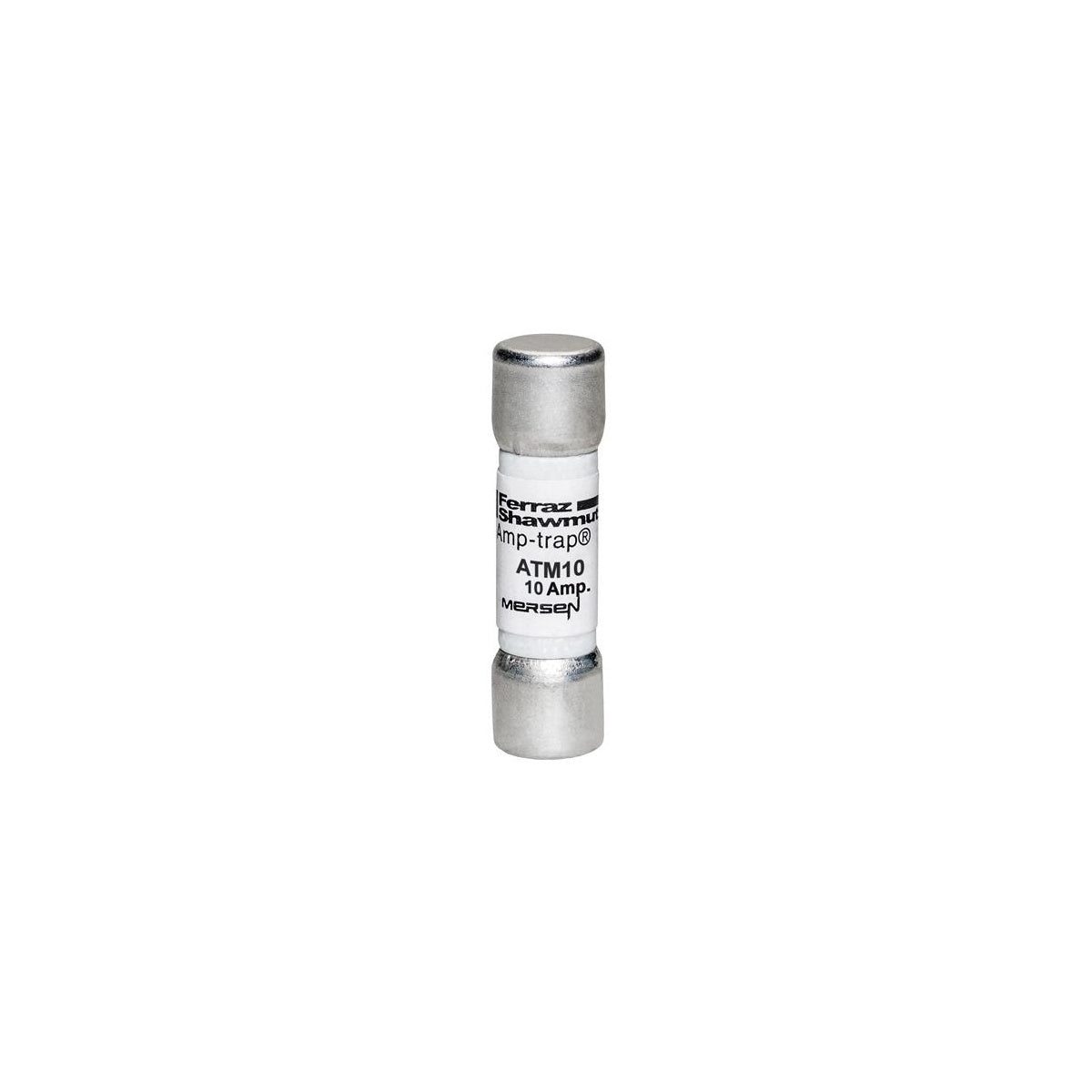

Fuse Amp-Trap® 600V 10A Fast-Acting Midget ATM Series – Electrical Protection Fuse

The Amp-Trap® 600V 10A Fast-Acting Midget ATM Series fuse is designed for supplemental protection of circuits up to 600VAC and 600VDC with a 100kA interrupting rating. This fuse is suitable for electrical distributors and switchgear suppliers requiring reliable protection for small motors, transformers, and circuits with high inrush currents. Its fast-acting characteristics and 600VDC rating make it applicable in lighting solutions, wire and cable systems, and photovoltaic or solar applications.

Specifications

• Voltage Rating: 600 VAC/DC
• Amperage Rating: 10 A
• Interrupt Rating: 100 kA
• Fuse Class: Midget
• Dimensions: 1.5 in (Length) x 0.41 in (Diameter)
• Connection: Ferrule
• Mounting Type: Clip
• Insulation Material: GMG
• Product Weight: 0.0170 lbs
• Manufacturer Part Number: ATM10

Features

• Fast-acting fuse for rapid circuit protection
• Extended ratings for special protection of capacitors and circuits with high inrush currents
• 600VDC rating suitable for photovoltaic and solar applications
• Compatible with UltraSafe™ fuse holders
• Compact 1 1/2" x 13/32" (38mm x 10mm) dimensions for space-efficient installation
