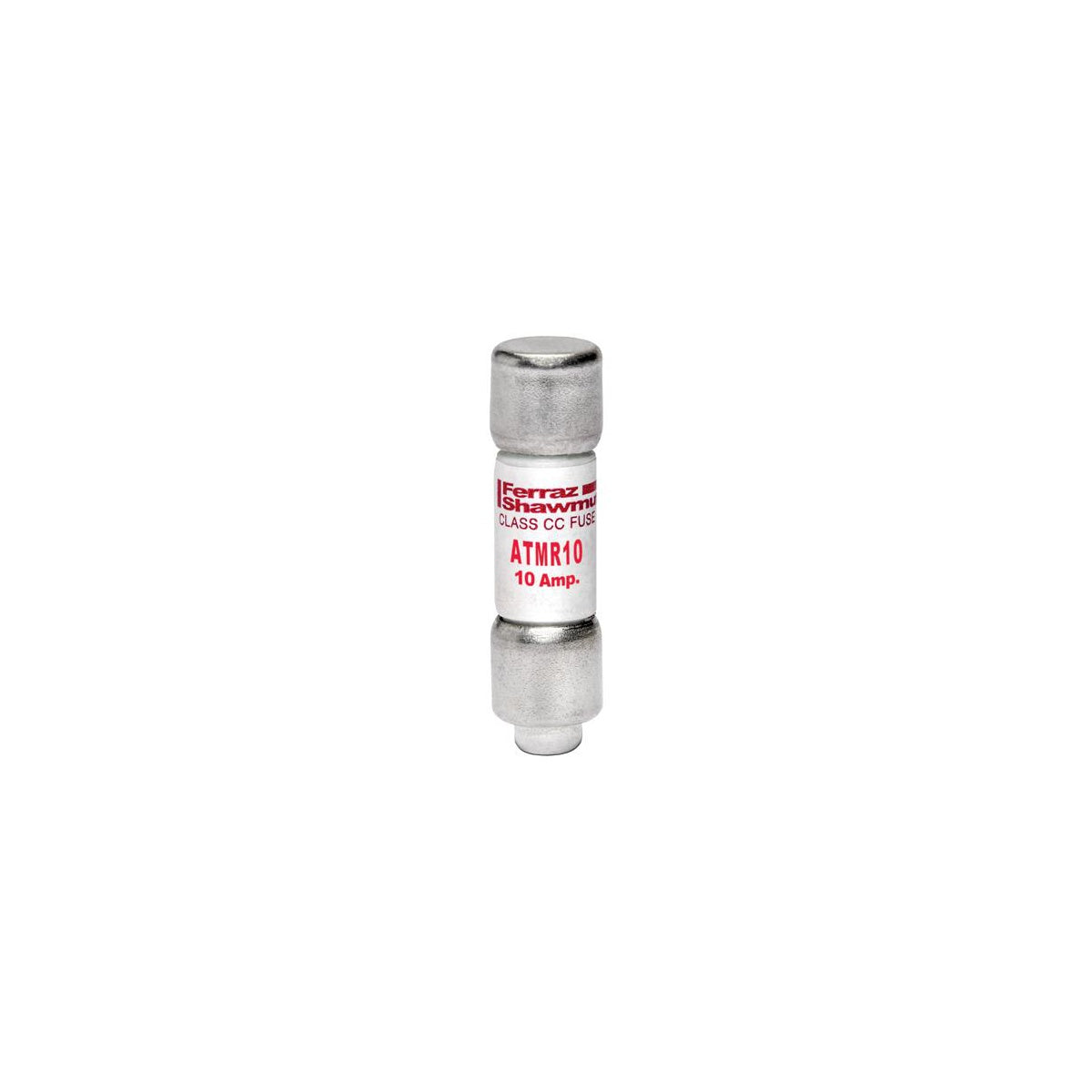

Fuse Amp-Trap® 600V 10A Fast-Acting Class CC ATMR Series
SKU: #195697
Part: #ATMR10
UPC: 782001904531
Fuse Amp-Trap® 600V 10A Fast-Acting Class CC ATMR Series
SKU: #195697
Part: #ATMR10
UPC: 782001904531
Description
Fuse Amp-Trap® 600V 10A Fast-Acting Class CC ATMR Series
The Amp-Trap® ATMR fuse is a fast-acting, current-limiting fuse designed for branch circuit protection in control circuits, lighting, general loads, and transformers. As a Class CC fuse, it is the smallest dimension 600VAC/DC fuse suitable for economical protection where available short circuit currents exceed 10,000 amperes. This fuse is an ideal choice for electrical distributors and switchgear suppliers seeking reliable protection solutions with rejection-style dimensions that prevent substitution by lower rated fuses.
Specifications
- Voltage Rating: 600VAC/DC
- Amperage Rating: 10 A
- Interrupting Rating: 200 kA AC, 100 kA DC
- Fuse Class: Class CC
- Frequency: 50 hertz
- Dimensions (L x W x H): 1.5 in x 0.41 in x 0.41 in
- Diameter: 0.41 inches
- Mounting Type: Clip
- Connection Type: Ferrule
- Insulation Material: GMG
- Product Weight: 0.0170 lbs
- Manufacturer: Mersen
- Manufacturer Part #: ATMR10
Features
- Fast-acting and very current-limiting for effective circuit protection
- Rejection-style design to prevent replacement errors with recommended fuse blocks
- Versatile for individual component and branch circuit protection
- Smallest dimension fuse in Class CC family for branch circuit applications
