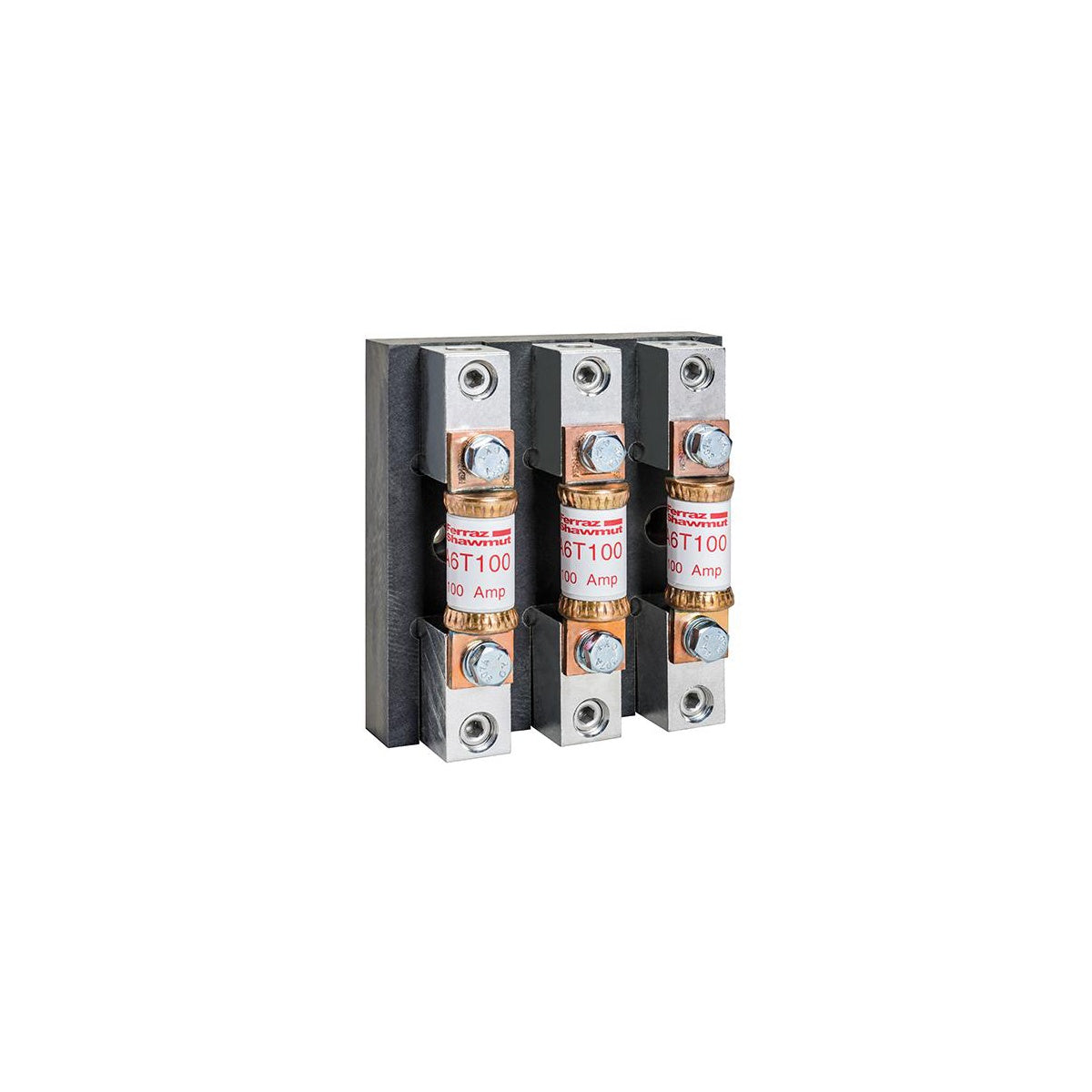

Fuse Amp-Trap® 600V 100A Fast-Acting Class T A6T Series
SKU: #195279
Part: #A6T100
UPC: 782001891435
Fuse Amp-Trap® 600V 100A Fast-Acting Class T A6T Series
SKU: #195279
Part: #A6T100
UPC: 782001891435
Description
Fuse Amp-Trap® 600V 100A Fast-Acting Class T A6T Series – Electrical Fuse
The Fuse Amp-Trap® 600V 100A Fast-Acting Class T A6T Series is designed for use in load centers, panelboards, switchboards, circuit breakers, and metering centers. This fast-acting fuse provides high current-limitation in a compact size, making it suitable for electrical distributors and switchgear suppliers requiring reliable protection in lighting solutions, wire and cable systems, and industrial electrical applications.
Specifications
- Amperage Rating: 100 A
- Voltage Rating: 600 V
- Interrupt Rating: 200 kA
- Fuse Class: Class T
- Connection: Blade
- Mounting Type: Bolted
- Dimensions (L x W x H): 2.95 in x 0.82 in x 0.82 in
- Diameter: 0.82 in
- Product Weight: 0.1040 lbs
- Insulation Material: GMG (Glass Melamine)
- Manufacturer: Mersen
- Manufacturer Part Number: A6T100
Features
- Fast-acting fuse with high current-limitation for enhanced circuit protection
- Compact physical size prevents substitution with lower voltage or less capable fuses
- Glass melamine body ensures superior dimensional stability
- Catalog numbers permanently stamped on blades for easy identification
