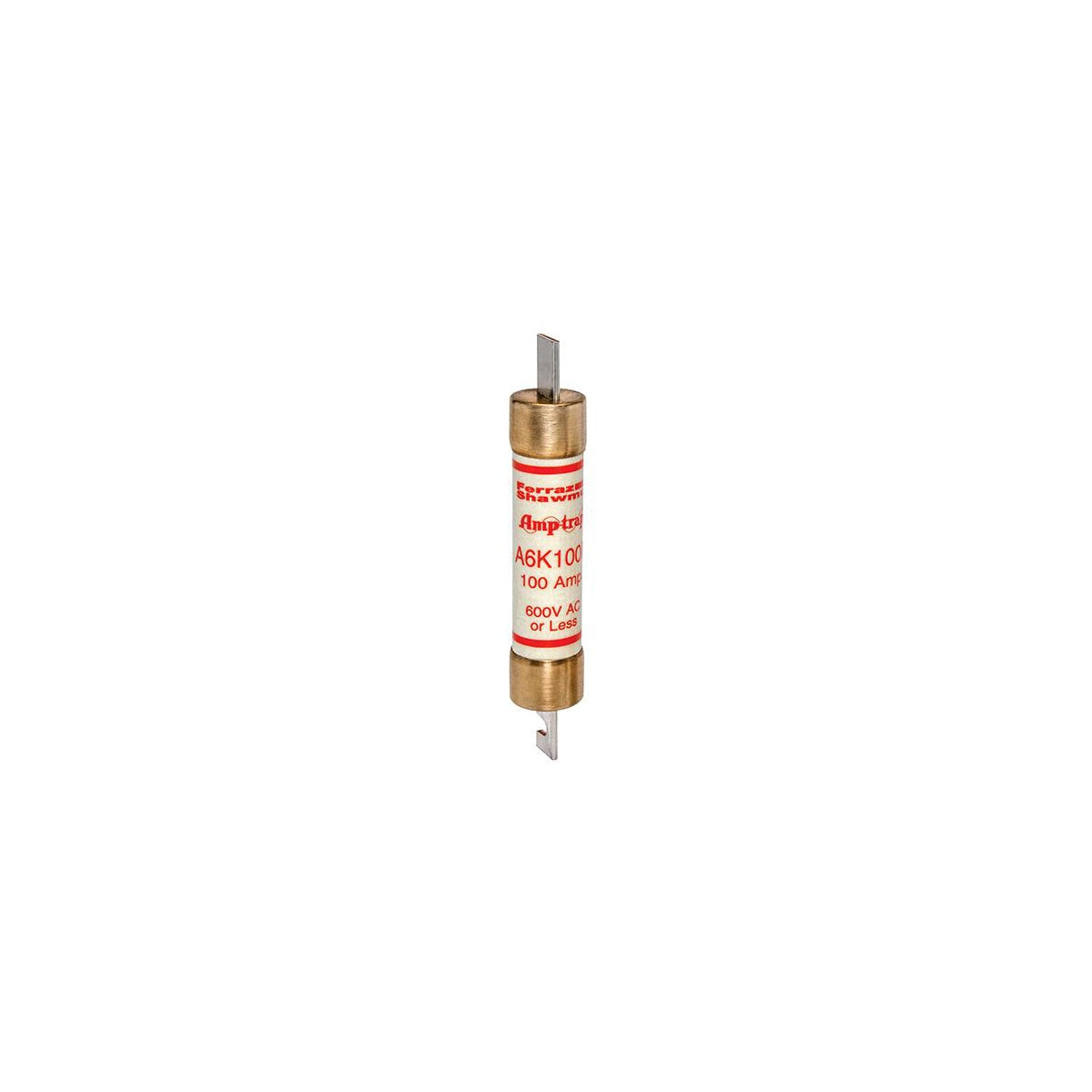

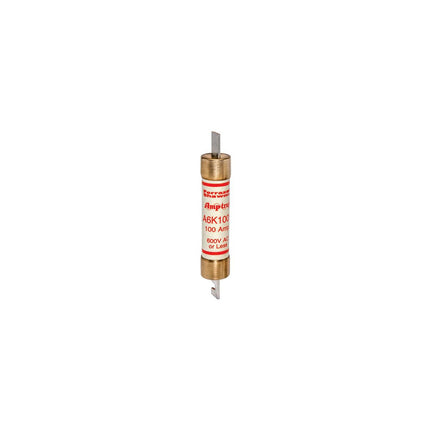

Fuse Amp-Trap® 600V 100A Fast-Acting Class RK1 A6K Series – Electrical Protection Fuse

The Fuse Amp-Trap® 600V 100A Fast-Acting Class RK1 A6K Series by Mersen is a current-limiting fuse designed for use in electrical distribution and lighting solutions. It provides fast-acting protection ideal for branch and feeder circuits, load centers, panelboards, switchboards, bus ducts, and lighting circuits. This fuse is especially suitable for applications requiring high available short-circuit current interruption and back-up protection in wire and cable systems.

Specifications

• Manufacturer: Mersen
• Amperage Rating: 100 A
• Voltage Rating: 600 V AC / 300 V DC
• Interrupt Rating: 200 kA
• Fuse Class: Class RK1
• Mounting Type: Clip
• Connection Type: Blade
• Insulation Material: PolyTube
• Dimensions: Length 7.88 in, Diameter 1.31 in, Width 1.31 in, Height 1.31 in
• Product Weight: 0.6990 lbs
• Manufacturer Part Number: A6K100R

Features

• Fast-acting for quick circuit interruption
• Current-limiting design reduces peak let-thru current
• Rejection style prevents replacement with incorrect fuse classes
• Fiberglass body for dimensional stability in harsh industrial environments
• Easy-to-read imprint label for quick identification and replacement
• UL listed to standard 248-12 and CSA certified to C22.2 No. 248.12
• Self-certified for DC applications per UL248
