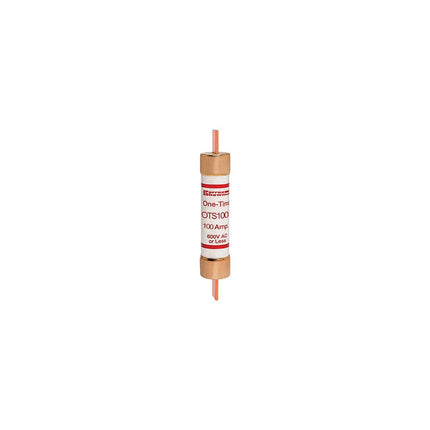

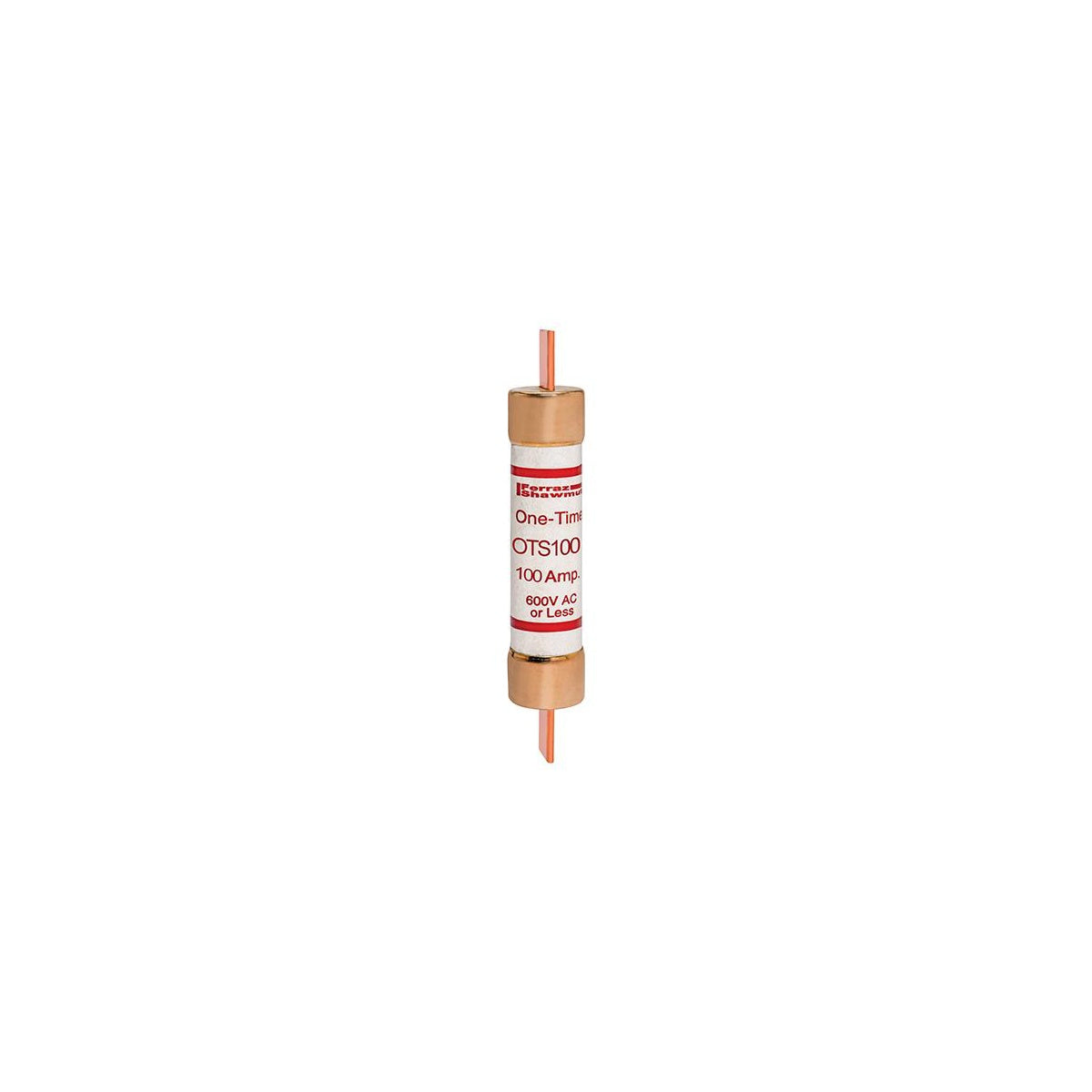

Fuse Amp-Trap® 600V 100A Fast-Acting Class K5 OTS Series
SKU: #196906
Part: #OTS100
UPC: 782001700867
Fuse Amp-Trap® 600V 100A Fast-Acting Class K5 OTS Series
SKU: #196906
Part: #OTS100
UPC: 782001700867
Description
Fuse Amp-Trap® 600V 100A Fast-Acting Class K5 OTS Series Fuse
The Fuse Amp-Trap® 600V 100A Fast-Acting Class K5 OTS Series is designed for general purpose electrical protection in feeders and branch circuits, particularly for resistive heating, lighting, and other non-motor loads. This fuse is suitable for residential and small commercial installations and is offered by a reputable electrical distributor for reliable circuit protection. It features a fast-acting response and a high interrupting rating to safely handle short circuit currents up to 50,000 amperes, making it a dependable component in wire and cable systems and switchgear assemblies.
Specifications
- Amperage Rating: 100 A
- Voltage Rating: 600 V AC
- Interrupting Rating: 50 kA
- Fuse Class: Class K5
- Dimensions: Length 7.88 in, Diameter 1.31 in
- Mounting Type: Clip
- Connection Type: Blade
- Insulation Material: PolyTube
- Product Weight: 0.5290 lbs
- Manufacturer Part Number: OTS100
Features
- One-time use, general purpose fuse providing low-cost protection
- Fast-acting design suitable for non-inductive loads
- Safe interruption of short circuit currents up to 50,000 amperes
- Easy-to-read imprint label for quick identification and replacement
- Compatible with residential and small commercial feeder and branch circuits
