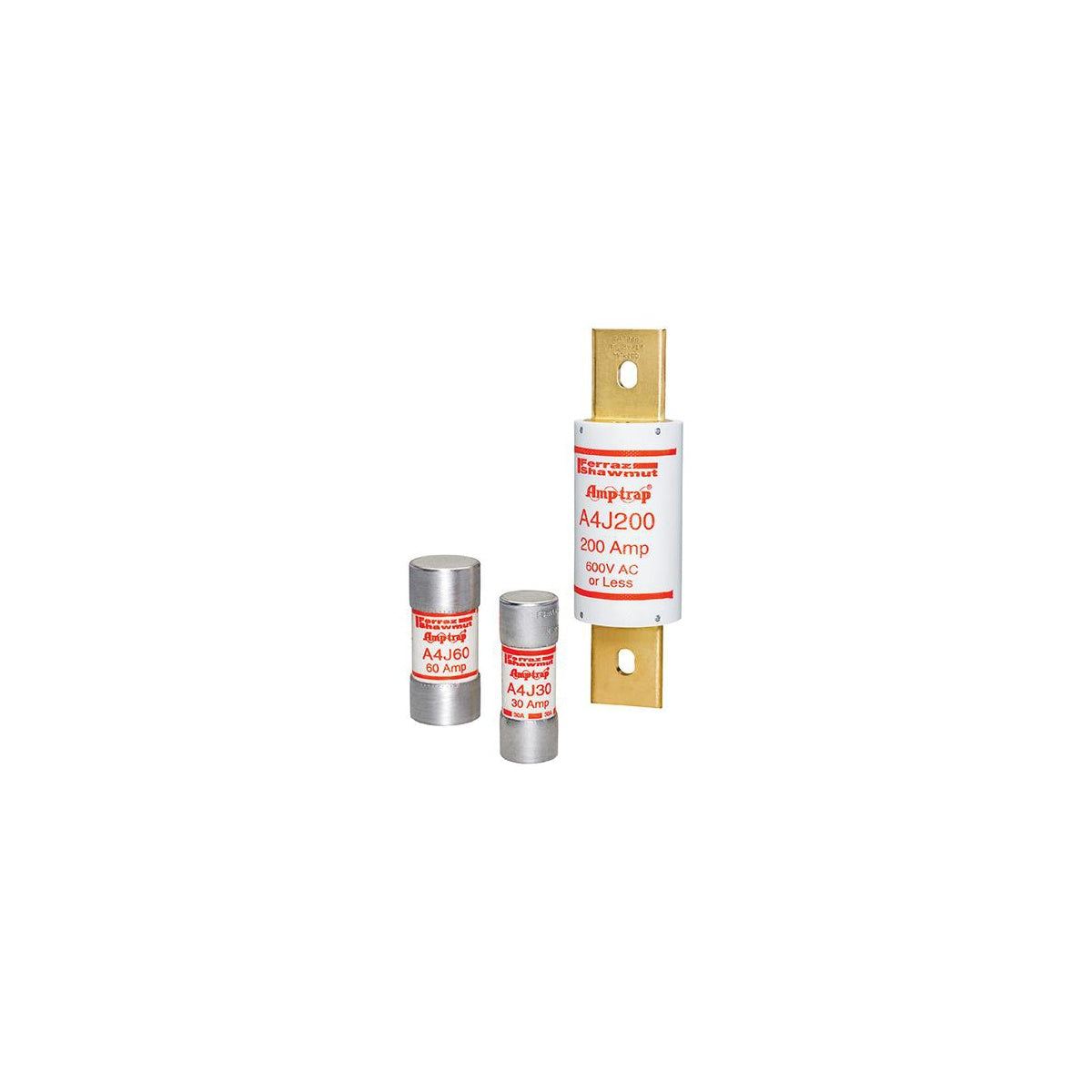

Fuse Amp-Trap® 600V 100A Fast-Acting Class J A4J Series

The Fuse Amp-Trap® 600V 100A Fast-Acting Class J A4J Series by Mersen provides excellent current-limiting protection for a broad range of electrical distributor and lighting solutions applications. This fuse is designed for use in wire and cable protection, switchgear supplier systems, and electrical equipment such as capacitors, load centers, panelboards, switchboards, bus ducts, feeder circuits, circuit breakers, and lighting, heating, and general loads.

Specifications

• Manufacturer: Mersen
• Amperage Rating: 100 A
• Voltage Rating: 600 VAC, 300 VDC
• Interrupt Rating: 200 kA AC
• Fuse Class: Class J
• Dimensions: Length 4.63 in, Width 1.06 in, Height 1.06 in, Diameter 1.06 in
• Mounting Type: Clip
• Connection Type: Blade
• Insulation Material: GMG
• Product Weight: 0.24 lbs
• Manufacturer Part Number: A4J100

Features

• Fast-acting fuse with very current-limiting characteristics
• Unique dimensions prevent substitution with lower voltage rated or less capable fuses
• High current limitation for low peak let-thru current
• Fiberglass body provides dimensional stability in harsh industrial environments
• Easy-to-read imprint label for quick recognition and replacement
• UL listed to standard 248-8 and CSA certified to standard C22.2 no. 248.8
• DC rated and IEC 269-2-1 compliant
