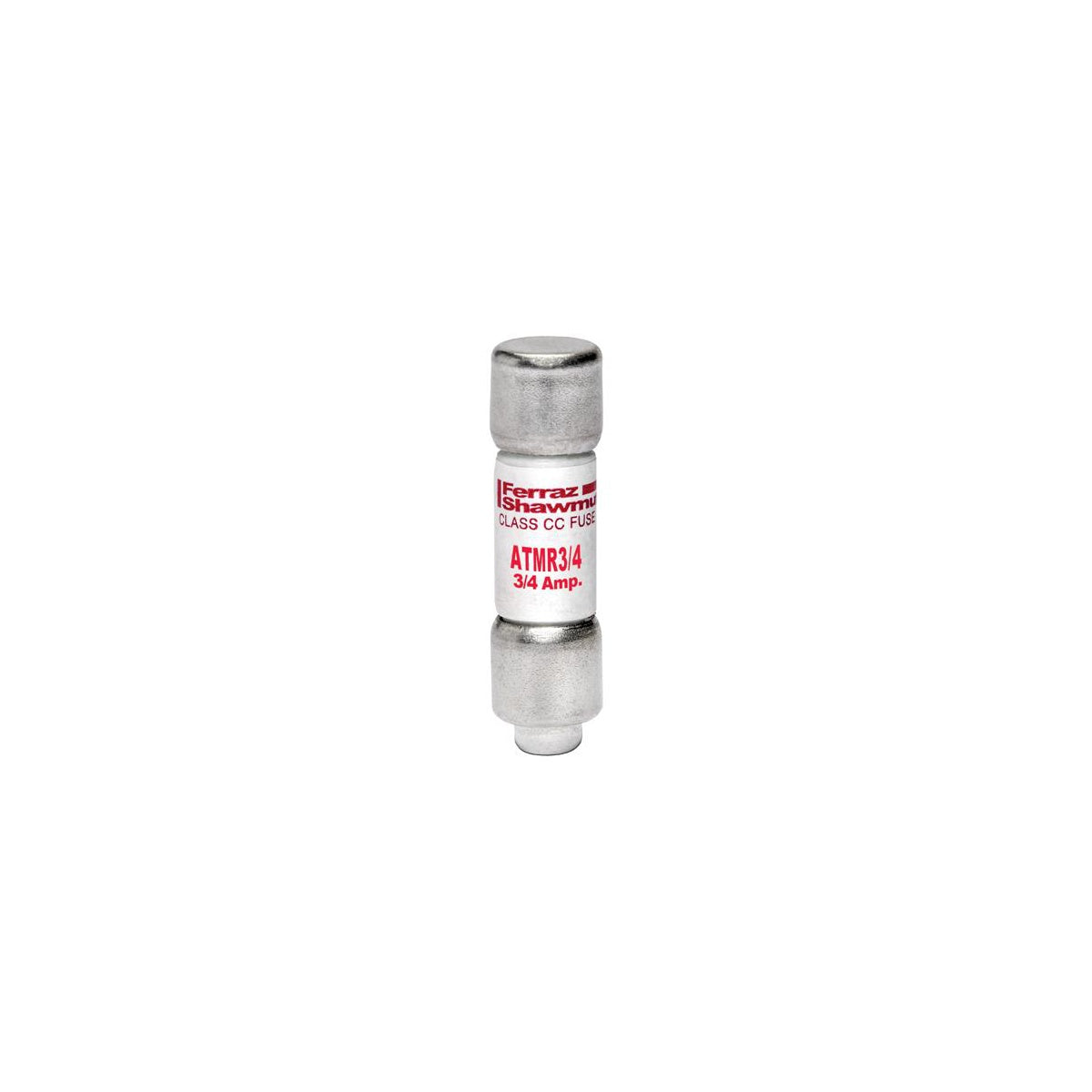

Fuse Amp-Trap® 600V 0.75A Fast-Acting Class CC ATMR Series
SKU: #195747
Part: #ATMR3/4
UPC: 782001903817
Fuse Amp-Trap® 600V 0.75A Fast-Acting Class CC ATMR Series
SKU: #195747
Part: #ATMR3/4
UPC: 782001903817
Description
Fuse Amp-Trap® 600V 0.75A Fast-Acting Class CC ATMR Series
The Amp-Trap® ATMR fuse is a fast-acting, current-limiting fuse designed for branch circuit protection in control circuits, lighting, and general load applications. As a Class CC fuse rated for 600V AC/DC, it is suitable for use where short circuit currents exceed 10,000 amperes. This fuse is commonly utilized by electrical distributors and switchgear suppliers for economical and reliable protection of control circuit transformers and general circuits.
Specifications
- Voltage Rating: 600 VAC / DC
- Amperage Rating: 0.75 A
- Interrupt Rating: 200 kA
- Frequency: 50 hertz
- Dimensions: 1.5 in (Length) x 0.41 in (Width) x 0.41 in (Height)
- Diameter: 0.41 inches
- Mounting Type: Clip
- Connection Type: Ferrule
- Insulation Material: GMG
- Fuse Class: Class CC
- Product Weight: 0.0170 lbs
- Manufacturer: Mersen
- Manufacturer Part Number: ATMR3/4
Features
- Fast-acting and very current-limiting for effective circuit protection
- Rejection-style design prevents substitution with lower-rated fuses
- Smallest dimension 600V fuse suitable for branch circuit protection
- Versatile design for individual component and branch circuit protection
- UL Listed to Standard 248-4 and CSA Certified to Standard C22.2 No. 248.4
- DC listed to UL Standard 248
