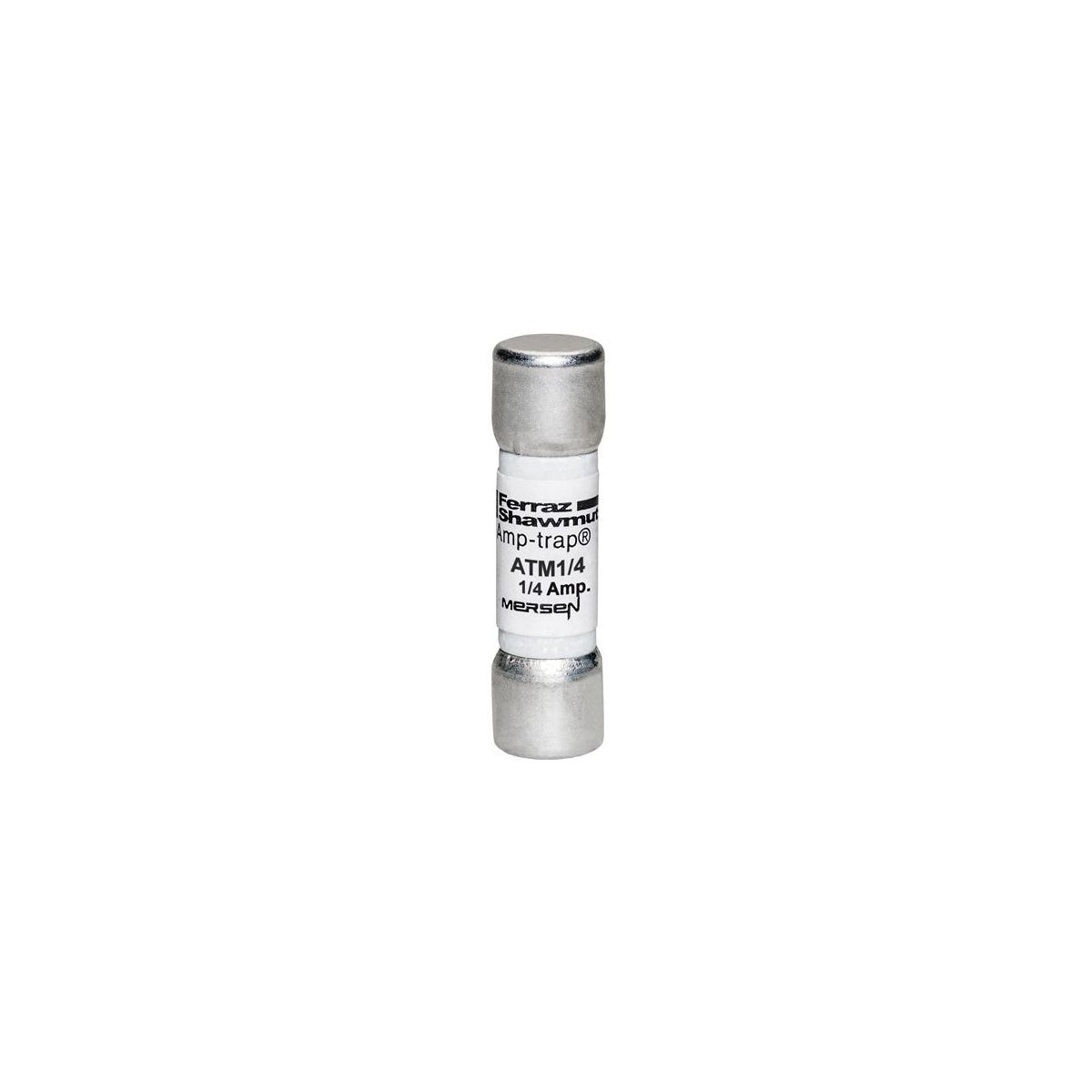

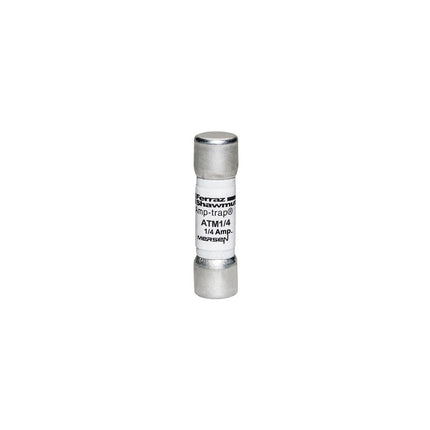

Fuse Amp-Trap® 600V 0.25A Fast-Acting Midget ATM Series
SKU: #195630
Part: #ATM1/4
UPC: 782001900663
Fuse Amp-Trap® 600V 0.25A Fast-Acting Midget ATM Series
SKU: #195630
Part: #ATM1/4
UPC: 782001900663
Description
Fuse Amp-Trap® 600V 0.25A Fast-Acting Midget ATM Series – Electrical Protection Fuse
The Fuse Amp-Trap® 600V 0.25A Fast-Acting Midget ATM Series is designed for supplemental protection of circuits up to 600VAC and 600VDC with a high interrupting rating of 100kA. This fuse is suitable for applications requiring fast-acting protection, including capacitor protection, and is ideal for use by electrical distributors and switchgear suppliers focusing on reliable wire and cable protection solutions.
Specifications
- Amperage Rating: 0.25 A
- Voltage Rating: 600 volts AC and DC
- Interrupt Rating: 100 kA
- Fuse Class: Midget
- Dimensions: Length 1.5 in, Diameter 0.41 in, Width 0.41 in, Height 0.41 in
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: GMG
- Product Weight: 0.0170 lbs
- Manufacturer: Mersen
- Manufacturer Part Number: ATM1/4
- UPC: 782001900663
Features
- Fast-acting fuse capable of withstanding high inrush currents
- Rated for supplemental circuit protection, not for branch circuit protection
- High interrupting rating of 100kA ensures reliable circuit interruption under fault conditions
- Compact midget size suitable for applications requiring space-efficient protection
- Specific amperage options available for capacitor protection applications
