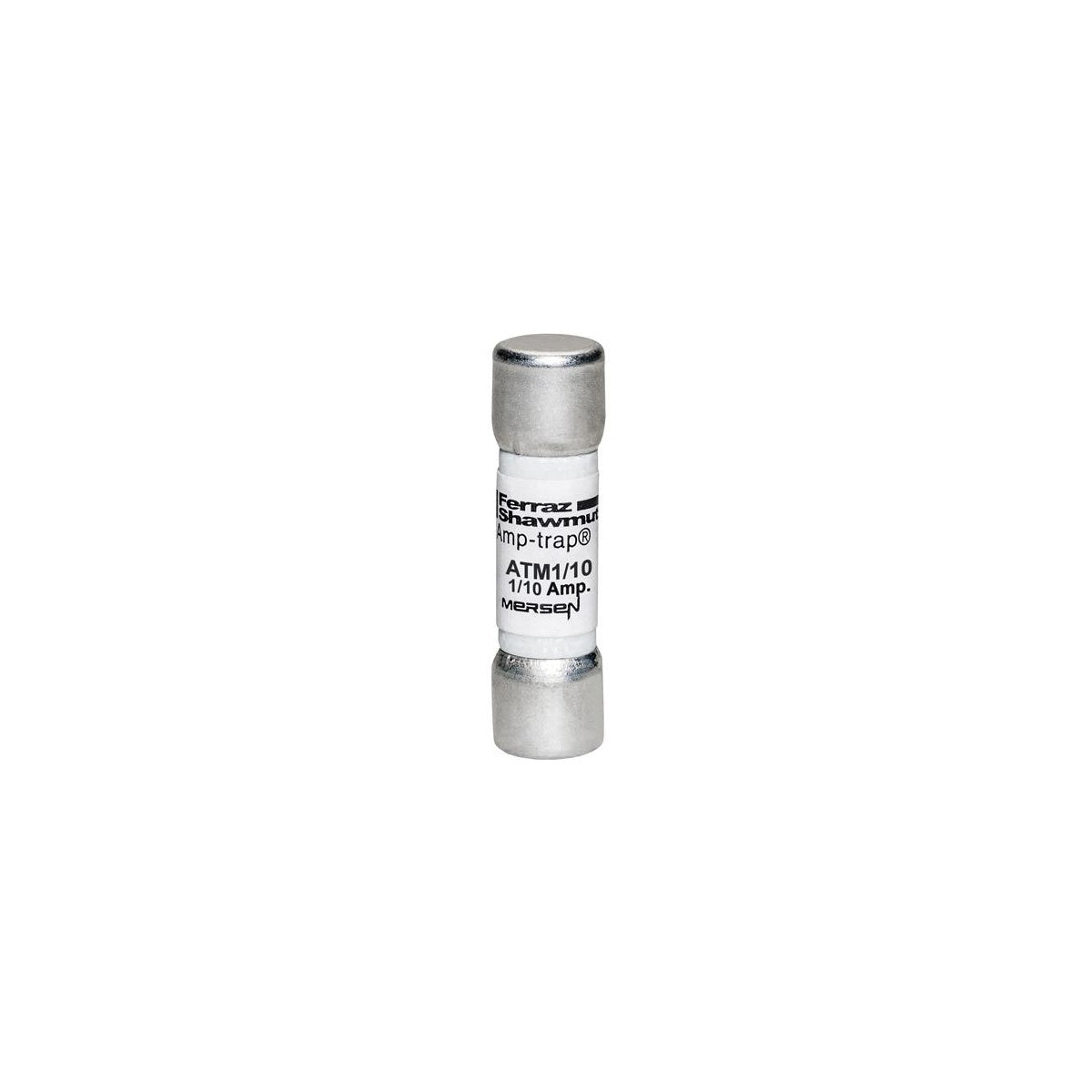

Fuse Amp-Trap® 600V 0.1A Fast-Acting Midget ATM Series – Electrical Fuse

The Fuse Amp-Trap® 600V 0.1A Fast-Acting Midget ATM Series is designed for supplemental protection of circuits up to 600VAC and 600VDC with a high interrupting rating of 100kA. This fuse is suitable for applications requiring fast-acting protection in electrical distribution, lighting solutions, and wire and cable systems. It is not intended for branch circuit protection but is ideal for capacitor protection and other specialized uses within switchgear and electrical distributor environments.

Specifications

• Amperage Rating: 0.1 A
• Voltage Rating: 600 V AC/DC
• Interrupt Rating: 100 kA
• Fuse Class: Midget
• Dimensions: 1.5 in (Length) x 0.41 in (Diameter, Width, Height)
• Mounting Type: Clip
• Connection: Ferrule
• Insulation Material: GMG
• Product Weight: 0.0170 lb
• Manufacturer: Mersen
• Manufacturer Part #: ATM1/10

Features

• Fast-acting midget fuse offering quick response to overcurrent conditions
• Rated for both AC and DC applications up to 600 volts
• High interrupting rating of 100kA ensures safe circuit interruption under fault conditions
• Capable of handling tough duty cycles and high inrush currents, especially in capacitor protection
• Compact size consistent with 30A fuse dimensions while supporting higher performance
• Clip mounting for easy installation and replacement
