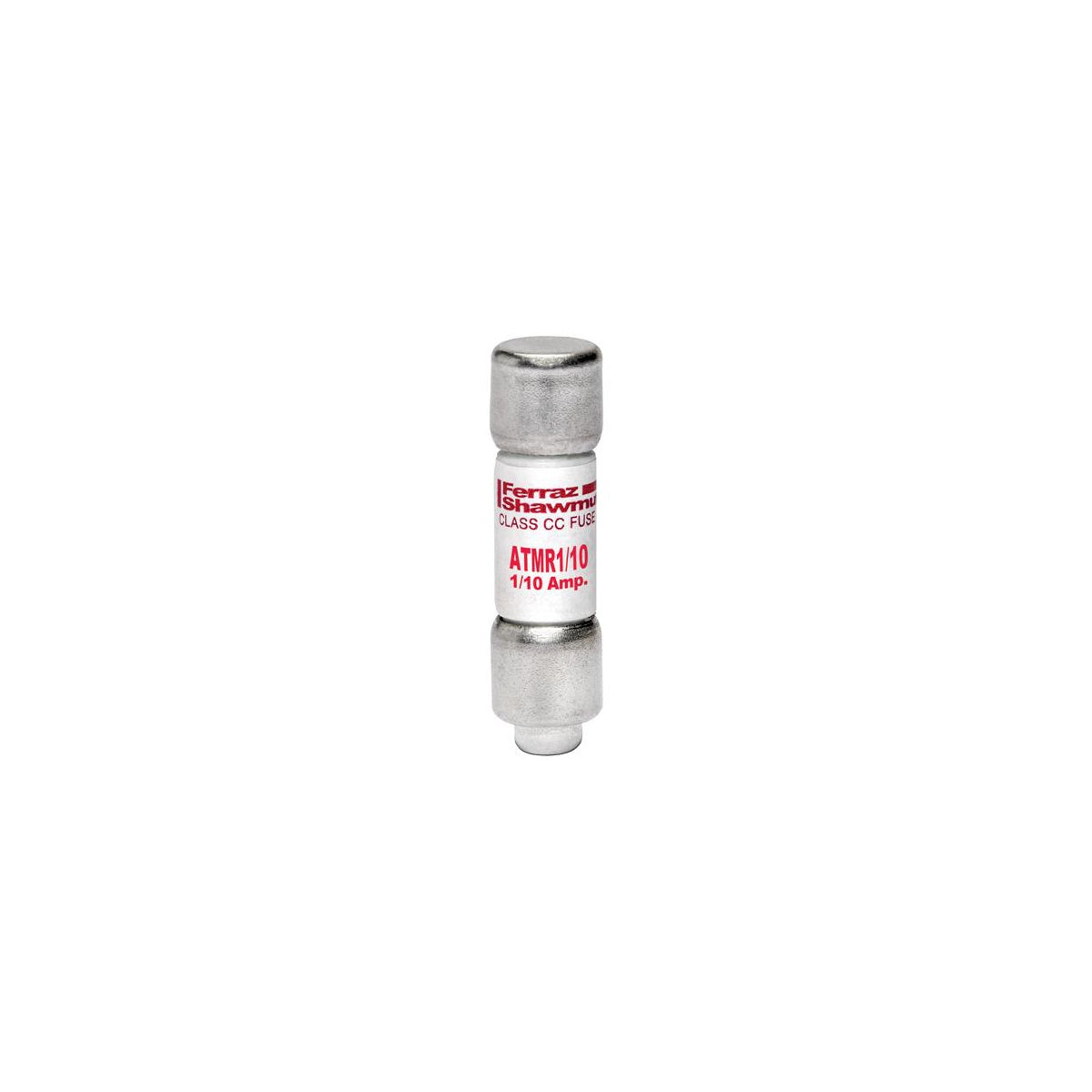

Fuse Amp-Trap® 600V 0.1A Fast-Acting Class CC ATMR Series
SKU: #195683
Part: #ATMR1/10
UPC: 782001903367
Fuse Amp-Trap® 600V 0.1A Fast-Acting Class CC ATMR Series
SKU: #195683
Part: #ATMR1/10
UPC: 782001903367
Description
Fuse Amp-Trap® 600V 0.1A Fast-Acting Class CC ATMR Series
The Amp-Trap® ATMR fast-acting fuse is a Class CC rated component designed for branch circuit protection in control circuits, lighting, and general loads. It offers current-limiting protection for electrical distributors, lighting solutions, and wire and cable applications where short circuit currents exceed 10,000 amperes. The fuse features rejection-style dimensions to prevent substitution with lower-rated fuses, ensuring reliable protection in switchgear and control circuit transformers.
Specifications
- Voltage Rating: 600VAC / DC
- Amperage Rating: 0.1 A
- Interrupt Rating: 200 kA
- Frequency: 50 hertz
- Fuse Class: Class CC
- Dimensions: 1.5 in (Length) x 0.41 in (Width) x 0.41 in (Height)
- Diameter: 0.41 inches
- Product Weight: 0.0170 lbs
- Connection Type: Ferrule
- Mounting Type: Clip
- Insulation Material: GMG
- Manufacturer: Mersen
- Manufacturer Part #: ATMR1/10
Features
- Fast-acting fuse providing very current-limiting protection
- Smallest dimension 600V fuse suitable for branch circuit protection
- Rejection-style design prevents replacement errors with recommended fuse blocks
- Versatile design for individual component and branch circuit protection
- UL Listed to Standard 248-4 and CSA Certified to Standard C22.2 No. 248.4
- Suitable for control circuits, lighting, general loads, and branch circuit protection
