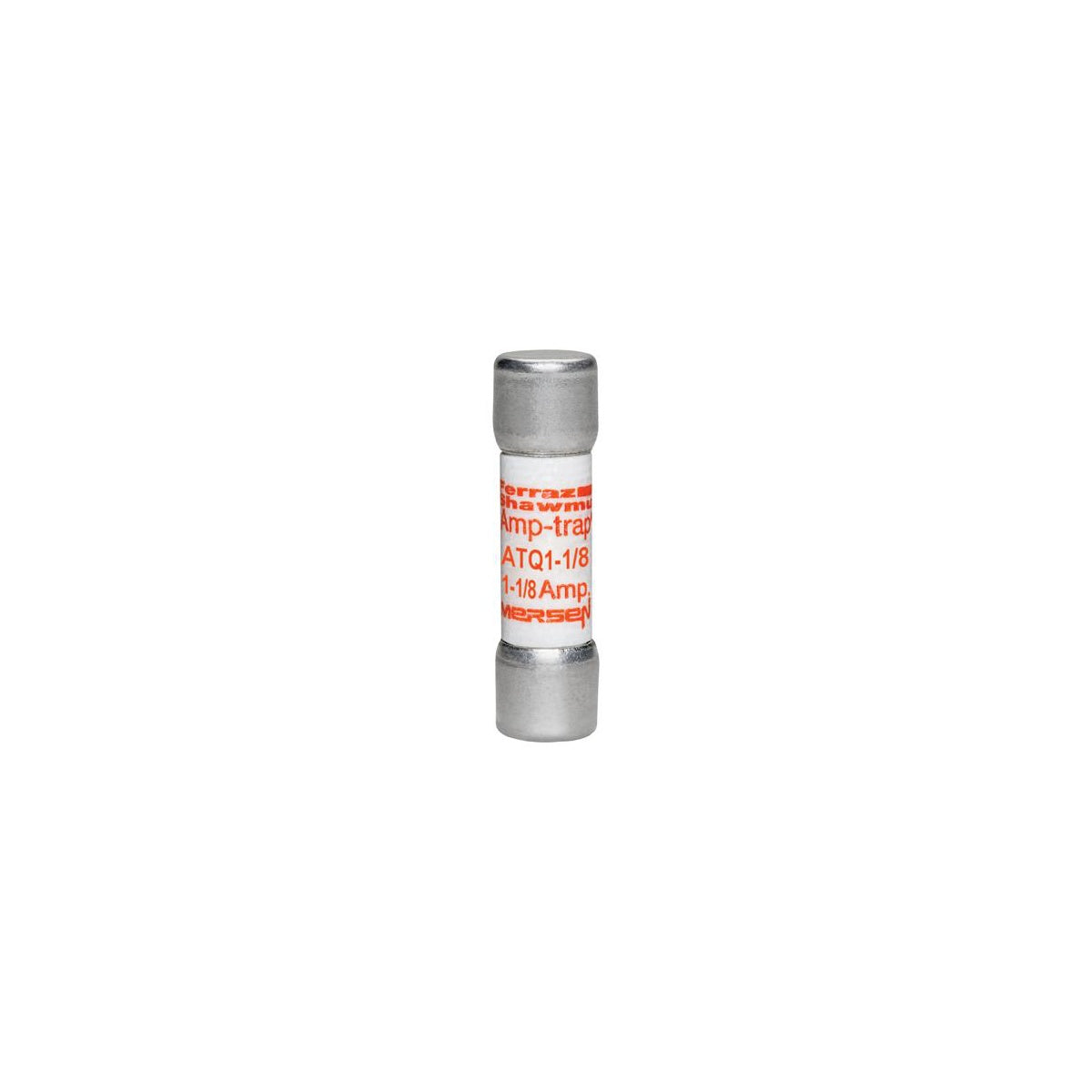

Fuse Amp-Trap® 500V 1.125A Time-Delay Midget ATQ Series
SKU: #195814
Part: #ATQ1-1/8
UPC: 782001903497
Fuse Amp-Trap® 500V 1.125A Time-Delay Midget ATQ Series
SKU: #195814
Part: #ATQ1-1/8
UPC: 782001903497
Description
Fuse Amp-Trap® 500V 1.125A Time-Delay Midget ATQ Series
The Amp-Trap® ATQ time-delay midget fuse is designed for supplemental protection of lighting, solenoid, motor, and transformer circuits. Rated for 500 volts AC and available in amperage ratings from 1/10 to 30 amps, it is suitable for circuits where the available short circuit current does not exceed 10,000 amps. This fuse is not intended for branch circuit protection. It is compatible with UltraSafe™ fuse holders and provides reliable protection in various electrical distribution and lighting solutions.
Specifications
- Voltage Rating: 500 VAC
- Amperage Rating: 1.125 A
- Interrupt Rating: 10 kA
- Fuse Class: Midget
- Dimensions: 1.5 in (Length) x 0.41 in (Width & Height)
- Diameter: 0.41 in
- Mounting Type: Clip
- Connection Type: Ferrule
- Insulation Material: GMG
- Product Weight: 0.0140 lbs
- Manufacturer: Mersen
- Manufacturer Part Number: ATQ1-1/8
Features
- Time-delay operation (12 seconds at 200% rating) for circuits with high inrush current
- Wide range of amperage ratings for various applications up to 500 VAC
- Designed for supplemental circuit protection, not branch circuit protection
- Compatible with UltraSafe™ fuse holders for enhanced safety
- Compact midget size for space-efficient installation
