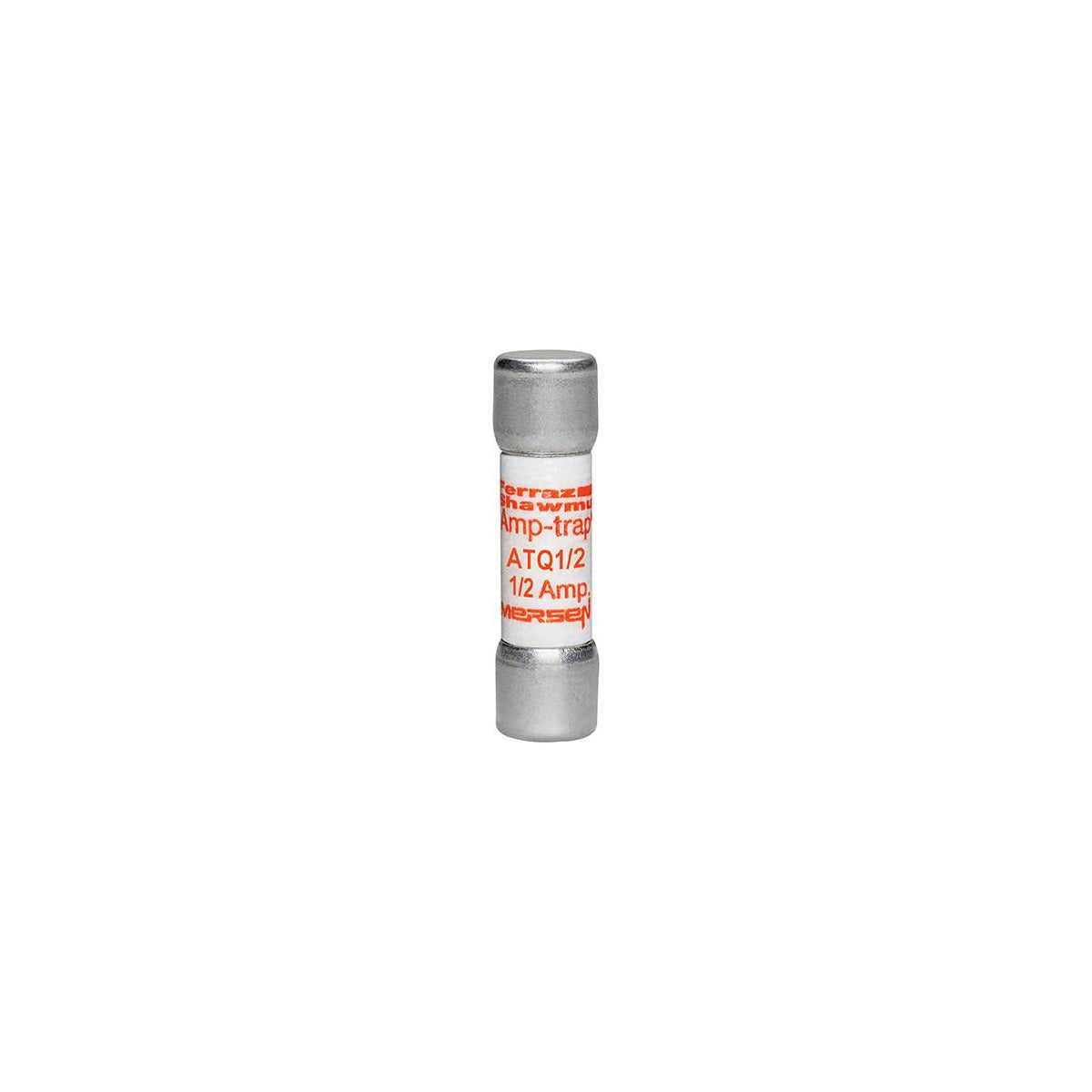

Fuse Amp-Trap® 500V 0.5A Time-Delay Midget ATQ Series
SKU: #195825
Part: #ATQ1/2
UPC: 782001902667
Fuse Amp-Trap® 500V 0.5A Time-Delay Midget ATQ Series
SKU: #195825
Part: #ATQ1/2
UPC: 782001902667
Description
Fuse Amp-Trap® 500V 0.5A Time-Delay Midget ATQ Series
The Amp-Trap ATQ fuse is a time-delay midget fuse rated for 500VAC, designed for supplemental protection of lighting, solenoid, motor, and transformer circuits. It is suitable for applications where the available short circuit current does not exceed 10,000A, making it a reliable choice for electrical distributors and lighting solutions providers requiring wire and cable protection components or switchgear suppliers needing dependable circuit protection.
Specifications
- Amperage Rating: 0.5 A
- Voltage Rating: 500 VAC
- Interrupt Rating: 10 kA
- Fuse Class: Midget
- Dimensions: Length 1.5 in, Width 0.41 in, Height 0.41 in, Diameter 0.41 in
- Mounting Type: Clip
- Connection Type: Ferrule
- Insulation Material: GMG
- Product Weight: 0.0140 lbs
- Manufacturer: Mersen
- Manufacturer Part Number: ATQ1/2
Features
- Time-delay action for circuits with high inrush currents
- Rated for supplemental circuit protection, not for branch circuit protection
- Compatible with UltraSafe‚Ñ¢ fuse holders
- Wide amperage range available (1/10 to 30A) for various applications
