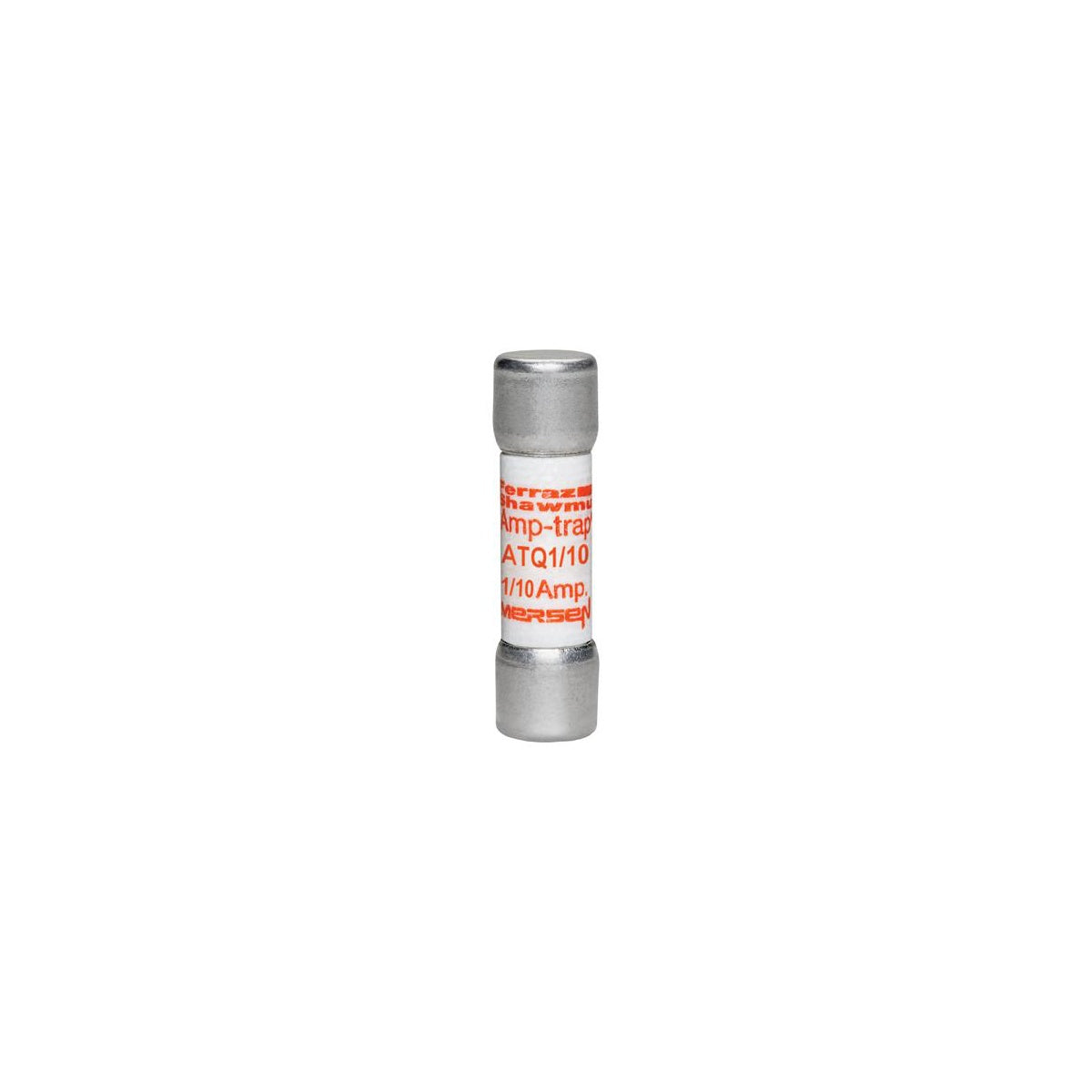

Fuse Amp-Trap® 500V 0.1A Time-Delay Midget ATQ Series
SKU: #195818
Part: #ATQ1/10
UPC: 782001902445
Fuse Amp-Trap® 500V 0.1A Time-Delay Midget ATQ Series
SKU: #195818
Part: #ATQ1/10
UPC: 782001902445
Description
Fuse Amp-Trap® 500V 0.1A Time-Delay Midget ATQ Series – Electrical Protection
The Fuse Amp-Trap® 500V 0.1A Time-Delay Midget ATQ Series by Mersen provides supplemental protection for lighting, solenoid, motor, and transformer circuits. Designed for electrical distributors and switchgear suppliers, this fuse is rated for 500VAC and features a time-delay characteristic suitable for circuits with high inrush currents. It is ideal for use where the available short circuit current does not exceed 10,000A, supporting safe and reliable operation in lighting solutions and wire and cable applications.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: ATQ1/10
- Fuse Class: Midget
- Amperage Rating: 0.1 A
- Interrupt Rating: 10 kA
- Voltage Rating: 500 VAC
- Dimensions: 1.5 in (Length) x 0.41 in (Width) x 0.41 in (Height)
- Diameter: 0.41 inches
- Mounting Type: Clip
- Connection Type: Ferrule
- Insulation Material: GMG
- Product Weight: 0.0140 lbs
Features
- Time-delay design allows for 200% of rated current for up to 12 seconds, accommodating high inrush currents
- Suitable for supplemental protection of circuits up to 30A with short circuit currents below 10,000A
- Compact midget size (10mm x 38mm) for space-efficient installation
- Compatible with UltraSafe™ fuse holders
