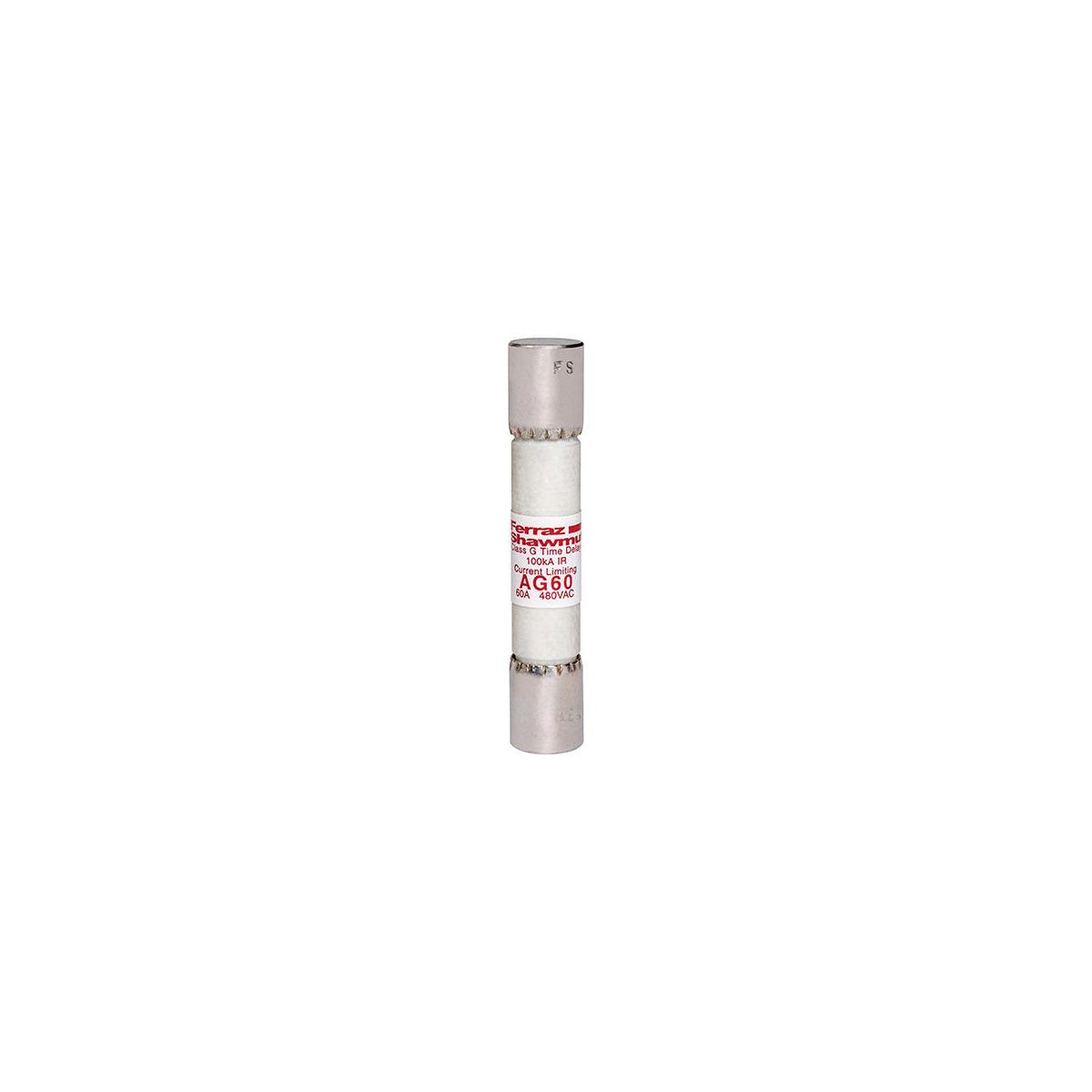

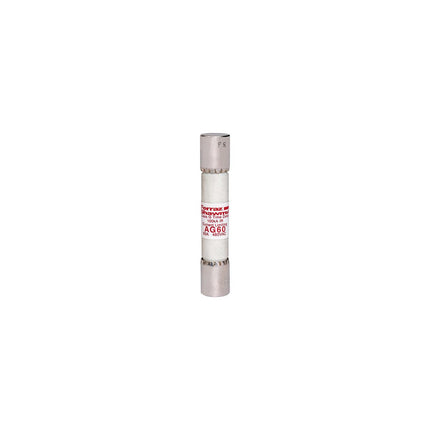

Fuse Amp-Trap® 480V 60A Time-Delay Class G AG Series
SKU: #195407
Part: #AG60
UPC: 782001905224
Fuse Amp-Trap® 480V 60A Time-Delay Class G AG Series
SKU: #195407
Part: #AG60
UPC: 782001905224
Description
Fuse Amp-Trap® 480V 60A Time-Delay Class G AG Series
The Mersen Amp-Trap AG fuse series is a UL/CSA listed Class G fuse designed for branch-circuit protection in lighting, heating, and appliance applications. This 480V 60A time-delay fuse provides current-limiting protection suitable for electrical distributors and switchgear suppliers requiring reliable protection in industrial and commercial environments.
Specifications
- Manufacturer: Mersen
- Fuse Class: Class G
- Voltage Rating: 480 VAC
- Amperage Rating: 60 A
- Interrupt Rating: 100 kA
- Mounting Type: Clip
- Connection Type: Ferrule
- Dimensions: Length 2.25 in, Diameter 0.41 in, Width 0.41 in, Height 0.41 in
- Insulation Material: GMG
- Manufacturer Part Number: AG60
- Product Weight: 0.0370 lbs
Features
- Time-delay fuse for protection of circuits with temporary surges (above 5A)
- Current-limiting design to reduce damage during fault conditions
- Fiberglass body provides dimensional stability in harsh industrial settings
- Four unique physical sizes to prevent interchangeability with other fuse classes
- UL listed to standard 248-5 and CSA certified to standard C22.2 No. 248.5
