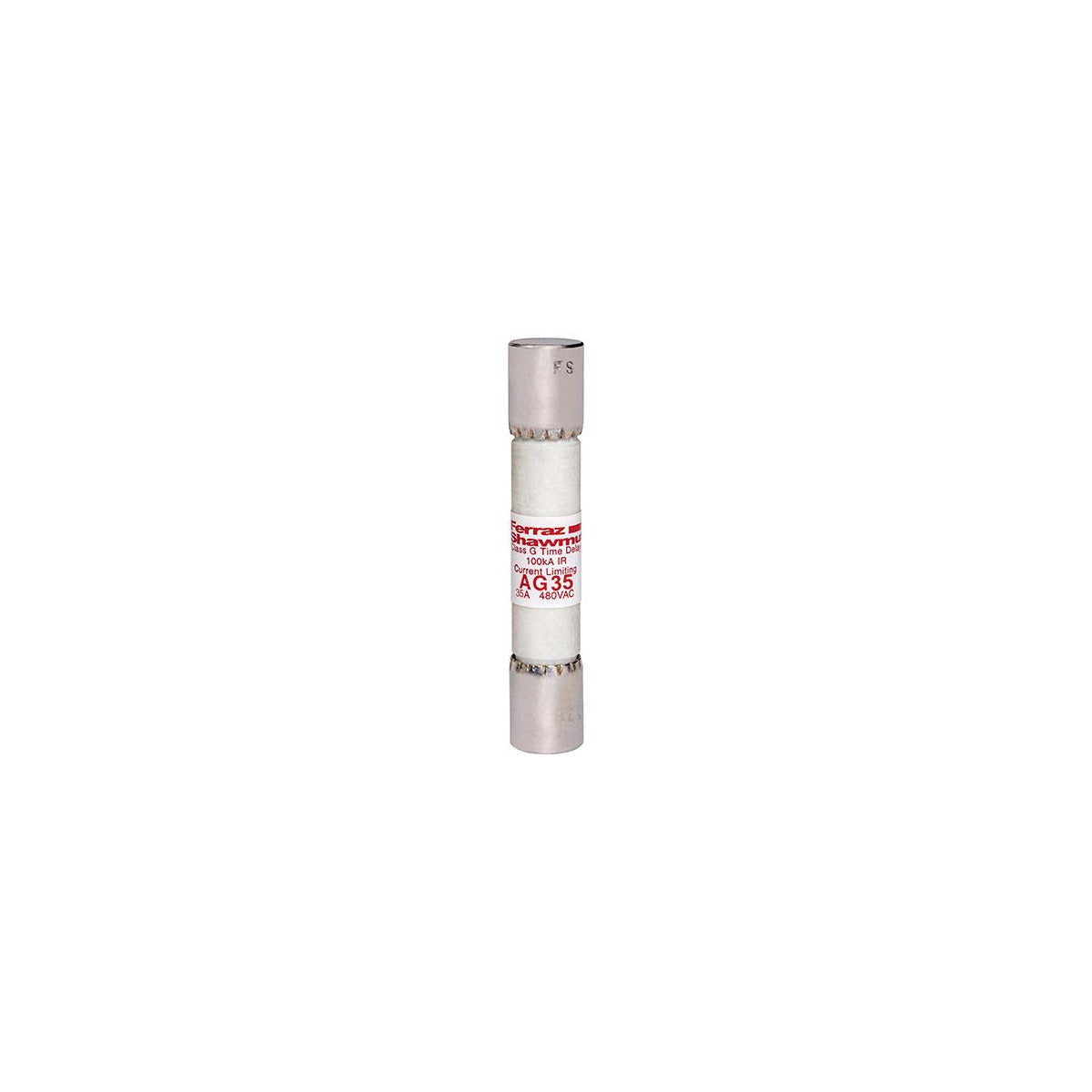

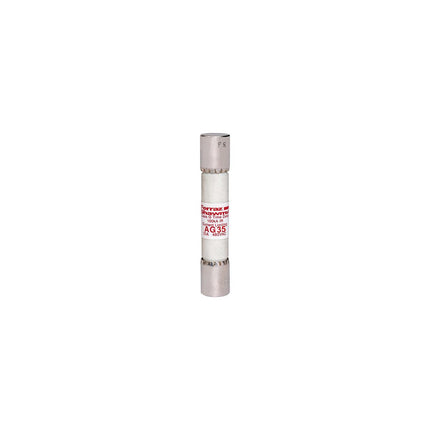

Fuse Amp-Trap® 480V 35A Time-Delay Class G AG Series

The Mersen Amp-Trap AG fuse series is a complete line of UL Listed Class G fuses with time-delay (above 5A rating). Designed for branch-circuit protection, these fuses are suitable for lighting, heating, and appliance circuits in industrial and commercial applications. As a reliable component in electrical distribution and lighting solutions, this fuse supports current-limiting protection with a 100kA interrupt rating at 480VAC.

Specifications

• Manufacturer: Mersen
• Amperage Rating: 35 A
• Voltage Rating: 480 VAC
• Interrupt Rating: 100 kA
• Fuse Class: Class G
• Mounting Type: Clip
• Connection: Ferrule
• Insulation Material: GMG
• Dimensions (L×W×H): 2.25 in × 0.41 in × 0.41 in
• Diameter: 0.41 inches
• Product Weight: 0.0370 lbs
• Manufacturer Part #: AG35

Features

• Time-delay fuse for protection of lighting, heating, and appliance circuits
• Four unique sizes from ½ to 60 amperes prevent interchangeability with other fuse classes
• Fiberglass body provides dimensional stability in harsh industrial environments
• Current-limiting capability enhances circuit protection
• UL listed to standard 248-5 and CSA certified to standard C22.2 No. 248.5
