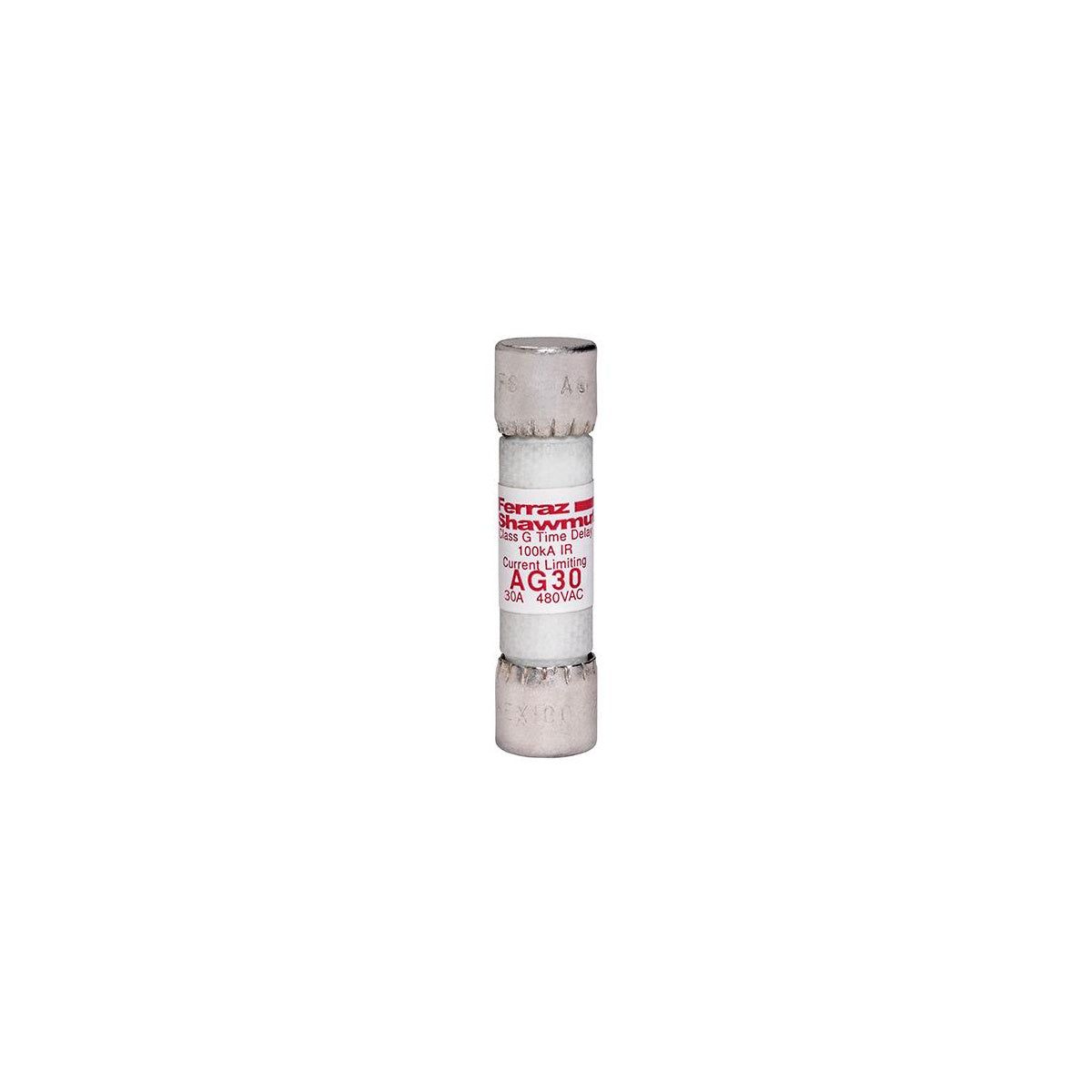

Fuse Amp-Trap® 480V 30A Time-Delay Class G AG Series
SKU: #195384
Part: #AG30
UPC: 782001905170

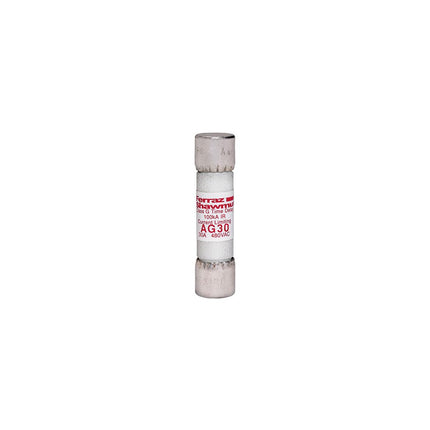

Fuse Amp-Trap® 480V 30A Time-Delay Class G AG Series
SKU: #195384
Part: #AG30
UPC: 782001905170
Description
Fuse Amp-Trap® 480V 30A Time-Delay Class G AG Series
The Mersen Amp-Trap AG fuse series is a UL/CSA listed Class G fuse designed for branch-circuit protection in lighting, heating, and appliance applications. This 30-amp, 480V time-delay fuse provides reliable current-limiting protection with a 100kA interrupt rating, suitable for use by electrical distributors and switchgear suppliers requiring dependable wire and cable safety solutions.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: AG30
- Voltage Rating: 480 VAC
- Amperage Rating: 30 A
- Interrupt Rating: 100 kA
- Fuse Class: Class G
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: GMG
- Dimensions (L x W x H): 1.62 in x 0.41 in x 0.41 in
- Diameter: 0.41 inches
- Product Weight: 0.0170 lbs
Features
- Time-delay fuse above 5A rating for transient current tolerance
- Current-limiting design enhances circuit protection
- Fiberglass body provides dimensional stability in industrial environments
- Four unique physical sizes prevent interchangeability with other fuse classes
- UL listed to standard 248-5 and CSA certified to standard C22.2 No. 248.5
