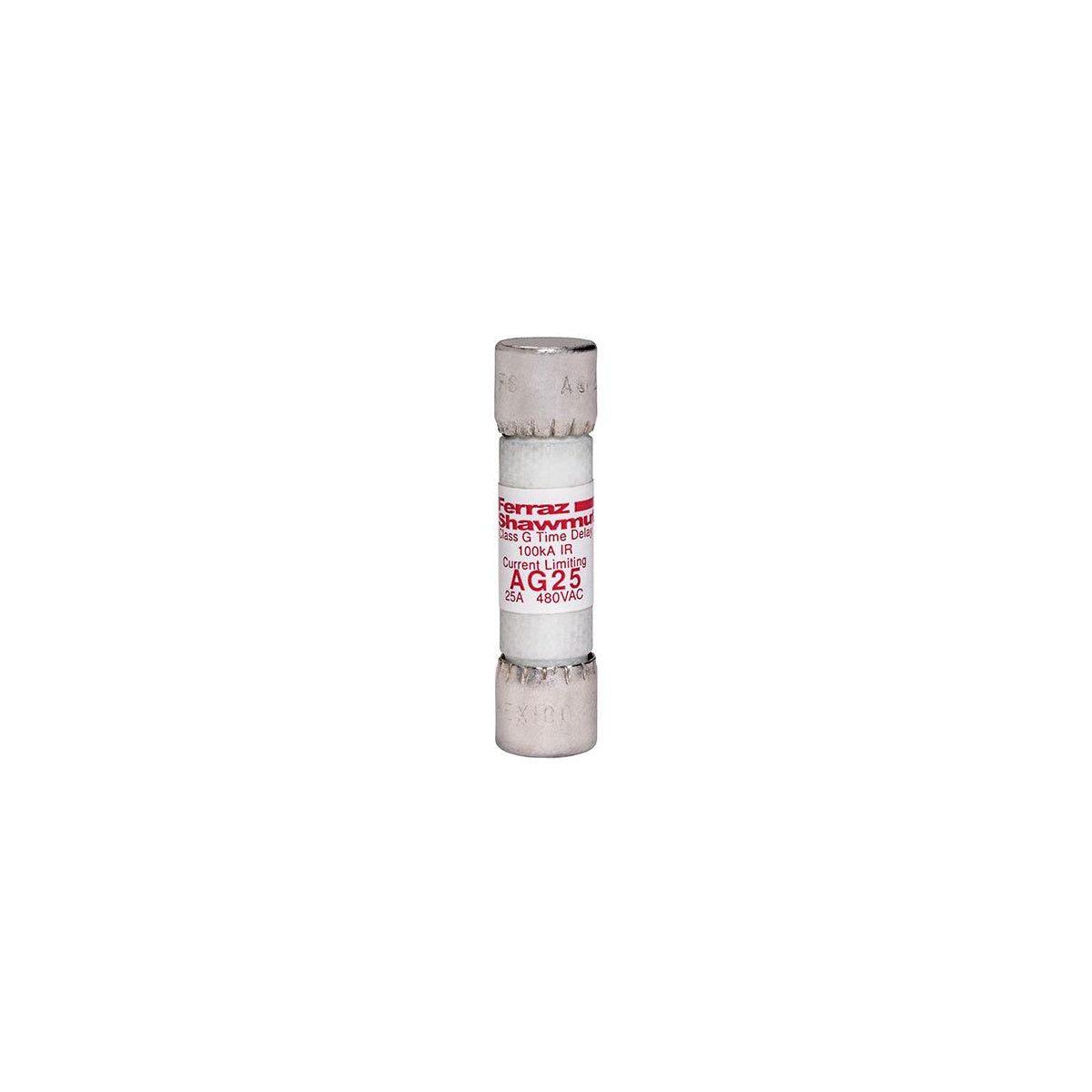

Fuse Amp-Trap® 480V 25A Time-Delay Class G AG Series
SKU: #195378
Part: #AG25
UPC: 782001905163

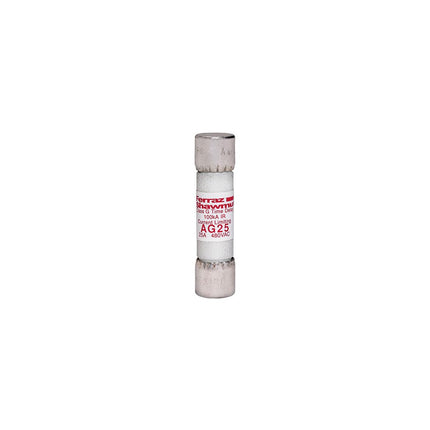

Fuse Amp-Trap® 480V 25A Time-Delay Class G AG Series
SKU: #195378
Part: #AG25
UPC: 782001905163
Description
Fuse Amp-Trap® 480V 25A Time-Delay Class G AG Series
The Mersen Amp-Trap AG fuse series is a UL Listed Class G time-delay fuse designed for branch-circuit protection in lighting, heating, and appliance applications. This 25A fuse operates at 480VAC and features a current-limiting design suitable for industrial electrical distributors and lighting solutions. Its construction includes a fiberglass body for dimensional stability in harsh environments, making it a reliable component for wire and cable protection and switchgear systems.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: AG25
- Fuse Class: Class G
- Amperage Rating: 25 A
- Voltage Rating: 480 VAC
- Interrupt Rating: 100 kA
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: GMG
- Dimensions: Length 1.62 in, Diameter 0.41 in, Width 0.41 in, Height 0.41 in
- Product Weight: 0.0170 lbs
Features
- Time-delay protection for currents above 5A
- Current-limiting design reduces damage during fault conditions
- Fiberglass body provides dimensional stability in industrial settings
- Four physical sizes prevent interchangeability with other fuse classes
- UL listed to standard 248-5 and CSA certified to C22.2 No. 248.5
