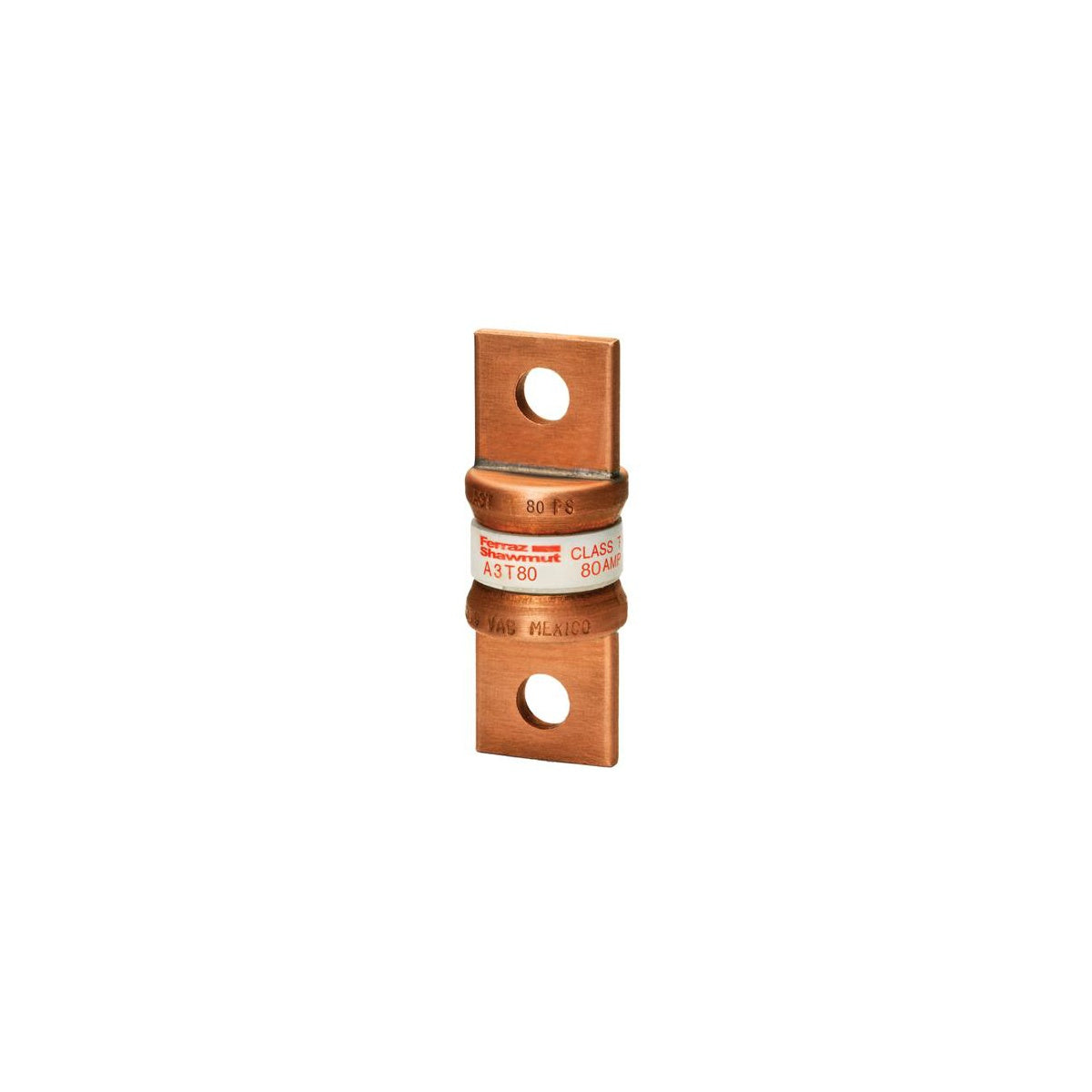

Fuse Amp-Trap® 300V 80A Fast-Acting Class T A3T Series
SKU: #194449
Part: #A3T80
UPC: 782001890162
Fuse Amp-Trap® 300V 80A Fast-Acting Class T A3T Series
SKU: #194449
Part: #A3T80
UPC: 782001890162
Description
Fuse Amp-Trap® 300V 80A Fast-Acting Class T A3T Series Fuse
The Fuse Amp-Trap® 300V 80A Fast-Acting Class T A3T Series is designed for precise overcurrent protection in electrical distribution systems. It is suitable for use in load centers, panelboards, switchboards, circuit breakers, and metering centers. This fuse offers high current-limitation and compact size, making it ideal for applications requiring reliable protection with space constraints. Electrical distributors and switchgear suppliers will find it compatible with systems demanding fast-acting fuse performance and superior dimensional stability.
Specifications
- Amperage Rating: 80 A
- Interrupt Rating: 200 kA
- Voltage Rating: 300 V
- Class: Class T
- Fuse Class: Class T
- Connection: Blade
- Mounting Type: Bolted
- Dimensions (L x W x H): 2.16 in x 0.81 in x 0.81 in
- Diameter: 0.81 inches
- Product Weight: 0.0750 lbs
- Insulation Material: GMG (Glass Melamine)
- Manufacturer Part #: A3T80
- Manufacturer: Mersen
Features
- Fast-acting A3T Class T fuse for rapid overcurrent interruption
- High current-limitation capability reduces damage during fault conditions
- Compact size prevents substitution with lower voltage or current-limiting fuses
- Glass melamine body ensures superior dimensional stability
- Catalog numbers permanently stamped on blades for clear identification
