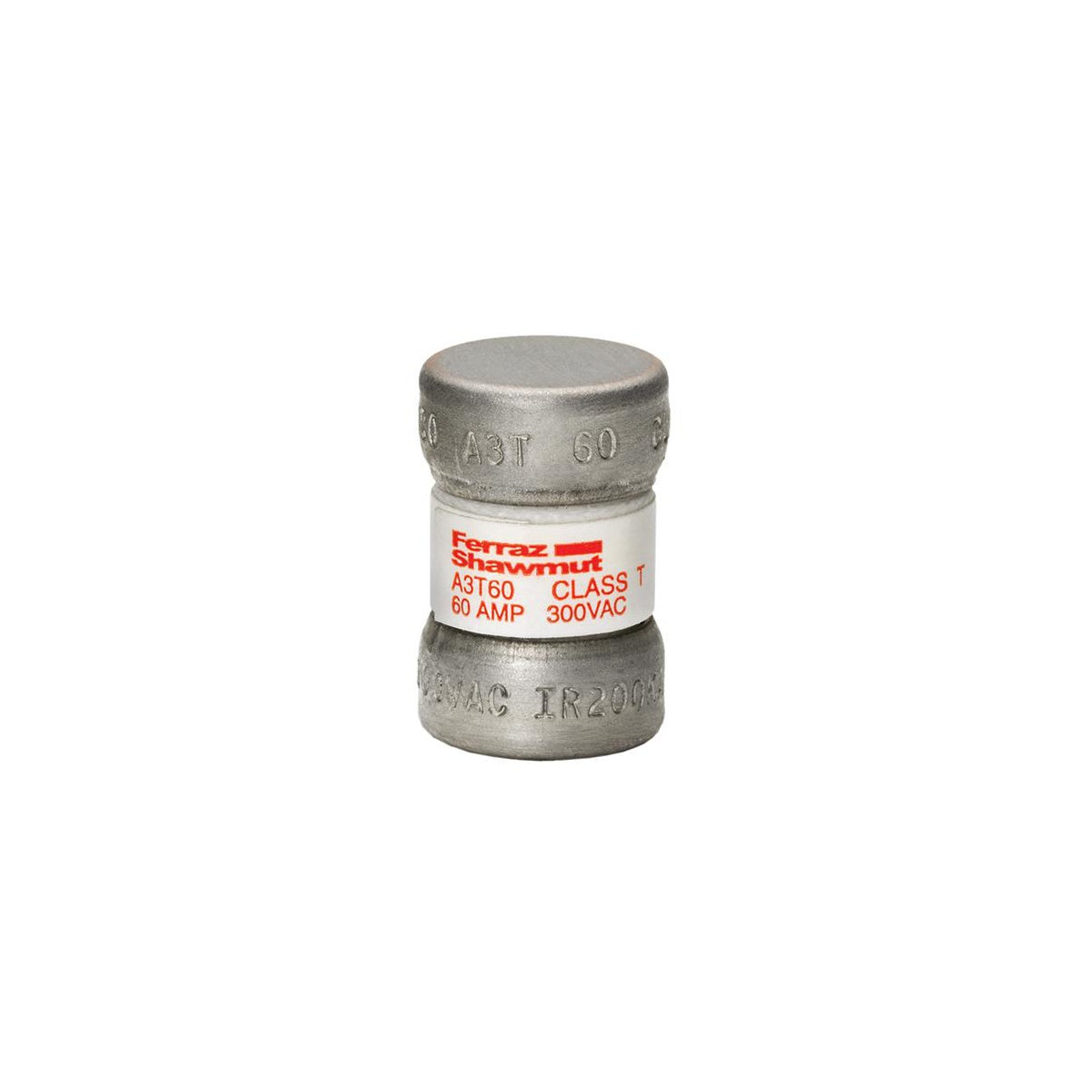

Fuse Amp-Trap® 300V 60A Fast-Acting Class T A3T Series Fuse

The Fuse Amp-Trap® 300V 60A Fast-Acting Class T A3T Series is designed for use in load centers, panelboards, switchboards, circuit breakers, and metering centers. This fuse provides high current-limitation in a compact size, making it suitable for electrical distributors and switchgear suppliers seeking reliable protection in lighting solutions and wire and cable applications.

Specifications

• Amperage Rating: 60 A
• Voltage Rating: 300 V
• Interrupt Rating: 200 kA
• Class: Class T
• Fuse Class: Class T
• Dimensions (L x W x H): 0.88 in x 0.56 in x 0.56 in
• Diameter: 0.56 inches
• Weight: 0.0200 lbs
• Connection: Ferrule
• Mounting Type: Clip
• Insulation Material: Glass Melamine (GMG)
• Manufacturer Part #: A3T60
• UPC: 782001890148

Features

• Fast-acting fuse with high current-limitation capability
• Compact physical size to prevent substitution with lower rated fuses
• Glass melamine body ensures superior dimensional stability
• Catalog numbers permanently stamped on blades for easy identification
• Designed to meet the requirements of electrical distributors and switchgear suppliers
