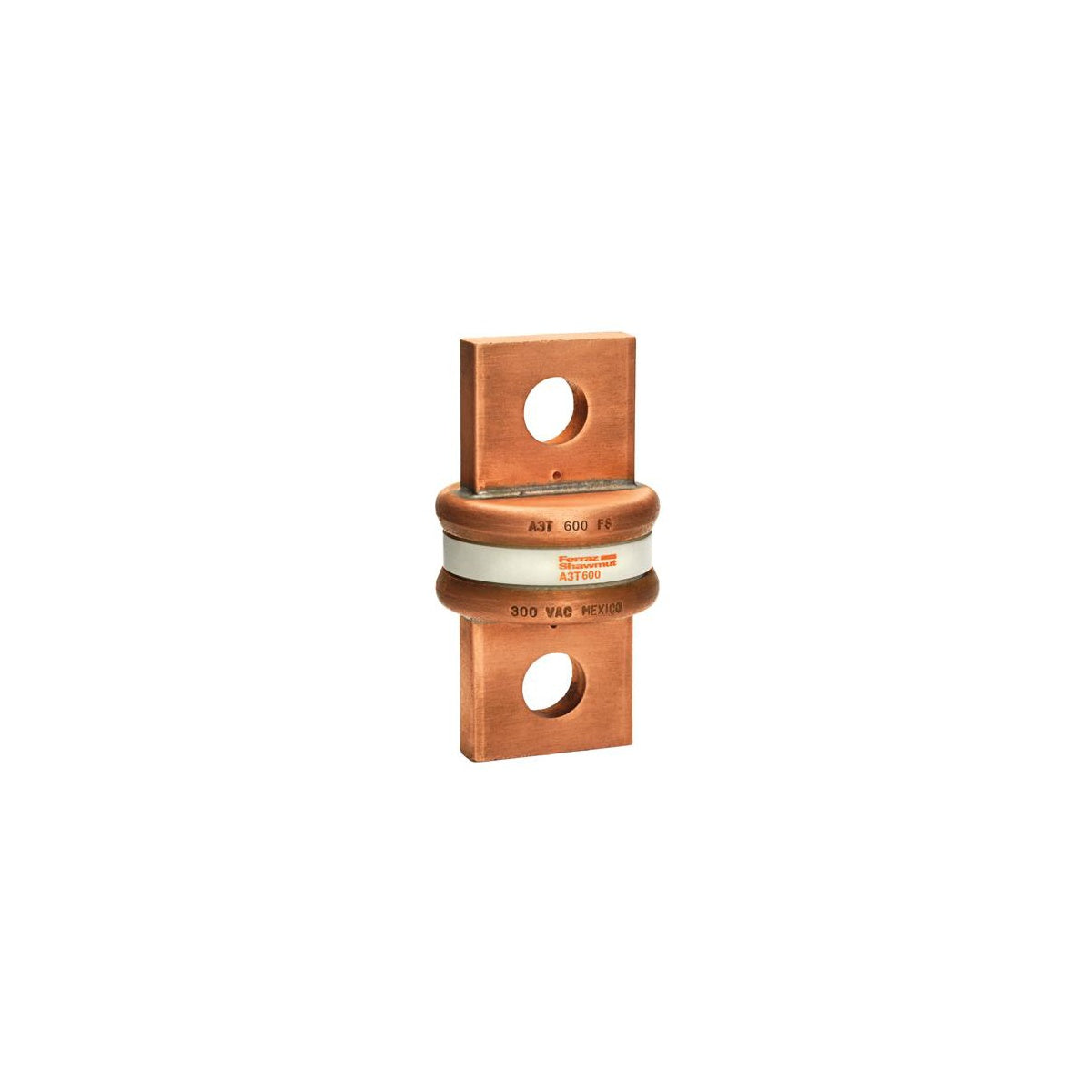

Fuse Amp-Trap® 300V 600A Fast-Acting Class T A3T Series Fuse

This fast-acting Class T fuse is designed for electrical distributors and switchgear suppliers requiring high current-limitation and compact fuse solutions. It is suitable for use in load centers, panelboards, switchboards, circuit breakers, and metering centers, providing reliable protection in wire and cable applications within lighting solutions and electrical distribution systems.

Specifications

• Amperage Rating: 600 A
• Voltage Rating: 300 V
• Interrupt Rating: 200 kA
• Fuse Class: Class T
• Mounting Type: Bolted
• Connection: Blade
• Dimensions (L x W x H): 3.06 in x 1.62 in x 1.62 in
• Product Weight: 0.4460 lb
• Insulation Material: GMG (Glass Melamine)
• Manufacturer Part #: A3T600

Features

• Fast-acting fuse with high current-limitation for enhanced circuit protection
• Compact physical size prevents substitution with lower voltage or current-limiting fuses
• Glass melamine body ensures superior dimensional stability
• Catalog numbers permanently stamped on blades for clear identification
