Description

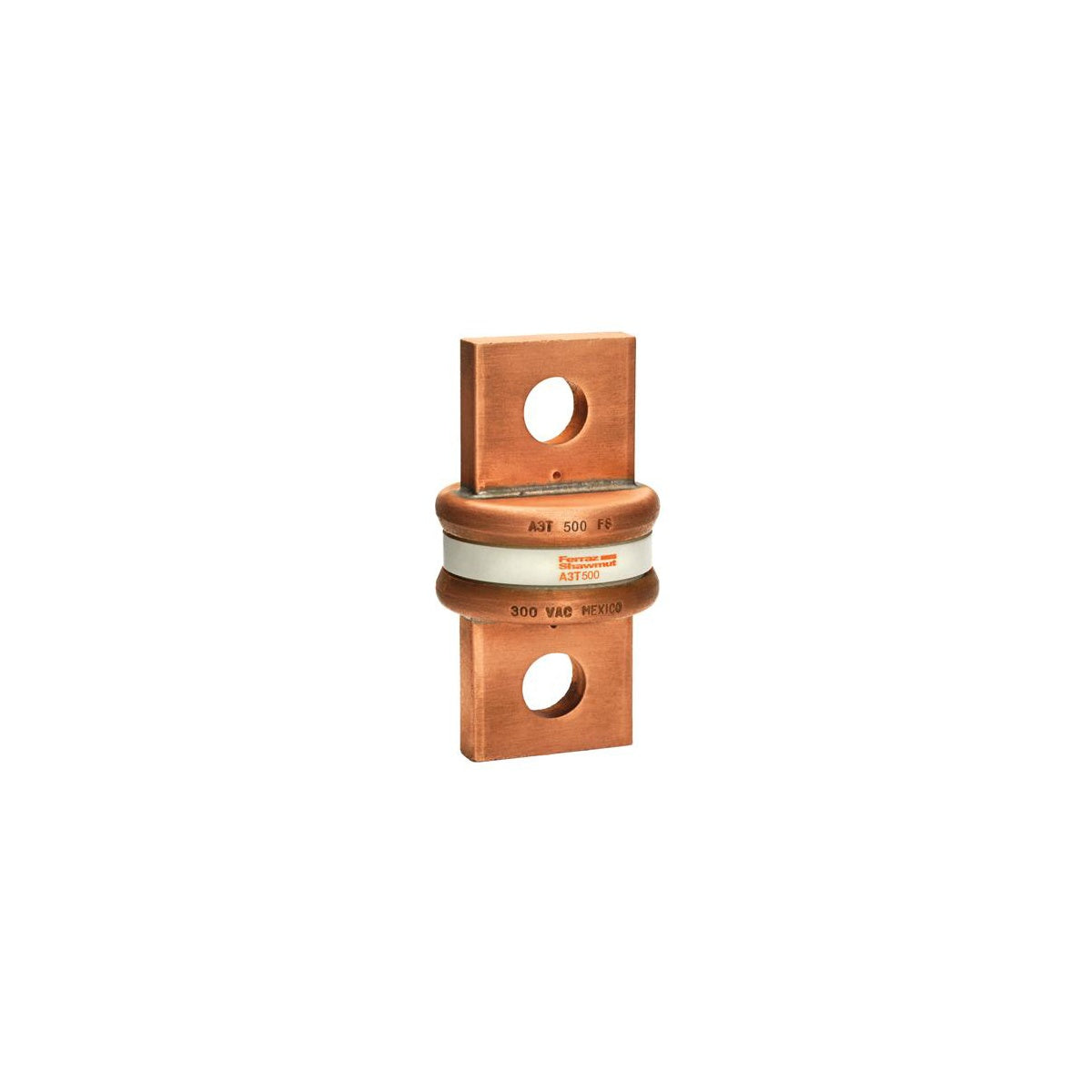

Fuse Amp-Trap® 300V 500A Fast-Acting Class T A3T Series Fuse
The Fuse Amp-Trap® 300V 500A Fast-Acting Class T A3T Series fuse is designed for electrical distributors and switchgear suppliers requiring reliable overcurrent protection in load centers, panelboards, switchboards, circuit breakers, and metering centers. This fuse combines high current-limitation with a compact size, ensuring safety and efficiency in electrical distribution and lighting solutions.
Specifications
- Amperage Rating: 500 A
- Interrupt Rating: 200 kA
- Voltage Rating: 300 V
- Fuse Class: Class T
- Connection: Blade
- Mounting Type: Bolted
- Dimensions (L x W x H): 3.06 in x 1.62 in x 1.62 in
- Product Weight: 0.4460 lbs
- Insulation Material: Glass Melamine (GMG)
- Manufacturer Part Number: A3T500
Features
- Fast-acting fuse design for rapid response to overcurrent conditions
- High current-limitation reduces damage to electrical equipment
- Small physical size prevents substitution with lower-rated fuses
- Glass melamine body provides superior dimensional stability
- Catalog numbers stamped into blades for permanent identification
