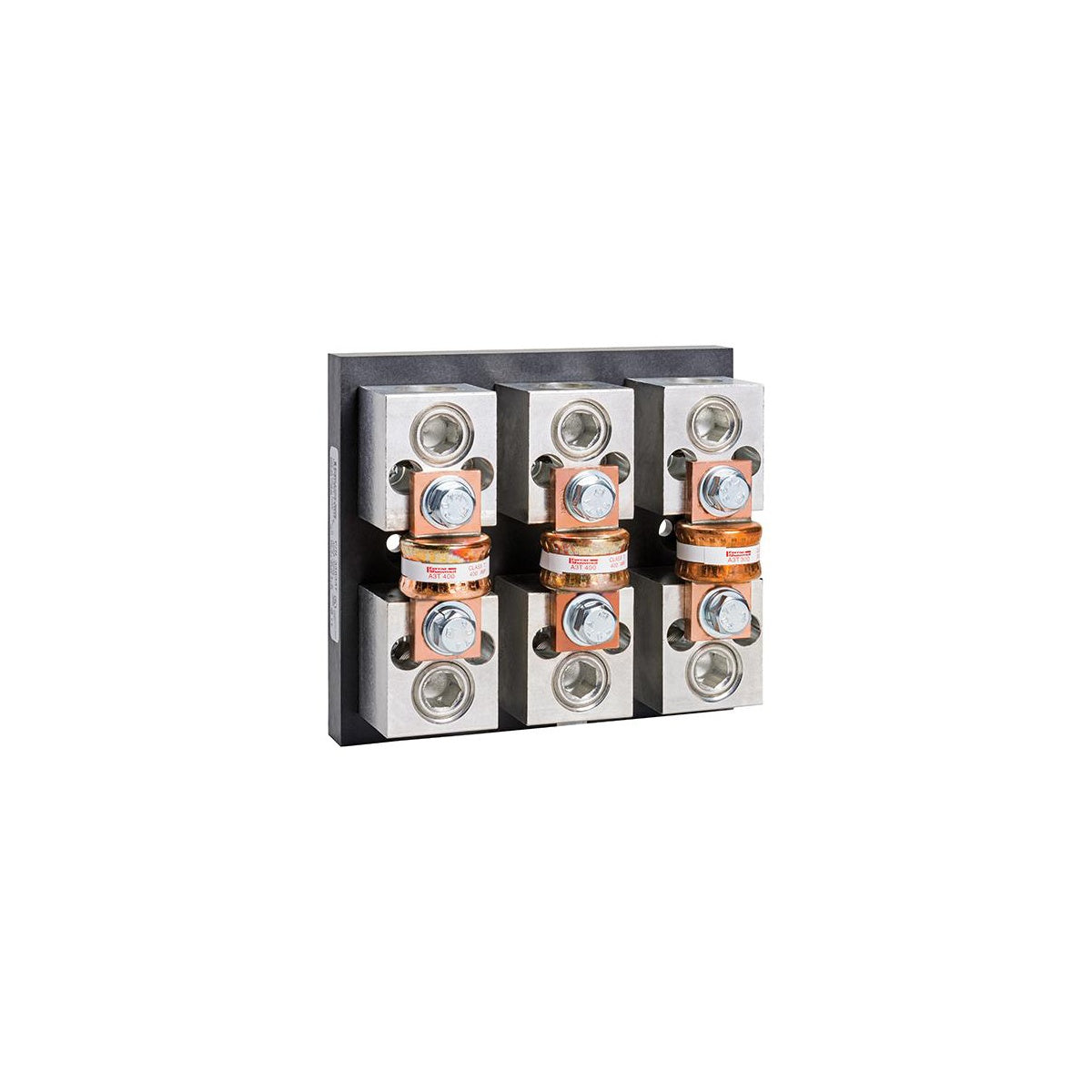

Fuse Amp-Trap® 300V 300A Fast-Acting Class T A3T Series Fuse

The Fuse Amp-Trap® 300V 300A Fast-Acting Class T A3T Series is designed for electrical distributors and switchgear suppliers requiring high-performance fuses for load centers, panelboards, switchboards, circuit breakers, and metering centers. It provides fast-acting protection with high current-limitation in a compact size, ensuring reliable circuit protection in various lighting solutions and wire and cable applications.

Specifications

• Amperage Rating: 300 A
• Interrupt Rating: 200 kA
• Voltage Rating: 300 V
• Fuse Class: Class T
• Connection: Blade
• Mounting Type: Bolted
• Dimensions (L x W x H): 2.75 in x 1.33 in x 1.33 in
• Product Weight: 0.2720 lbs
• Insulation Material: GMG (Glass Melamine)
• Manufacturer Part #: A3T300

Features

• Fast-acting A3T Class T fuse with high current-limitation
• Compact physical size prevents substitution with lower voltage or current-limiting fuses
• Glass melamine body ensures superior dimensional stability
• Catalog numbers permanently stamped on blades for easy identification
