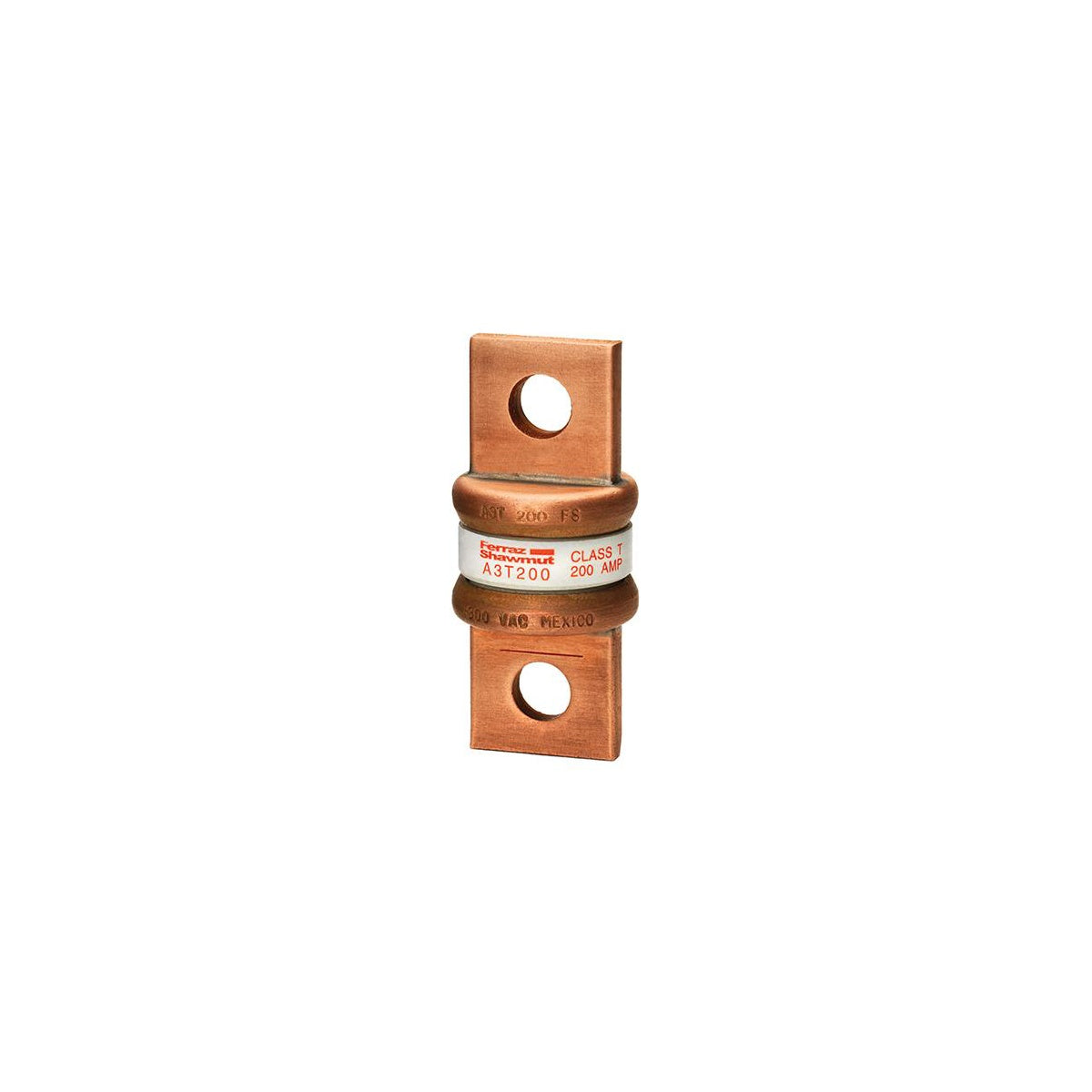

Fuse Amp-Trap® 300V 200A Fast-Acting Class T A3T Series
SKU: #194382
Part: #A3T200
UPC: 782001890230
Fuse Amp-Trap® 300V 200A Fast-Acting Class T A3T Series
SKU: #194382
Part: #A3T200
UPC: 782001890230
Description
Fuse Amp-Trap® 300V 200A Fast-Acting Class T A3T Series Fuse
The Fuse Amp-Trap® 300V 200A Fast-Acting Class T A3T Series is designed for high current-limitation in compact form, suitable for use in load centers, panelboards, switchboards, circuit breakers, and metering centers. This fuse provides reliable protection in electrical distribution and lighting solutions, making it an essential component for electrical distributors and switchgear suppliers managing wire and cable systems.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: A3T200
- Fuse Class: Class T
- Amperage Rating: 200 A
- Interrupt Rating: 200 kA
- Voltage Rating: 300 V
- Dimensions (L x W x H): 2.44 in x 1.06 in x 1.06 in
- Diameter: 1.06 inches
- Mounting Type: Bolted
- Connection Type: Blade
- Insulation Material: GMG (Glass Melamine)
- Product Weight: 0.1610 lbs
Features
- Fast-acting fuse with high current-limitation capability
- Compact physical size prevents substitution with lower-rated fuses
- Glass melamine body ensures superior dimensional stability
- Catalog numbers permanently stamped on blades for easy identification
